Door actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 20, 2005
app pub date -
Jun 8, 2005
filing date -
Jul 31, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

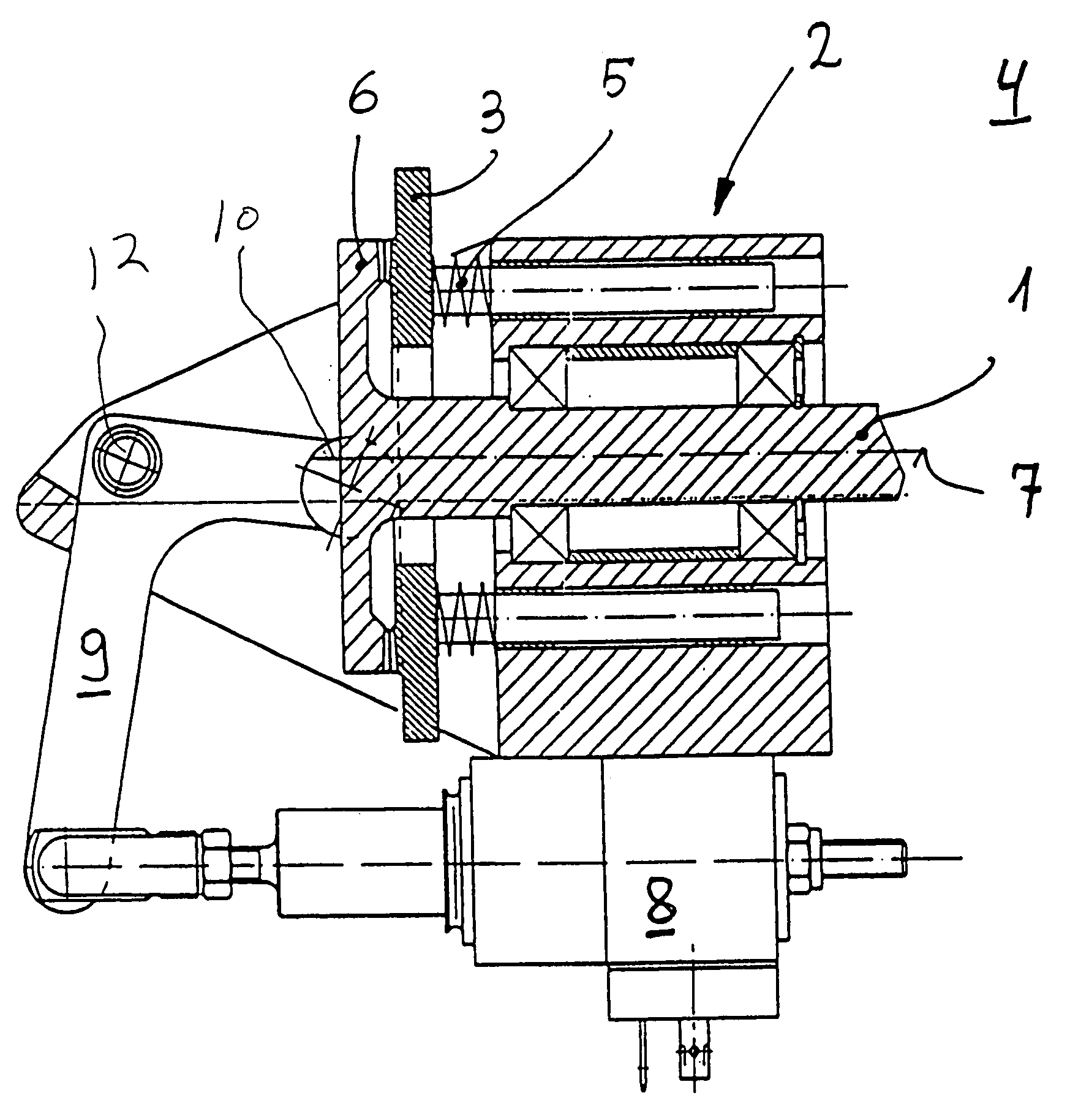

A door actuator, in particular the door lock, for rail vehicles, comprising a spindle drive, the spindle of which is connected to a freewheel, permitting rotation in the direction corresponding to the closing of the door and preventing rotation in the direction corresponding to the opening of the door. The part of the freewheel furthest from the spindle is mounted such as to rotate, but with a releasable fixing relative to a release device, achieved by a coupling which may be released by solenoid. The brake, clutch or similar coupling is or may be fixed in the open position and a closing magnet is provided. In a first version, the coupling, is operated by a bar, and between the released position of the bar and the locked position of the bar there is a dead-point. In a second version, the open position is maintained by a permanent magnet.
First Claim
Other Claims data not available
