Crease and embossing die
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 29, 2005
app pub date -
Mar 16, 2005
filing date -
Mar 16, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

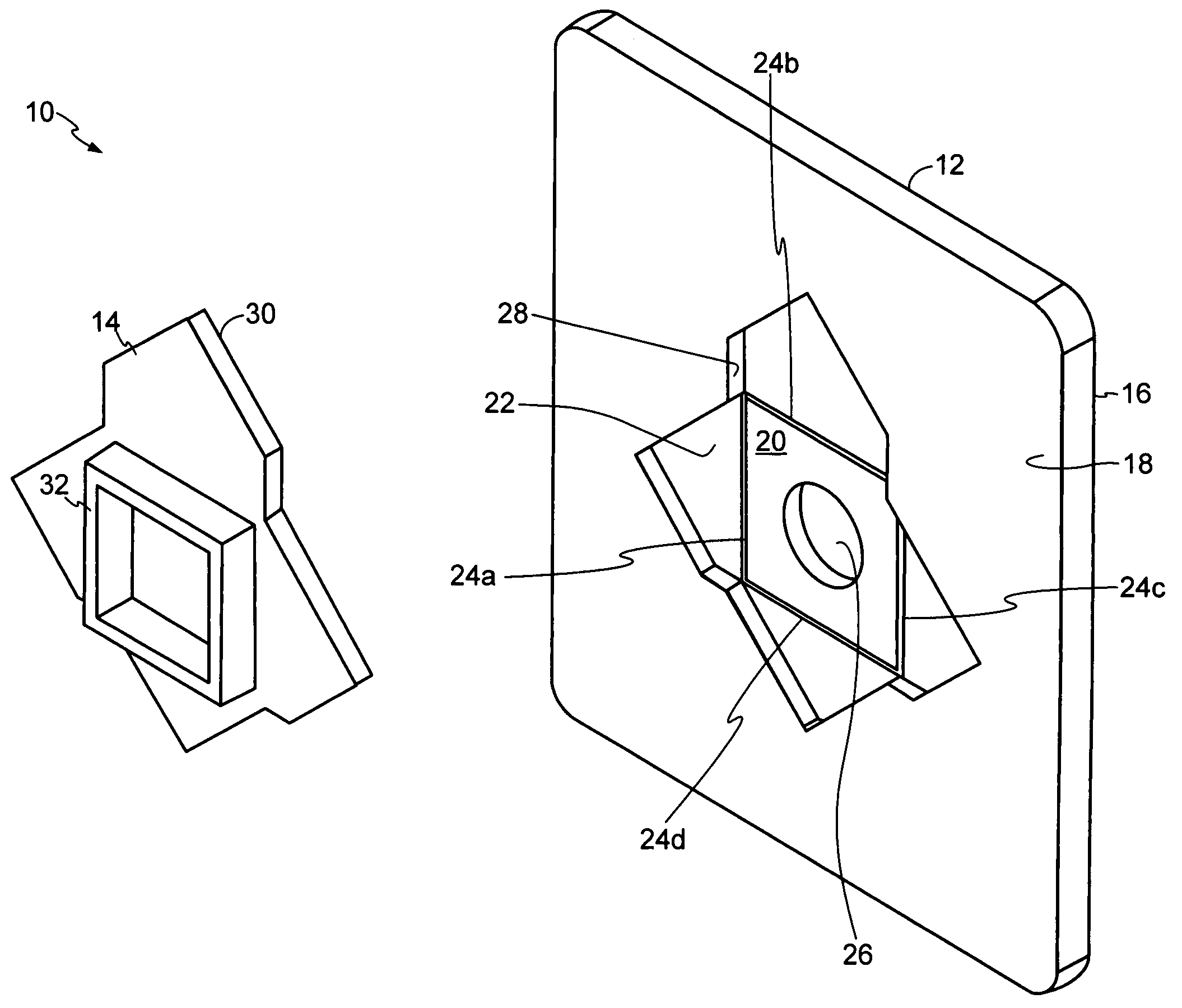

Disclosed herein is an embossing and crease die that includes a base portion having a top surface with a recessed area, the recessed area has a plurality of channels defining a shape. The crease die further includes an insert portion having a body with a bottom surface that is adapted to be inserted into the recessed area of the base portion. The insert further includes a plurality of protrusions that are adapted to be inserted into the plurality of channels. The top surface of the base portion is adapted to provide resistance to the bottom surface of the insert portion when the insert portion is inserted in the recessed area of the base so as to prevent the plurality of protrusions from contacting the plurality of channels so that the insert portion and the base portion do not crush a working medium, such as paper or the like.
First Claim
Other Claims data not available
