Fixed angle swash plate compressor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 22, 2005
app pub date -
Mar 18, 2004
filing date -
Mar 18, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

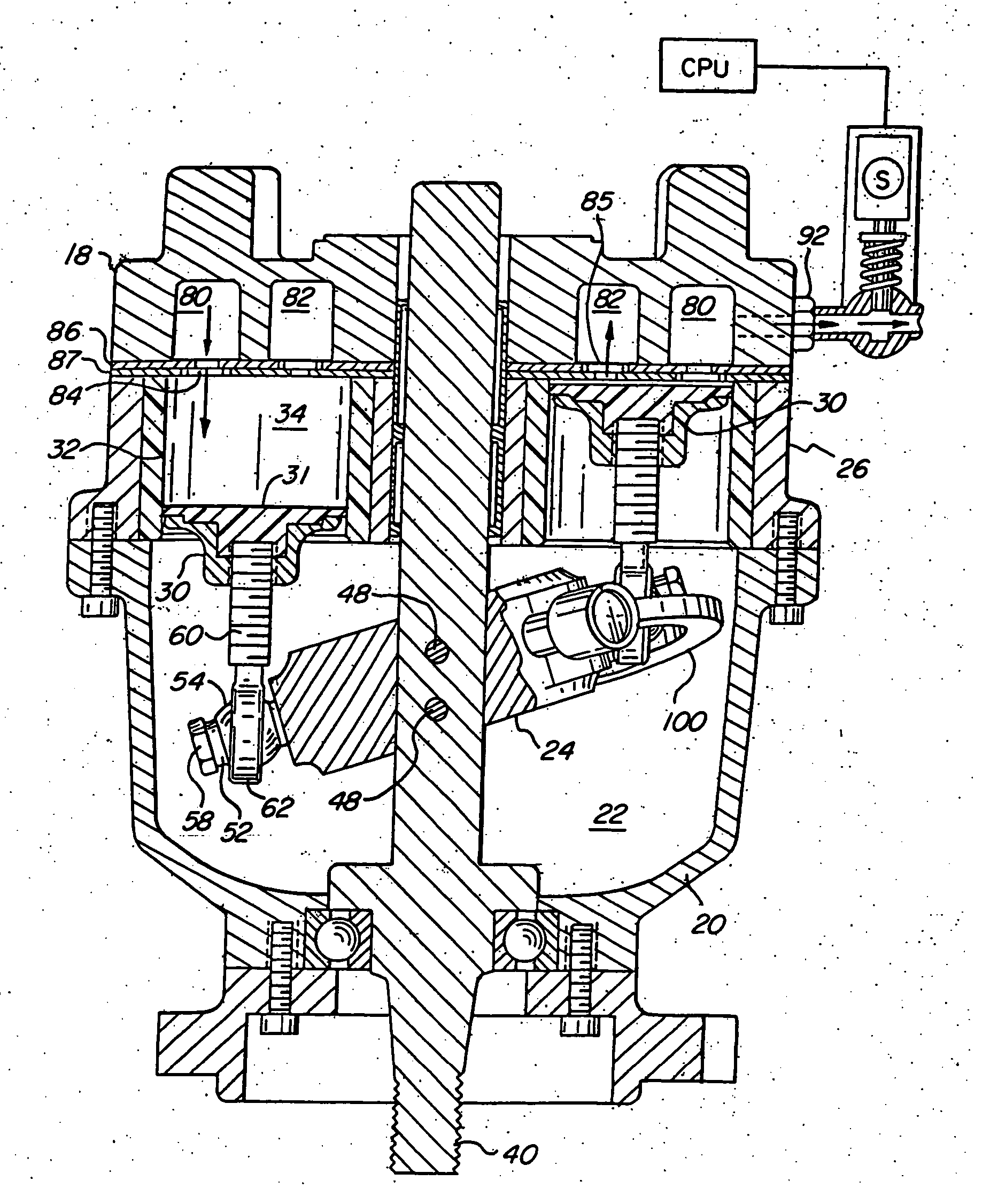

A compressor is disclosed generally comprising a housing, a shaft disposed therein, and a swash plate part that is mounted at a fixed angle relative to the longitudinal axis of the shaft. In some embodiments, the swash plate part is coupled to a second, inner swash plate part via a bearing. In other embodiments, the swash plate part is coupled directly to the shaft via the bearing. The bearing is adapted to accommodate both the radial and axial loads of the compressor in order to eliminate the need for a separate thrust bearing.
First Claim
Other Claims data not available
