Method and a device for transferring a leader in a plant for drying of a web-formed material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 11, 2005
app pub date -
Nov 22, 2004
filing date -
Apr 26, 2001
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

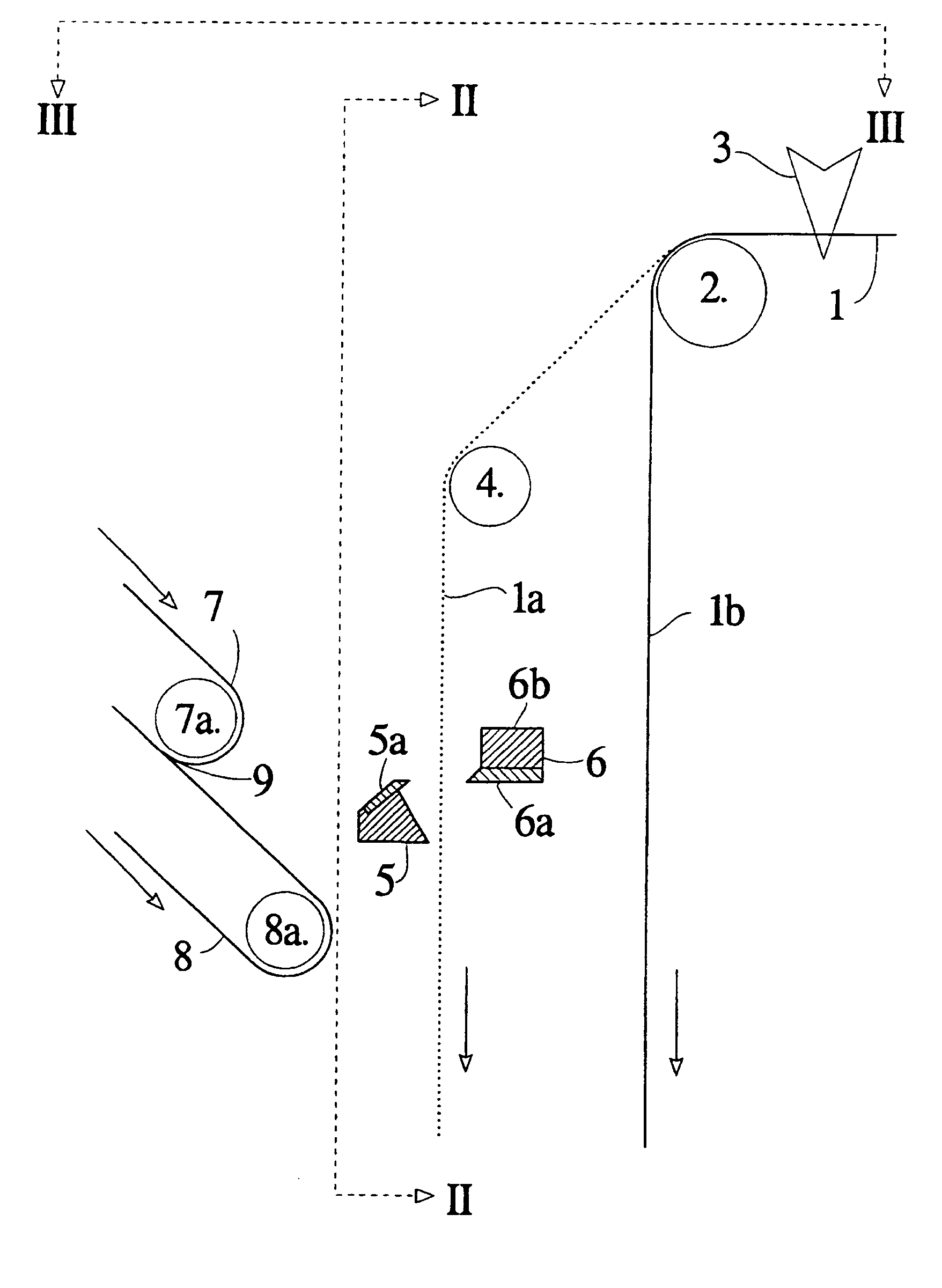

For the purpose of transferring a leader of a web-formed material (1) from a first treatment step to a subsequent second treatment step, the web-formed material (1) is divided by forming a strip (1a) in one edge portion of the web-formed material. The strip (1a) is passed in between two sharp edges (5a,6a) located close to each other, such that the two sharp edges (5a,6a) embrace the strip like a pair of shears. Thereafter, one of the sharp edges (6a) is moved towards the other (5a) so that said one edge (6a) passes said other edge (5a), hence cutting off the strip. With the same movement, the leader is given an impulse, in a direction essentially perpendicular to the strip (1a), towards a leader conveyor (7,8) which intercepts the leader and passes it into the second treatment step.
First Claim
Other Claims data not available
