Blade locking mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 11, 2004
filing date -
Feb 6, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

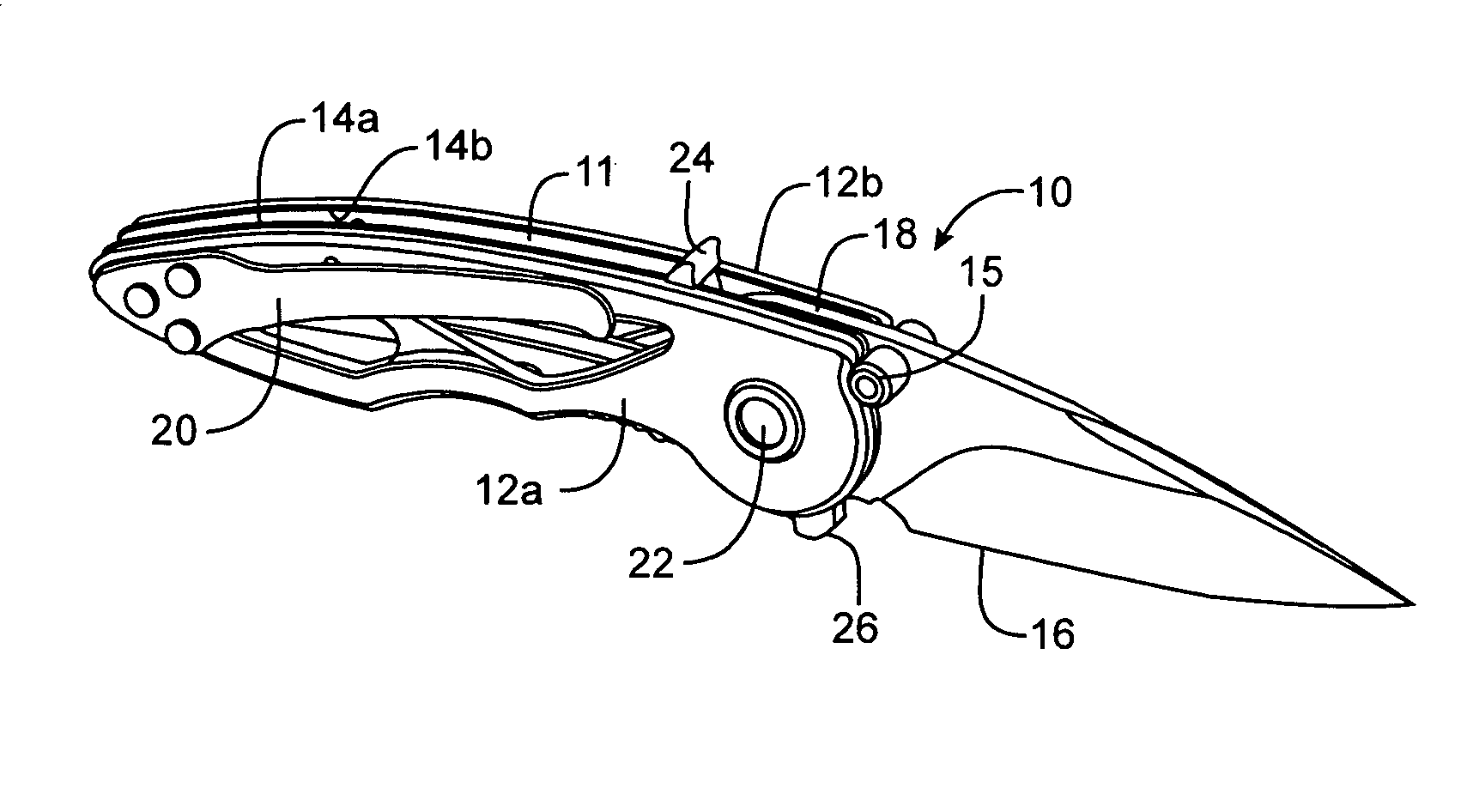

Disclosed is a folding knife that includes a handle with opposing sides, wherein the opposing sides define an opening for housing a blade when the blade is in a folded position. The folding knife further includes a protrusion that extends from one of the handle opposing sides into the opening for housing the blade. A blade is pivotally connected to the housing and the blade has a female portion aligned in the same plane as the blade. The folding knife also includes a locking mechanism that is pivotally connected to the housing for locking the blade in the closed position, the locking mechanism has a male portion for mating with the blade female portion when the blade is in a closed position. The locking mechanism further includes a recess for mating with the protrusion that extends from one of the handle opposing sides when the locking mechanism is in a locked position.
First Claim
Other Claims data not available
