Device for shed formation and Jacquard loom comprising same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 28, 2006
Grant Date -
Jul 14, 2005
app pub date -
Feb 6, 2003
filing date -
Feb 7, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

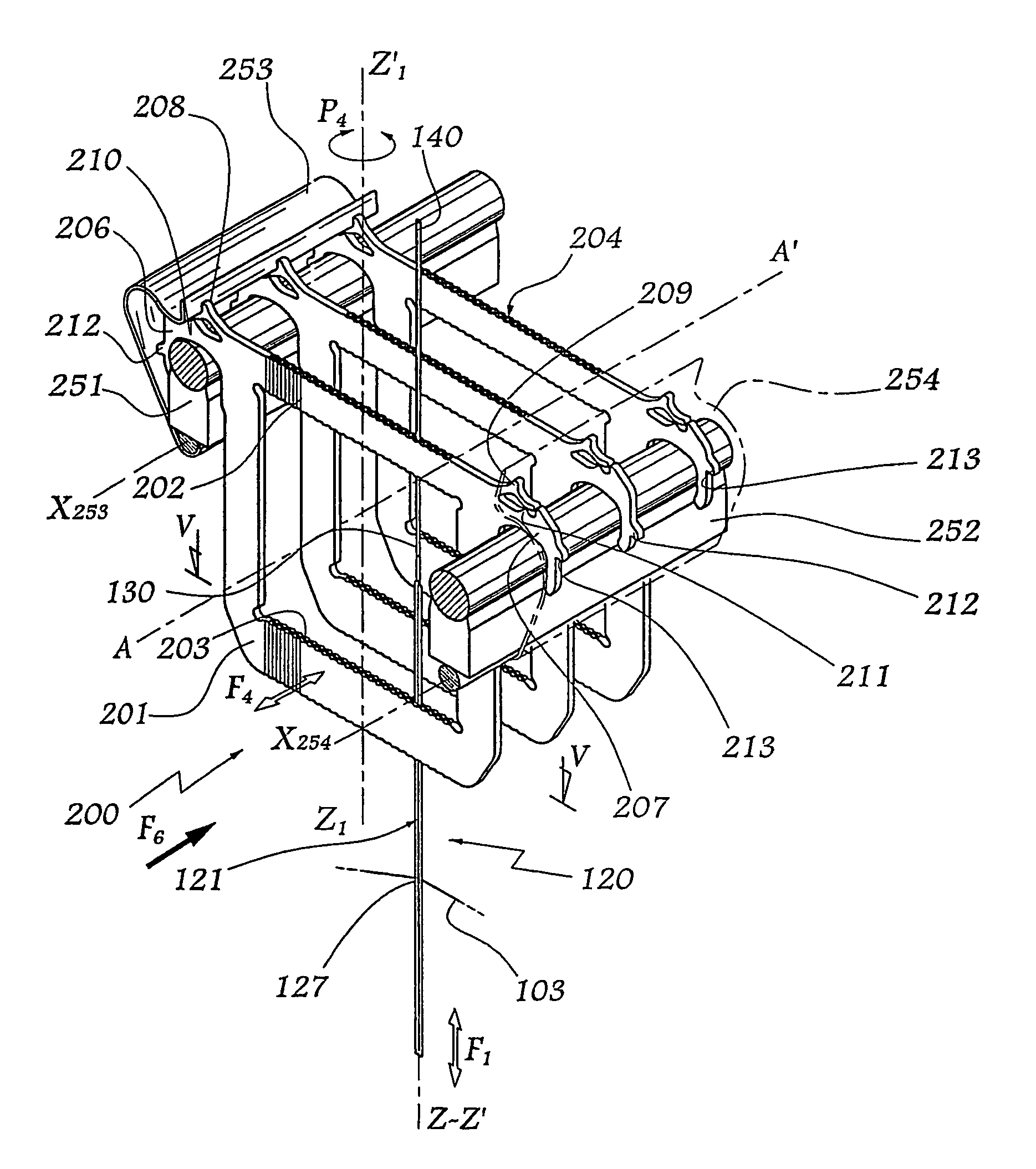

The invention concerns a device comprising rigid or semirigid shafts (120) and at least a member (200) provided with orifices (203) for the passage and direct guiding in translation and angular positioning of a shaft in its controlled rocking movements (F1). Said member (200) is mobile, with two degrees of freedom relative to the loom frame, in translation (F4), along a direction globally parallel to the direction (A-A′) of the weft yarns, and in rotation (P4), about an axis (Z1Z′1) globally parallel to the translational direction (A-A′) of the shafts. Said member (200) can be positioned (F4, P4) by the warp yarns (103) which pass through the eyelets (127) of the shafts (120) which it guides.
First Claim
Other Claims data not available
