Device located on scrap shears or similar for reducing the frictional forces that occur as a result of the action of the material to be crushed on the closing motion
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 14, 2005
app pub date -
Jun 21, 2004
filing date -
Sep 18, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

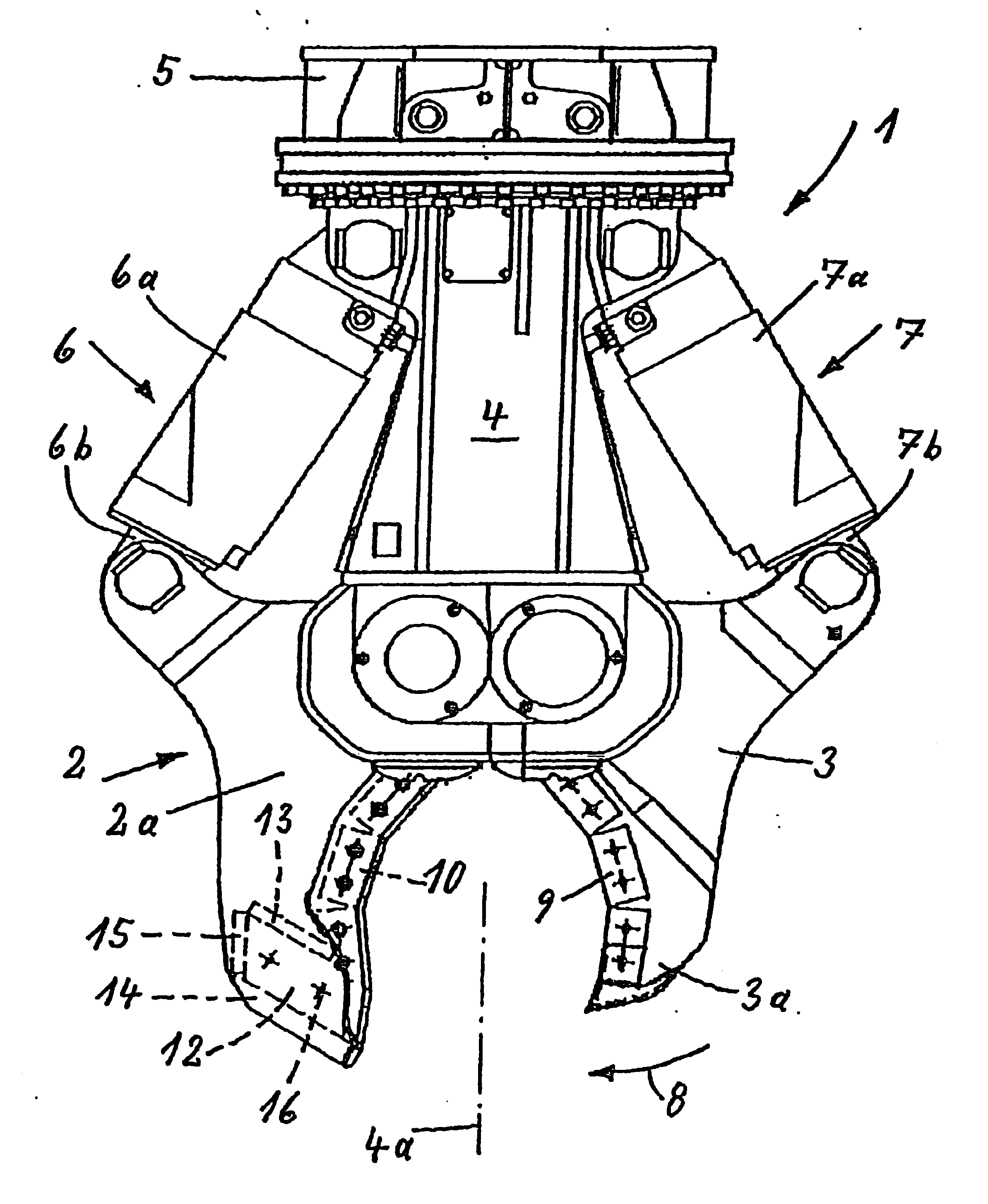

The invention relates to scrap shears (1) comprising several jaw arms (2a, 2b, 3), which can execute a pivoting motion in relation to one another in a closing or opening direction of the scrap shears. At least one jaw arm is equipped with a counter-bearing element (12) on the end section lying opposite the mounting (4), said element being displaced, (at least temporarily), in relation to the jaw arm carrying said element between a working position and a reduced friction position. The counter-bearing (12) is configured in such a way that the distance between its external surface (12b), which faces away from the carrying jaw arm and the mating surface (3b) of the neighbouring jaw arm (3), which faces towards said external surface, increases with the relative displacement of the counter-bearing element towards the reduced friction position.
First Claim
Other Claims data not available
