Fabric membrane texture and manufacturing method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 30, 2005
app pub date -
Jul 9, 2004
filing date -
Dec 26, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

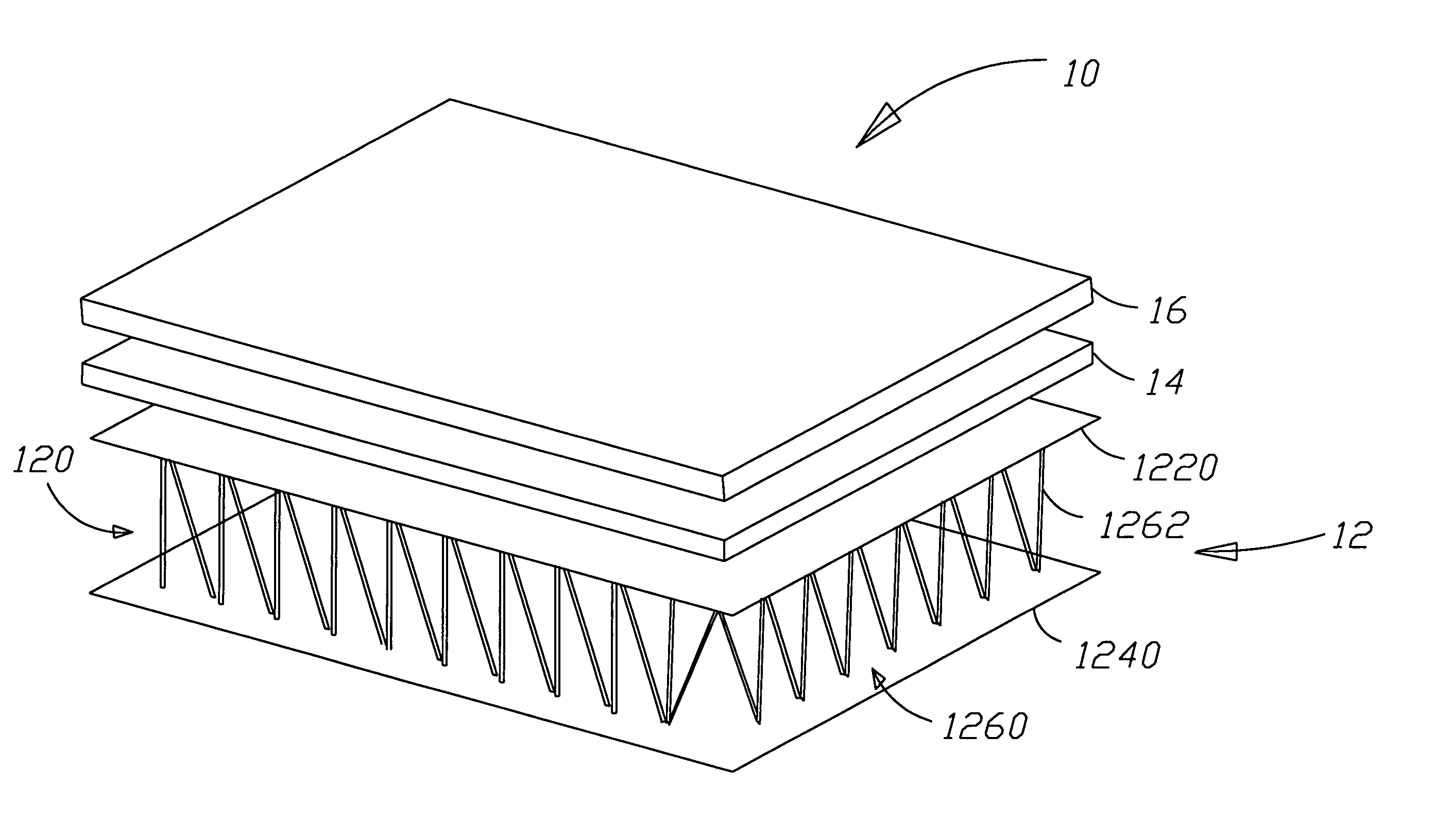

A fabric membrane texture and manufacturing method thereof explores a texture of fabric membrane comprising of 3D fabric. An upper and a lower fiber texture layers of the 3D fabric membrane are stretched to build up an air sandwich through plural middle connecting fibers. The 3D fabric enables to execute the functions of anti-bump, thermal insulating, thermal conductivity, air permeability and elastic strength. Additionally, a polymer membrane is used to adhere to at least one of the 3D fabric to build up a better function of shielding, insulating, or the capacity of ambiance impedance. Besides, this polymer membrane adheres to the 3D fabric using the process of low-pressure fixation that is applied to the product enables to obtain the better distance of spacer.
First Claim
Other Claims data not available
