Marine craft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 24, 2007
Grant Date -
Jun 30, 2005
app pub date -
Mar 21, 2003
filing date -
Mar 26, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

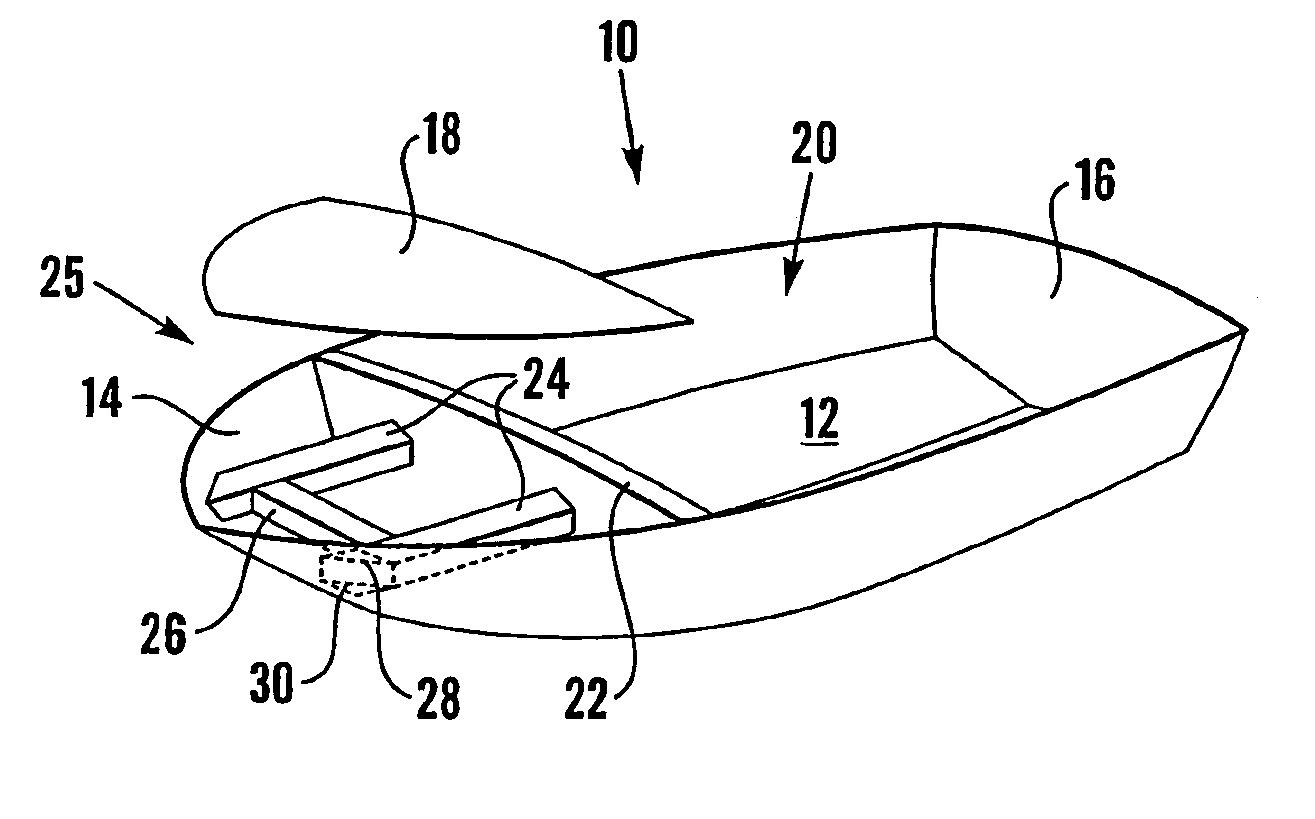

Marine craft has a crushable frontal impact protection structure, comprising transverse bulkhead protecting passenger area; longitudinal crushable tubes; and transverse member. Webs and strengthen tubes, which may be made of extruded, heat treated aluminum; stainless steel; or plastic. Tubes in FIGS. 5 to 7 are splayed, to improve protection against angled impacts C. The forward ends of tubes are tapered, (FIG. 3) to initiate deformation. Tubes may be hexagonal, round, or oval in cross-section. FIG. 8 shows longitudinal bulkheads, and transverse bulkhead in place of tubes. FIG. 9 shows longitudinal corrugated sheets; these may be mounted transversely. FIG. 10 shows how area filled with deformable cellular foam, to act as a buoyancy aid if hull is breached. Side and roar impact protection is also disclosed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| GB | B | GB2386866 | Mar 26, 2002 |
| IT | A1 | ITMI20030548 | Mar 20, 2003 |
| WO | A1 | WO2003080428 | Mar 21, 2003 |
| AU | A1 | AU2003216845 | Mar 21, 2003 |
| FR | B1 | FR2838706 | Mar 26, 2003 |
International Classification(s)
- 2003 Application Filing Year
- B63B Class
- 421 Applications Filed
- 151 Patents Issued To-Date
- 35.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B63B Class
- 4.41 % this patent is cited more than
- 18 Age
