Steel cord having ultrafine steel filaments to reinforce tire carcass and radial tire for passenger car using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 23, 2005
app pub date -
Dec 15, 2004
filing date -
Dec 23, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

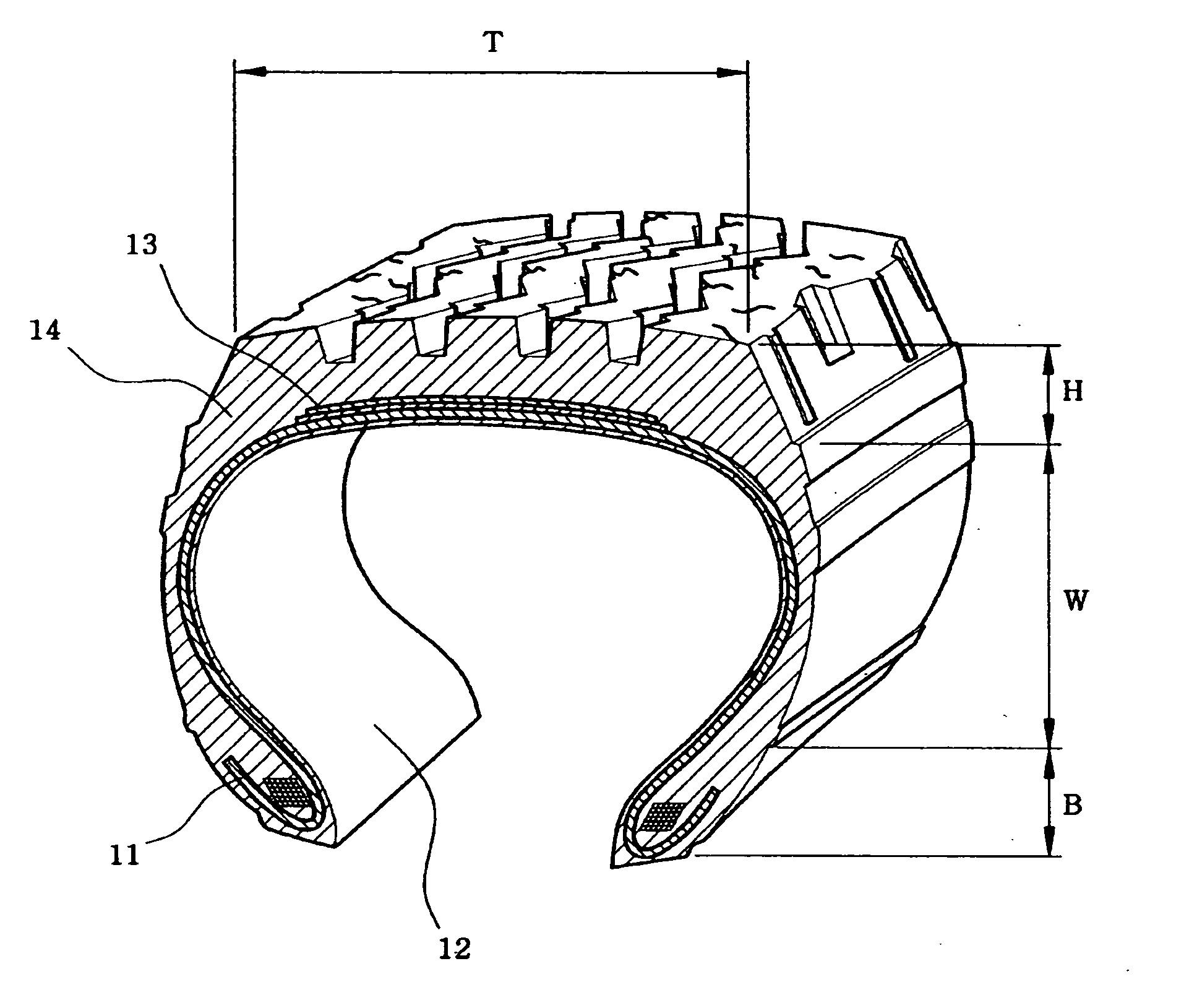

The object of this invention is to provide a steel cord, which has ultrafine steel filaments with a diameter of 0.04-0.14 mm stranded with each other so as to reinforce a tire carcass, and a radial tire for a passenger car using the same. The steel cord includes one core filament with a diameter of 0.04-0.14 mm and 4-7 sheath filaments, each having a diameter of 0.04-0.14 mm, spirally stranded around the core filament. At this time, the steel cord has a diameter of 0.2-0.5 mm and shear strength of 25-35 kgf. Additionally, each of the sheath filaments has a smaller diameter than the core filament, and the core filament and the sheath filaments are made of the steel filaments. The radial tire includes the tire carcass provided with the steel cord and a topping sheet, and the steel cord is embedded in the topping sheet such that a rubber gauge ratio is 200-500% and a rubber clearance ratio is 60-250%. The steel cord has improved physical properties, such as shear strength and durability, to reduce a thickness of a carcass including the steel cord, leading to the reduction of a weight of the radial tire. Furthermore, controlling stability and durability of the radial tire are improved, thereby reducing costs of maintenance of the passenger car.
First Claim
Other Claims data not available
