Laser ablation resistant copper foil
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 11, 2004
filing date -
Dec 5, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

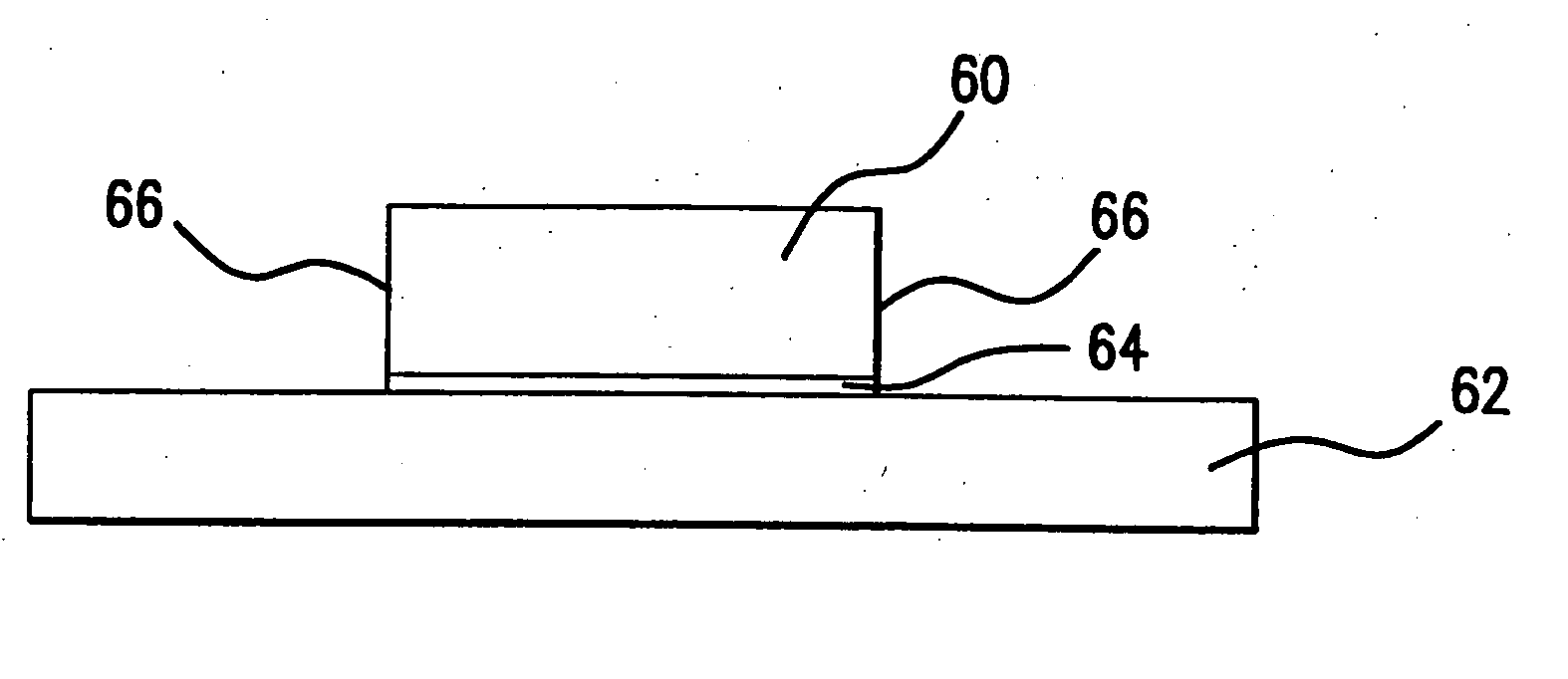

A copper foil for lamination to a dielectric substrate iscoated with a laser ablation inhibiting layer having an average surface roughness of less than 0.7 micron and an average nodule height of less than 0.75 micron that is effective to provide a lamination peel strength to FR-4 of at least 4.5 pounds per inch. The foil is typically laminated to a dielectric substrate, such as glass reinforced epoxy or polyimide and imaged into a plurality of circuit traces. Blind vias may be drilled through the dielectric terminating at an interface between the foil and the dielectric. The coated foil of the invention resists laser ablation, thereby resisting piercing of the foil by the laser during drilling.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B32B Class
- 3.33 % this patent is cited more than
- 20 Age
