Hand crank assembly for a reel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 28, 2005
app pub date -
Oct 12, 2004
filing date -
Oct 9, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

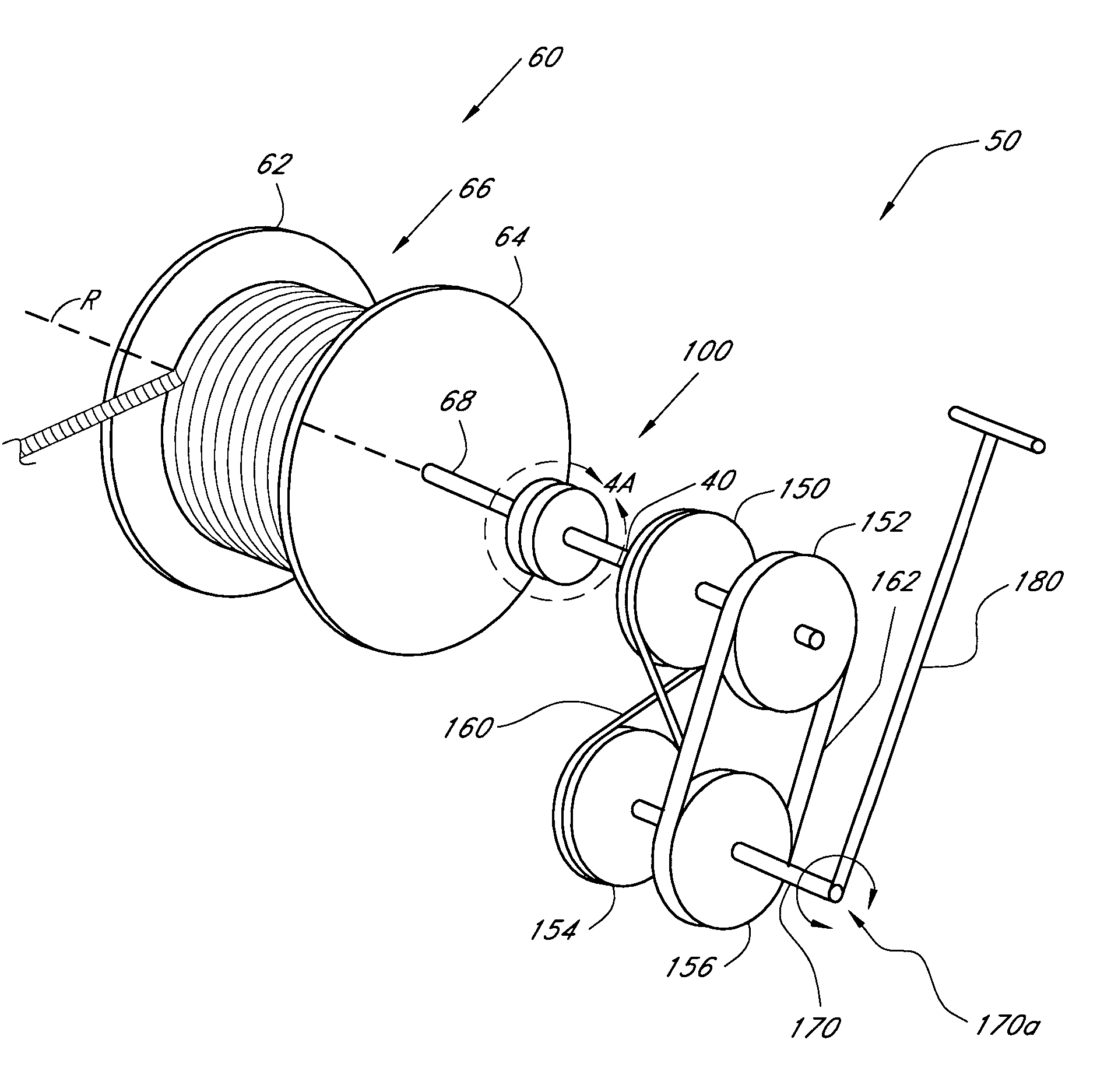

A hand crank assembly system for spooling linear material onto a reel includes a reel drum onto which the linear material can be spooled and a lever pivotable about an axis. A torque transfer mechanism of the system has an engagement clutch that engages and transfers a torque when it is operated in a first rotational direction, but that does not operate nor transfer a torque when it is operated in a second rotational direction opposite the first rotational direction. The torque transfer mechanism converts the pivoting of the lever into the rotation of the reel drum in the first rotational direction regardless of the direction in which the lever is pivoted.
First Claim
Other Claims data not available
