Industrial robot
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 2, 2004
app pub date -
Feb 26, 2004
filing date -
Feb 27, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

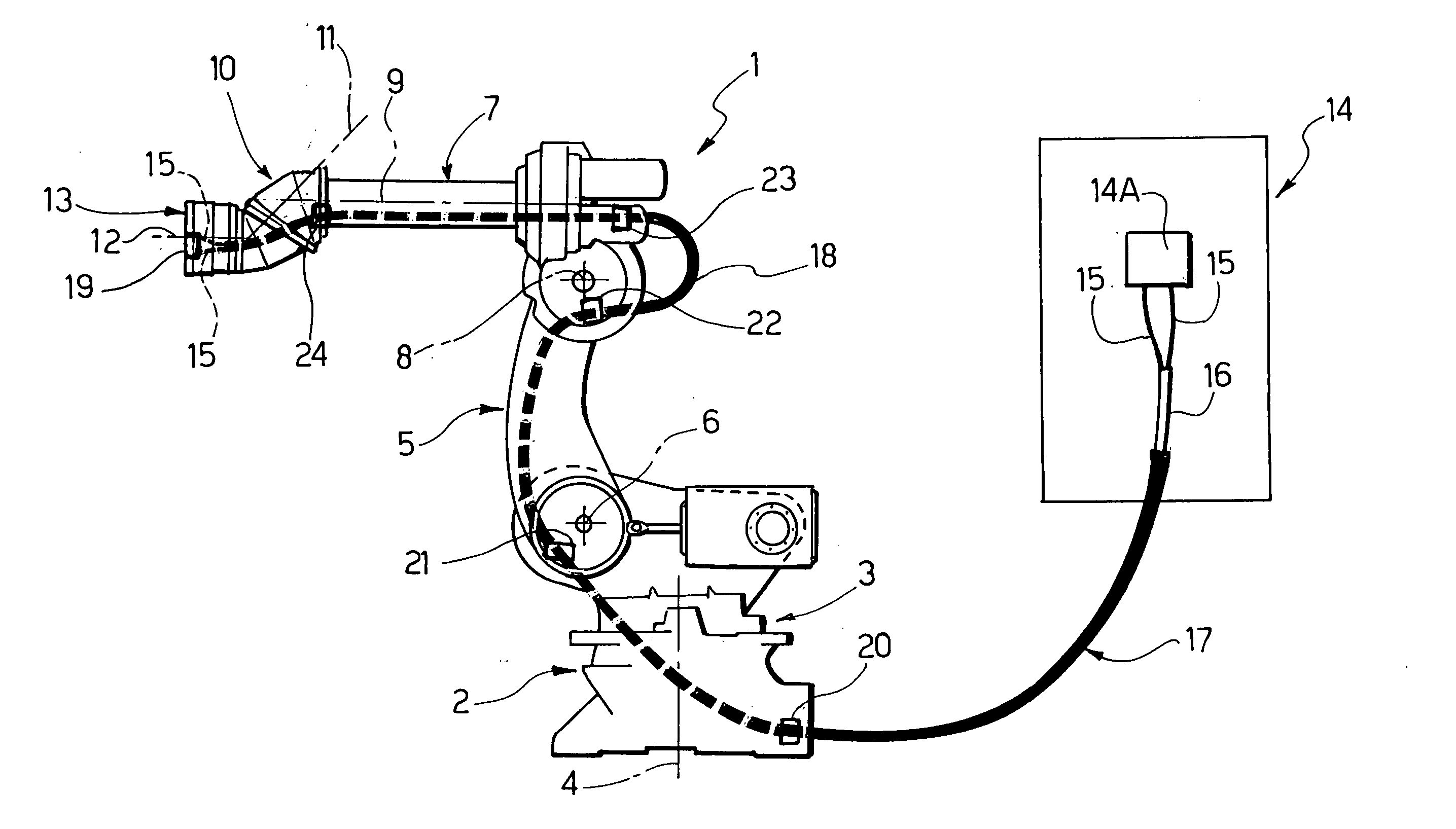

An industrial robot has a structure comprising two or more reciprocally articulated elements capable of angular motion, an electronic unit for controlling a functional device carried by the frame of the robot, and at least a first optical fiber conductor. The electronic unit is in signal communication with the functional device through the first optical fiber conductor for the transmission of control signals, and the first optical fiber conductor is part of a signal cable inserted into a tube; the outer section of the signal cable is smaller than the inner section of the tube, so that the former one can move within the latter.
First Claim
Other Claims data not available
