Electronic display board supporting structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 19, 2004
app pub date -
Dec 23, 2003
filing date -
Dec 26, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

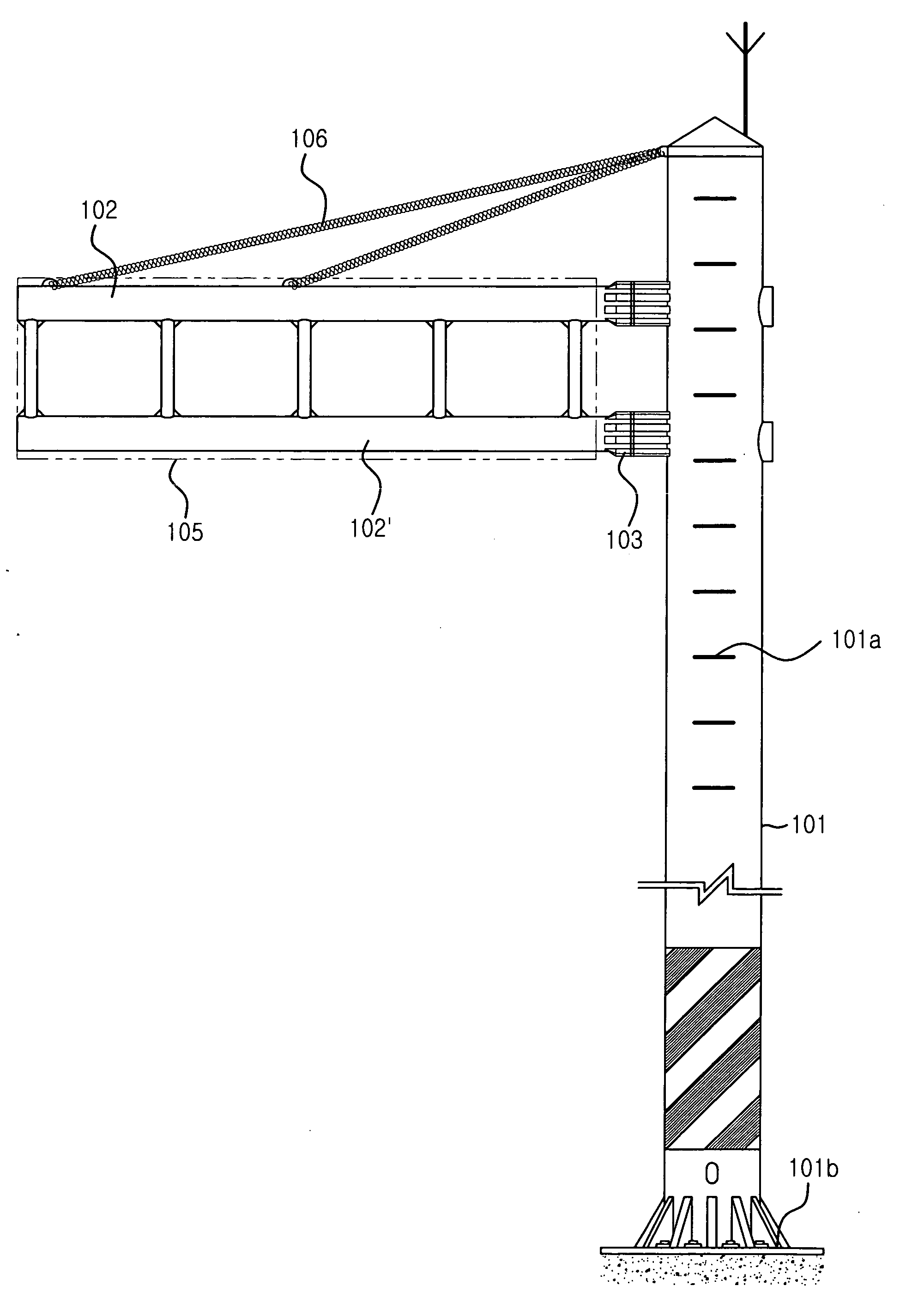

Disclosed is electronic display board supporting structure installed on perimeter road. The electronic display board supporting structure including: a main post having a base plate installed at a lower end part thereof to be uprightly coupled to a base concrete member; a main frame formed of a rectangular pipe material such that an electronic display board case frame for constructing an electronic display board and a side pole for supporting an electronic display board case have a combined structure to reduce a total area and weight when an electronic display board is installed; and a connection member horizontally extended from the main frame to couple the main frame with the main post.
First Claim
Other Claims data not available
