Window jamb component assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 2, 2004
filing date -
Dec 10, 1999
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

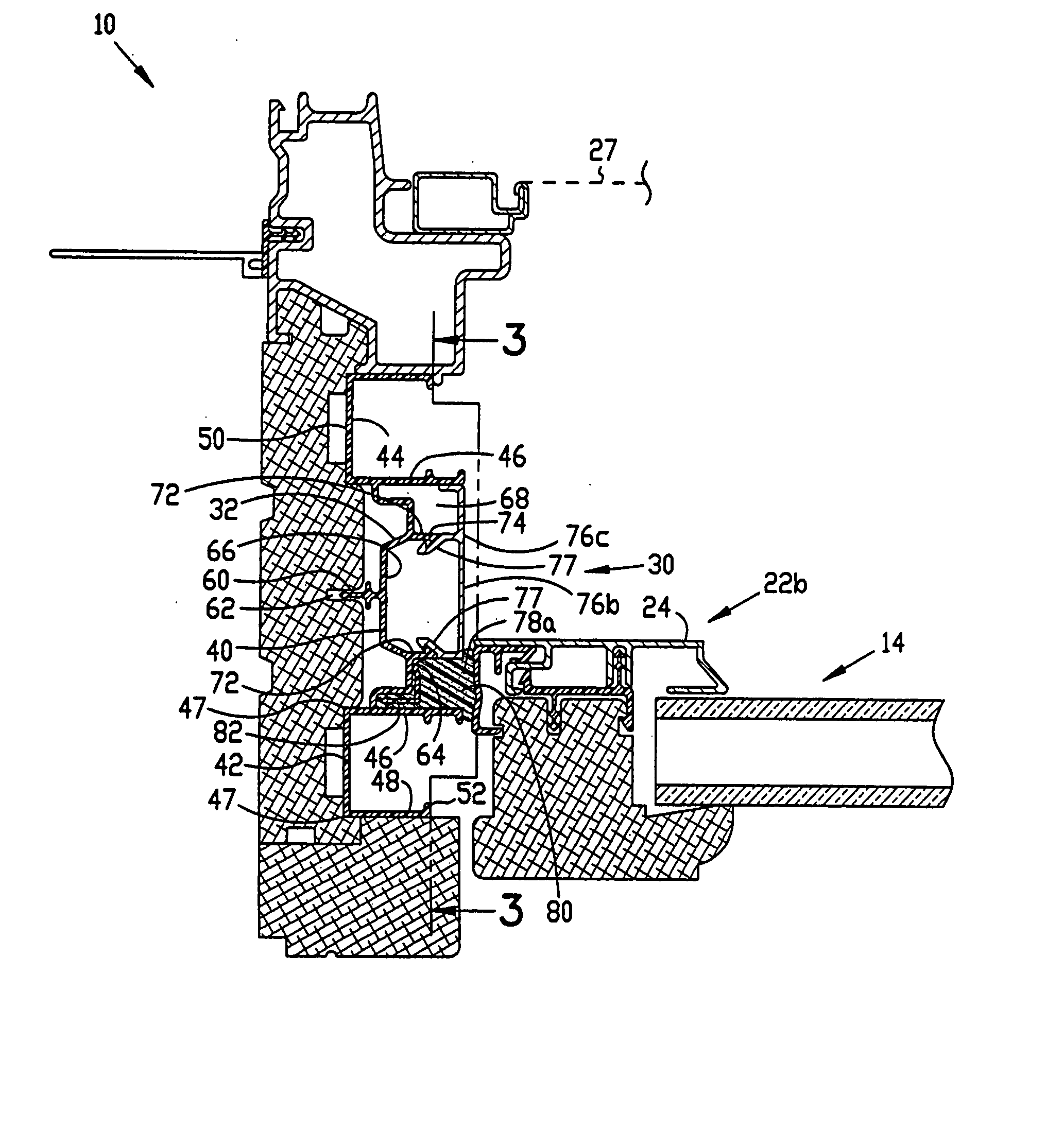

A window jamb component assembly mountable in the jambs of a double hung window for cooperative engagement with the sash assemblies thereof. The component assembly includes a longitudinally elongated jamb liner having upper and lower segments comprising a pair of channel guides spaced apart by a profiled web. The profiled web defines sequentially aligned recesses, namely an inner weather stripping recess, a jamb filler recess and an outer weather stripping recess. A jamb filler, held by the jamb filler recess, provides a uniformly clad surface for the jambs to match the appearance of the trim of the double hung window. Frame weather stripping for sealingly engaging the sash assemblies of the double hung window is deployed and held in the inner and outer weather stripping recesses. Such assembly provides a visually pleasing finish for the window jambs, while providing improved cooperation between the window jamb and the sash assemblies.
First Claim
Other Claims data not available
