Openable motor vehicle roof with two transparent covers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 29, 2004
app pub date -
Sep 15, 2003
filing date -
Mar 1, 2001
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

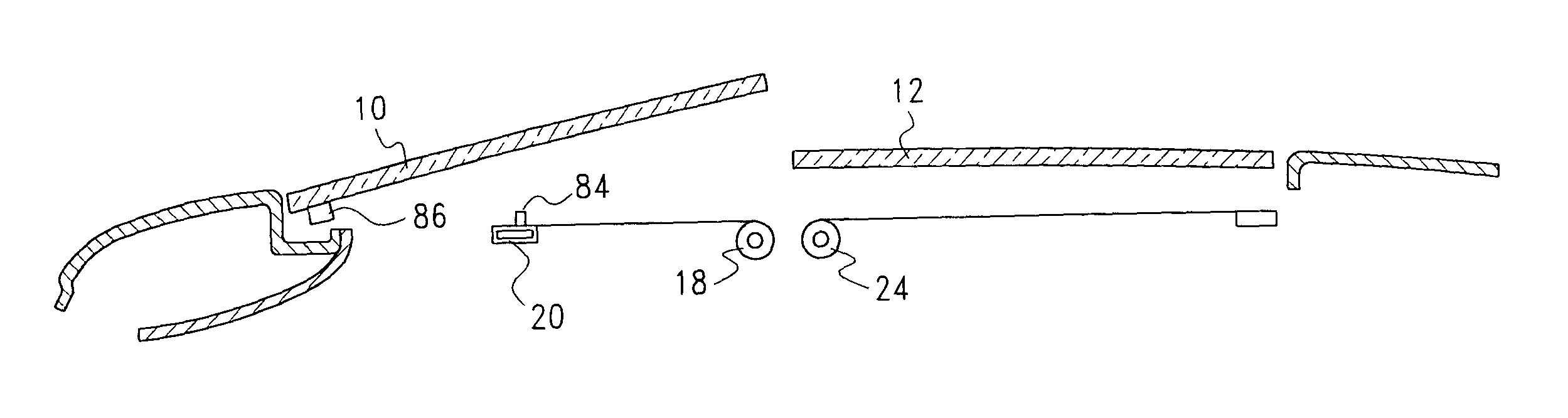

An openable motor vehicle roof with a first (10) and a second transparent cover (12) which, in the closed position, each close a roof opening and are displaceable in order to clear the roof opening at least in part. Underneath the first cover, there is a first covering (15) and underneath the second cover there is a second covering (21), the coverings being movable to mask or at least partially clear the view out of the vehicle interior (28) through the respective cover or roof opening. For the displacement of the first cover (10) and at least partial displacement of the first covering (15), there is a common first drive (30, 32), and for displacement of the second cover (12) and for at least partial adjustment of the second covering (21), there is a common second drive (34, 36, 38, 40).
First Claim
Other Claims data not available
