Blade crossbar
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 8, 2004
app pub date -
Oct 8, 2002
filing date -
Oct 8, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

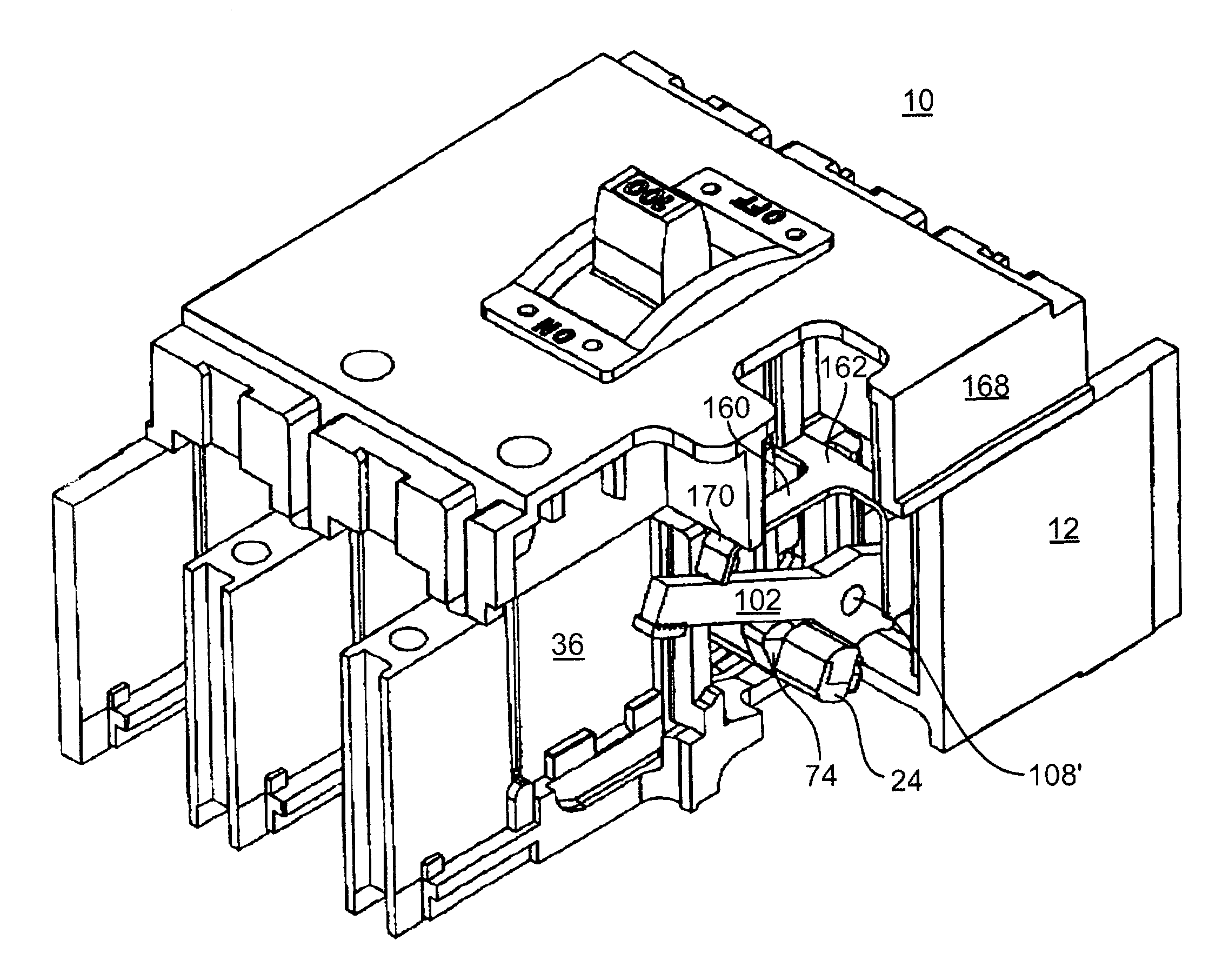

A system for providing circuit protection, wherein the system comprises a blade suspension assembly. The assembly comprises a molded blade crossbar including integral skirts positioned to separate poles attached to the blade crossbar. Integral blade rest and blade carrier mounts further reduce complexity. Simplicity and cost advantages are obtained using poles having substantially identical blade carriers. Complexity and mechanism size is further reduced by using a combination blade stop and pivot pin hold down bracket. A base is provided with a web to further separate poles. An opening in the web is adapted to receive the suspension assembly. A separate jacket may be removably attached to the base in cooperating relation with an integral skirt to form a phase barrier between adjacent poles. The jacket may be adapted to interface with the opening in the web and overlap the skirt.
First Claim
Other Claims data not available
