Transformerless AC/DC converter

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20040032756A1
SERIAL NO

10387119

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

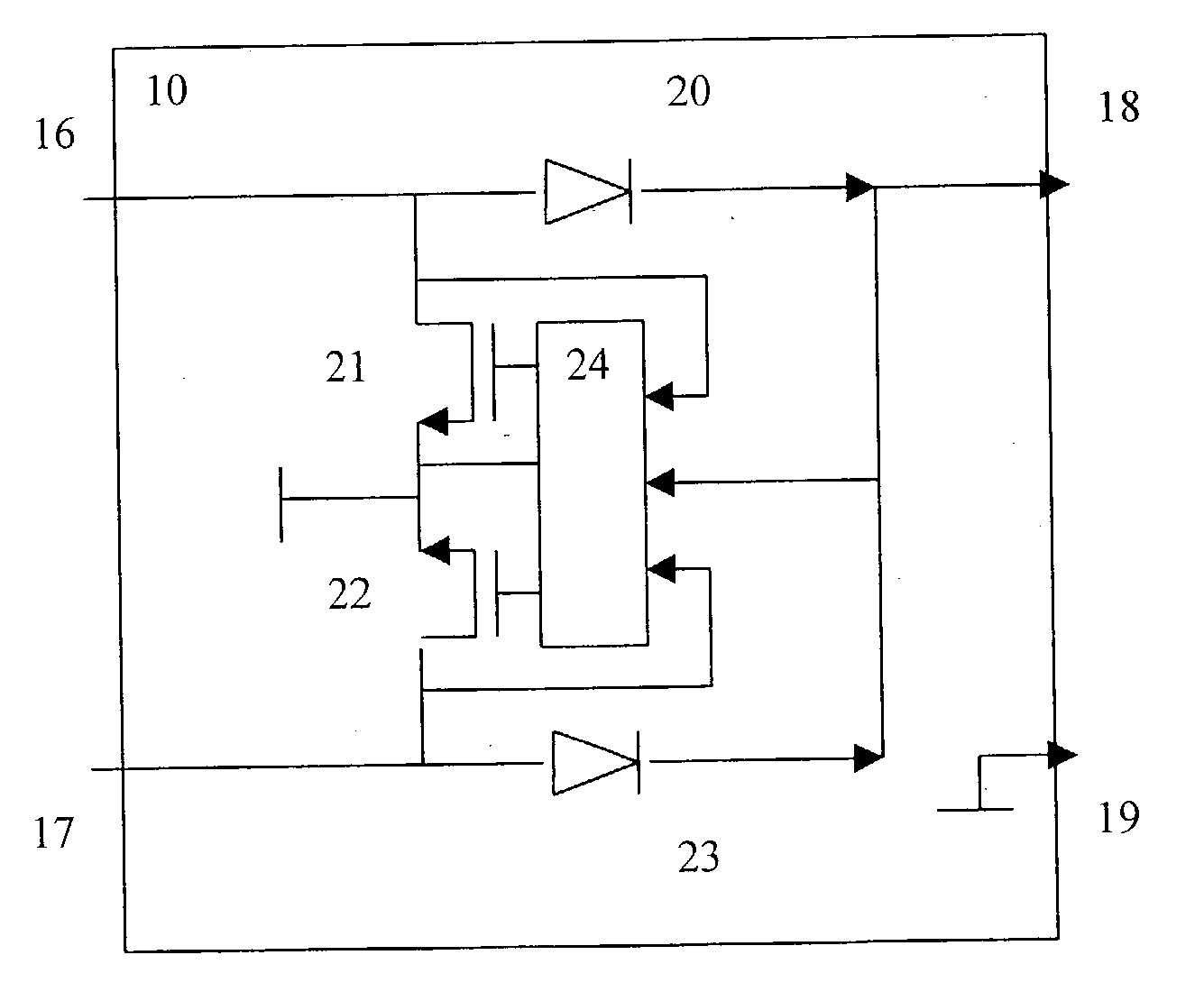

AC/DC converters comprise rectifiers for rectifying AC signals into DC signals. By providing these AC/DC converters with voltage dividing capacitors located between converter-input, a resistor, added to voltage dividing capacitor for filtering peak signals, and a rectifier, the rectifier can be better integrated, as it no longer receives the entire input voltage present at the converter-input of the AC/DC converter, without a conventional transformer comprising an iron core and windings being required. Such an AC/DC-converter is small sized, of light-weight and low costly made. Preferably, the converter-input is symmetric, the rectifier comprises two diodes and two transistors and a zero-cross detector for switching the transistors, the AC/DC converter comprises a down-converter located between the rectifier and converter-output for further down-converting purposes and comprising an inductor and a regulator for regulating inductor/capacitor-energies, with buffer capacitors being present in parallel to the down-converter for stabilising purposes, to get a transformerless wall plug adapter.
