HDP SRO liner for beyond 0.18 um STI gap-fill
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 8, 2004
app pub date -
Jul 2, 2002
filing date -
Jul 2, 2002
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

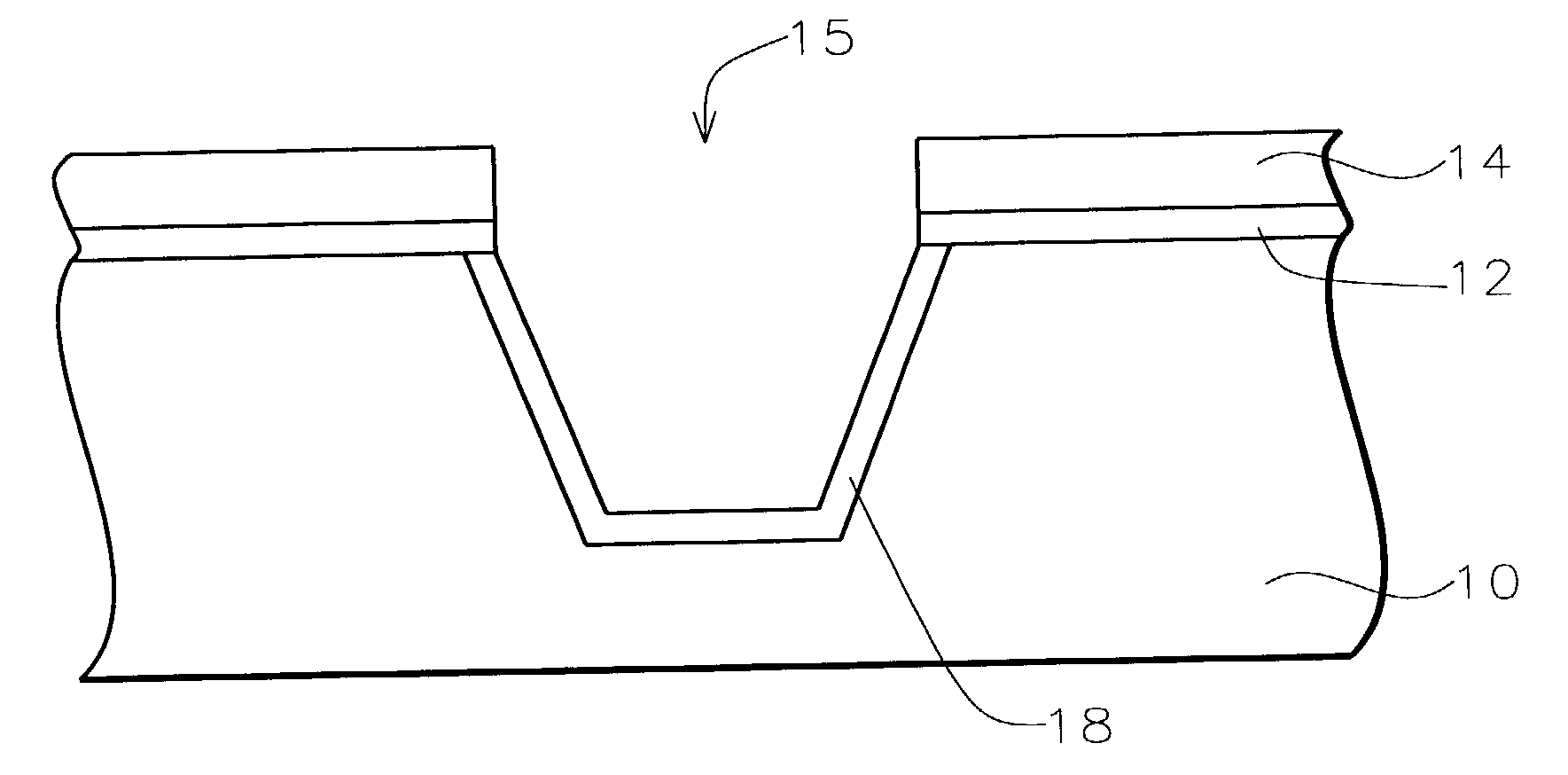

A new method of forming shallow trench isolations is described. An isolation trench is etched into a substrate. A silicon-rich oxide liner layer is deposited overlying the substrate and within the isolation trench using a high density plasma chemical vapor deposition process (HDP-CVD). Then, an oxide layer is deposited by HDP-CVD overlying the silicon-rich oxide liner layer and filling the trench to complete fabrication of said shallow trench isolation region in the manufacture of the integrated circuit device. The silicon-rich oxide liner layer is of high quality and has a high wet etch rate thereby minimizing divots formed during cleaning steps.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- H01L Class
- 1.54 % this patent is cited more than
- 21 Age
