Control and diagnostic system for vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 25, 2003
app pub date -
Jan 22, 2003
filing date -
Mar 18, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

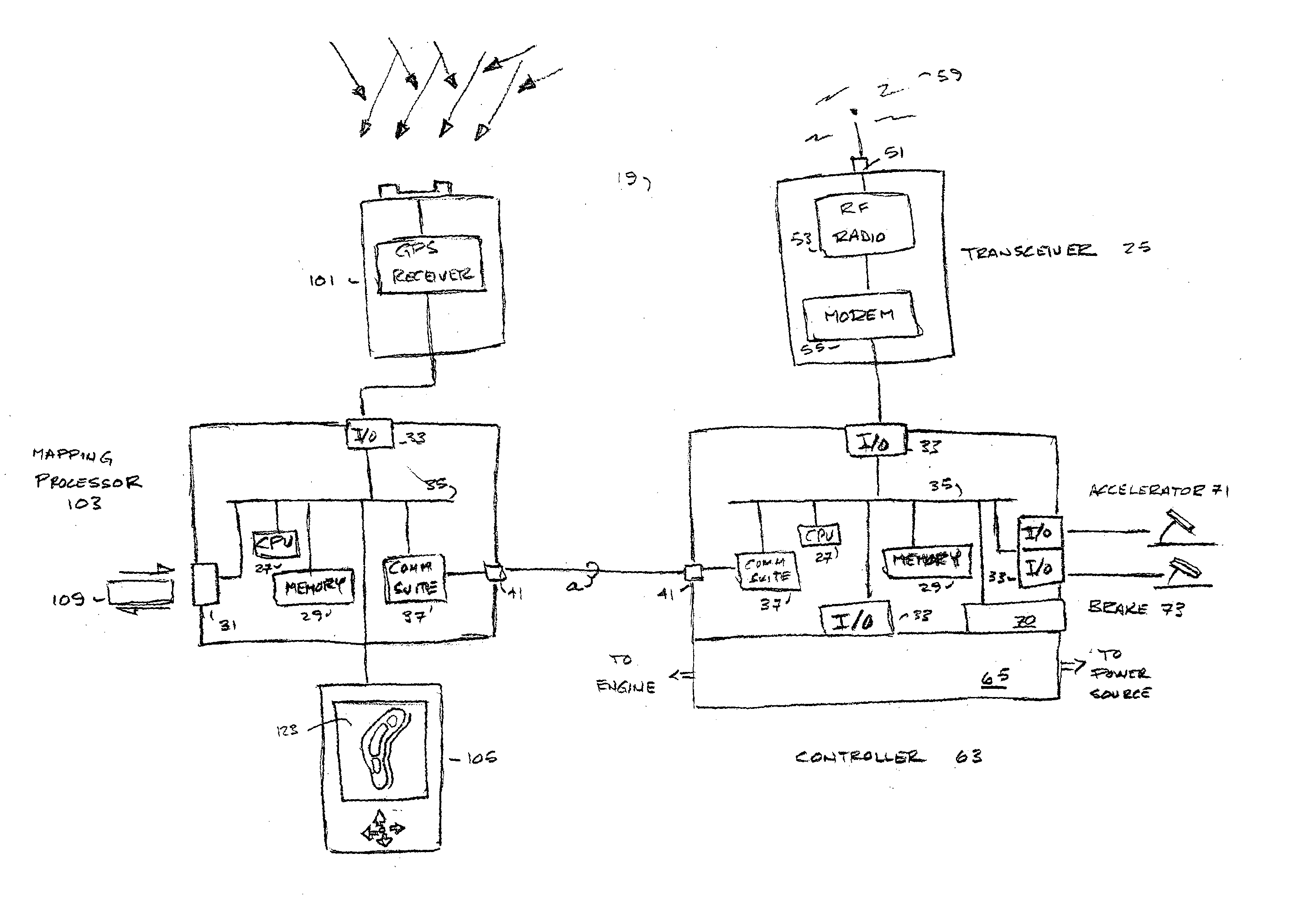

An apparatus and method for a remote diagnostic system for motorized vehicles. Apparatus according to this aspect of the invention includes a base station having a processor associated with a transceiver and a remote unit installed in a vehicle. The remote unit includes a controller associated with a transceiver, where the controller gathers diagnostic data. The remote unit controller transmits a vehicle identification signal in conjunction with diagnostic data to the base station transceiver such that the base station processor monitors the diagnostic data for the vehicle. Another aspect of the invention further includes a mapping processor associated with a memory. The memory stores a virtual map of a local operating area having areas that are allowable and restricted. The controller is coupled to the mapping processor and a global positioning system (GPS) receiver is coupled to the mapping processor. The GPS receiver determines a current vehicle location and the mapping processor correlates the current vehicle location to a corresponding location on the virtual map. The mapping processor determines whether the vehicle is about to enter a restricted area thereby causing the mapping processor to annunciate a warning to a user. The vehicle transceiver is configured to transmit a vehicle identification signal and location to the base station transceiver such that the base station processor monitors the location and status for each of the motorized vehicles.
First Claim
Other Claims data not available
