Stud-type roller bearing with tracking roller
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 13, 2003
app pub date -
Apr 3, 2003
filing date -
May 7, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

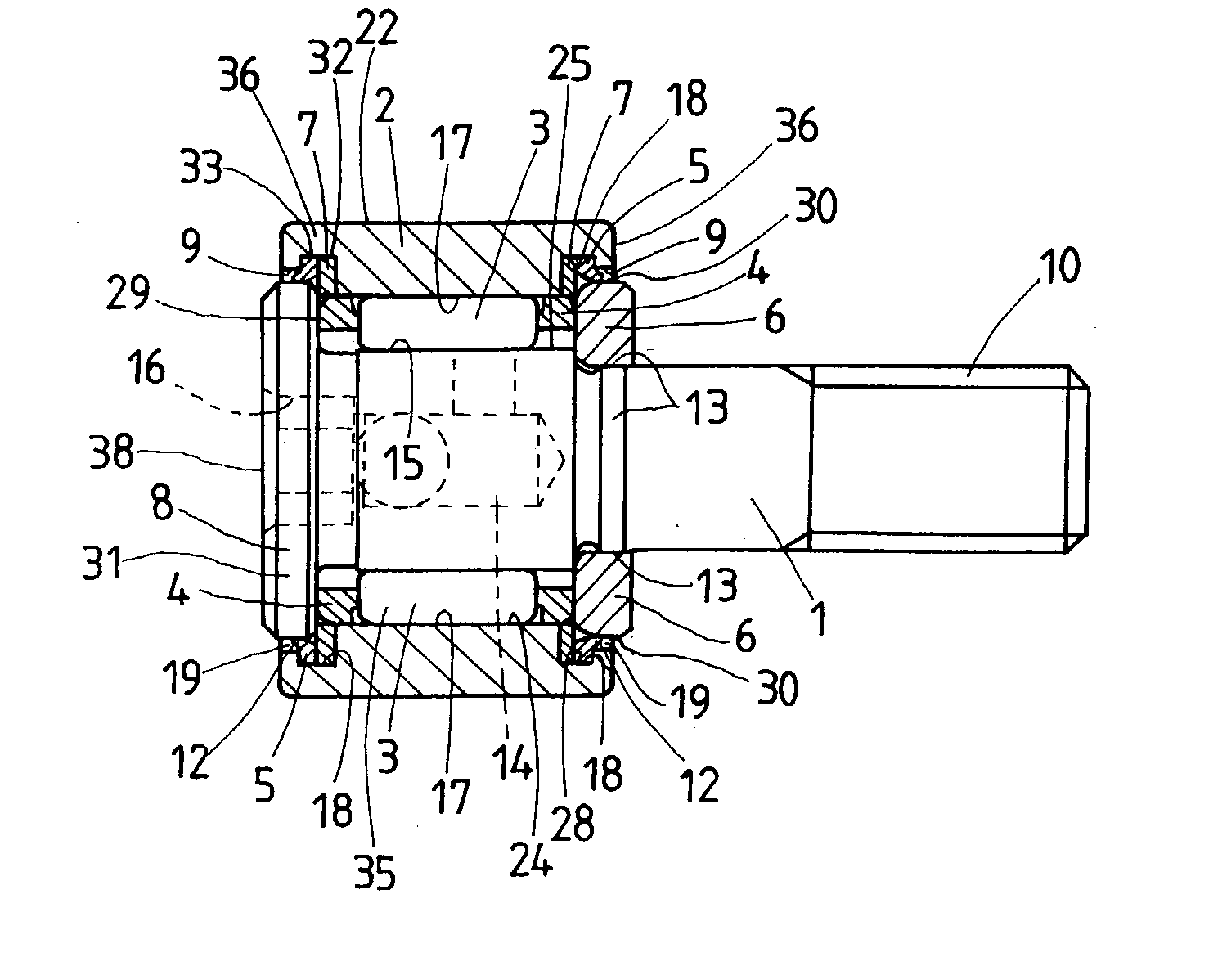

A stud-type roller bearing with tracking roller, in which a thrust washer together with a sealing member fits effectively in a space limited to get the bearing in itself shrunk in size. With the stud-type roller bearing with tracking roller disclosed here, an outer ring is made at axially opposite ends thereof with circular setbacks, one to each end, which are larger in their inside diameters than a circular raceway surface. Any one of the setbacks is arranged in opposition to the flange of the shaft while the other is placed in opposition relation to a cover plate that fits on the shaft at a location adjacent to the raceway surface around the shaft. Circular recesses are cut in the setbacks to hold a laminate of the thrust washer and the elastic sealing member together with the thrust washer therein.
