Suspended structure for handling medical equipment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 23, 2003
app pub date -
Apr 18, 2003
filing date -
Apr 22, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

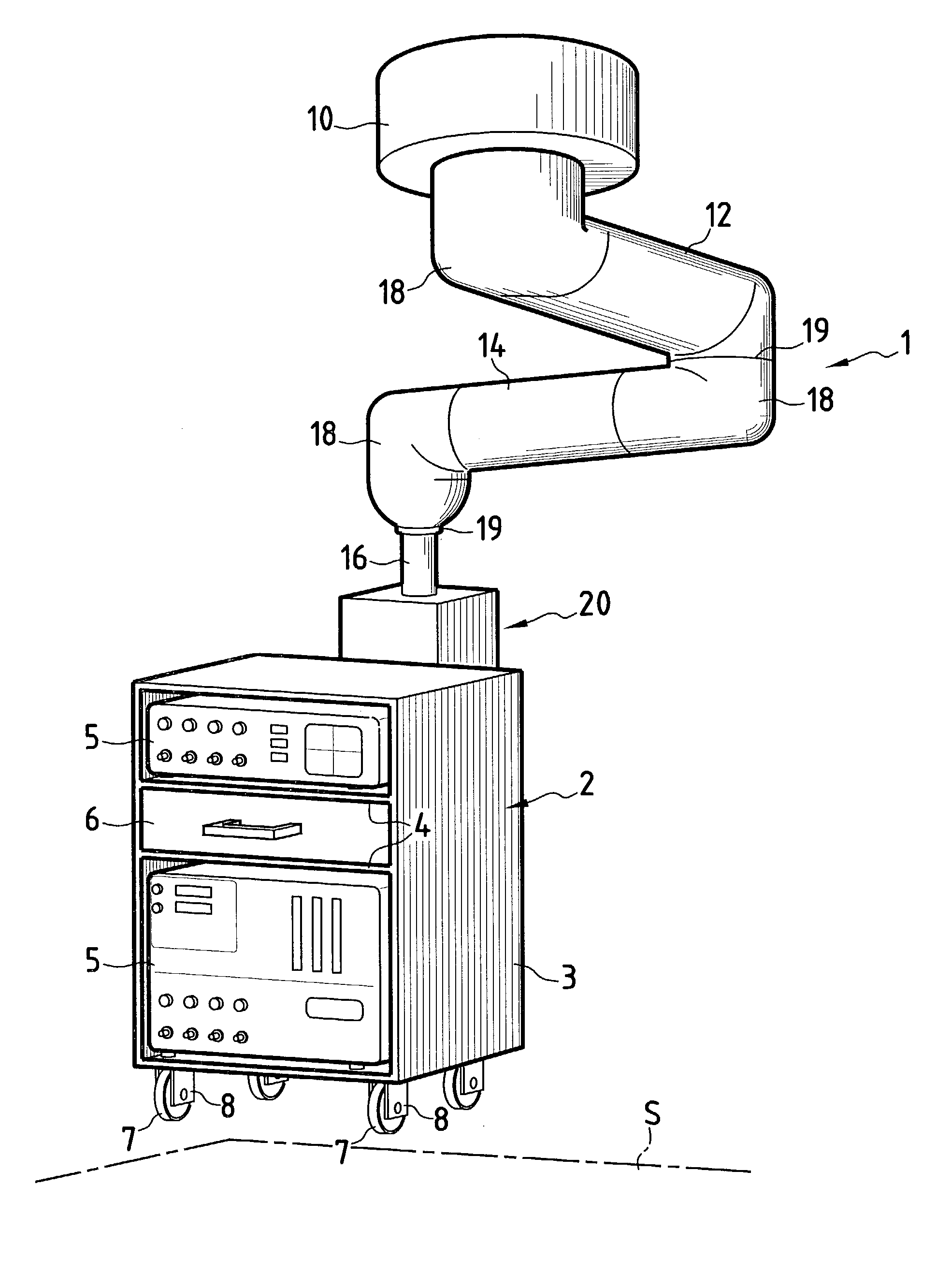

The structure is suspended from the ceiling of a room in a hospital or a clinic and includes a substantially vertical arm adapted to support medical equipment such as a cart above the floor. For this purpose, the structure has a support column for supporting the medical equipment, the column being connected to the vertical arm, and an intermediate support on which said medical equipment is loaded and which is hinged to the column and forms an external cover therefor. The structure also has means for adjusting the position of the intermediate support relative to the column so as to correct departures of the on-board equipment from the horizontal.
First Claim
Other Claims data not available
