Apparatus for reading codes of thermoluminescence detectors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2004
Grant Date -
Oct 16, 2003
app pub date -
Apr 12, 2002
filing date -
Sep 14, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

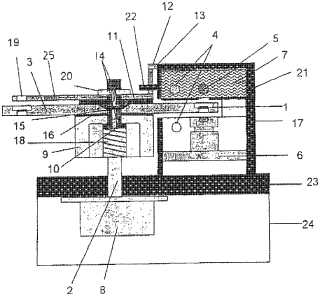

In an apparatus for reading codes of a thermoluminescence detector, a housing including an optical unit is disposed on a base together with a disc-like magazine, which is rotatably supported adjacent the housing and provided with an annular array of recesses receiving the thermoluminescence detectors to be examined. The housing has a side opening through which the magazine extends into the housing, in which a light source is disposed for the homogeneous illumination of the thermoluminescence detectors from one side thereof, A CCD camera is disposed in the housing at the other side of the magazine for recording the illuminescence generated by the detectors when exposed to the light from the light source for determining the radiation exposure of thermoluminescence detectors.
First Claim
Other Claims data not available
