Machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 18, 2005
Grant Date -
Oct 9, 2003
app pub date -
Mar 28, 2003
filing date -
Oct 12, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

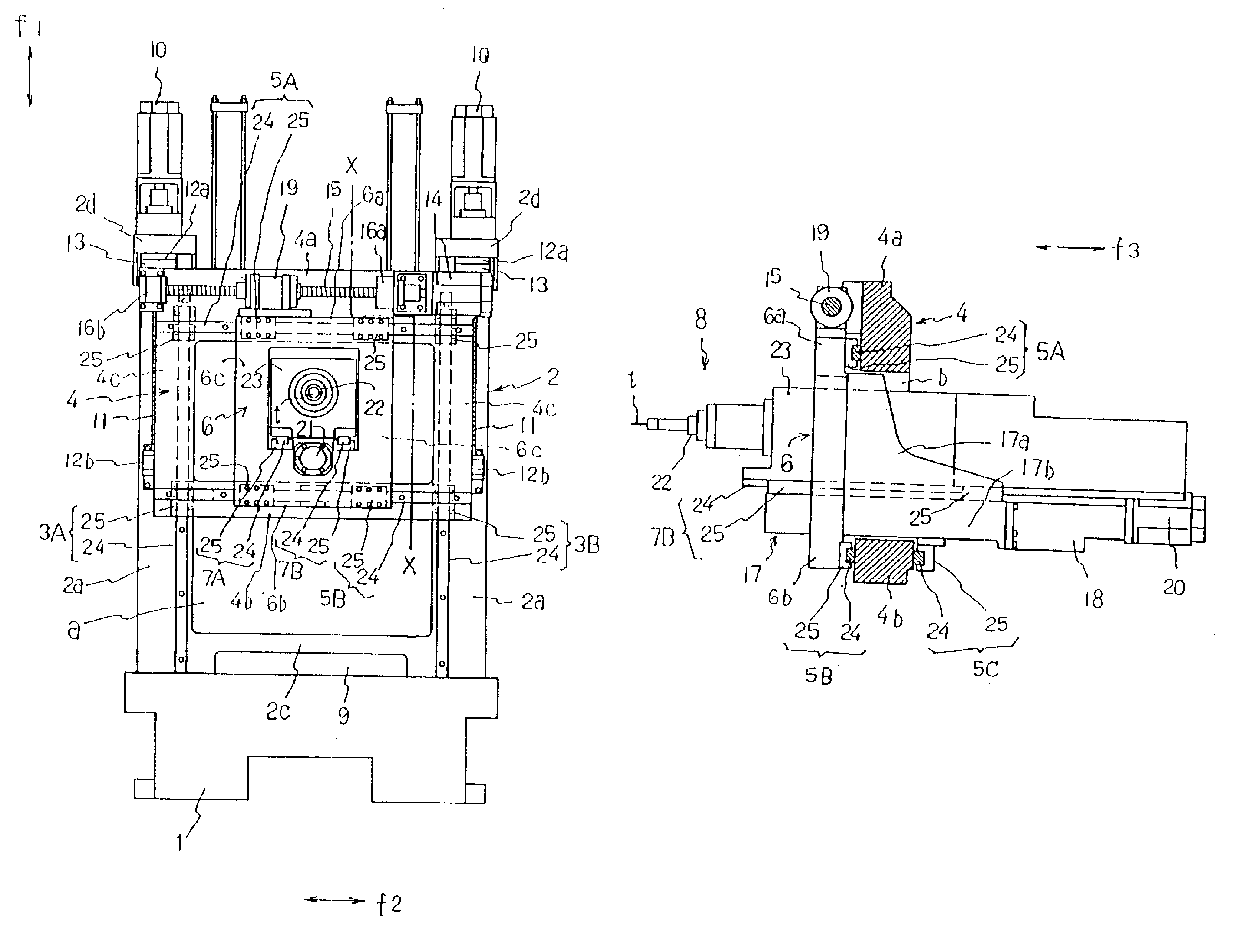

A machine tool capable of performing an accurate machining by preventing a second saddle 6 from displacing aslant to suppress the vibrations of a spindle head 8, wherein a column 2 is fixedly installed on bed 1, a first saddle 4 is movably guided by the column 2 in vertical direction f1, a second saddle 6 is movably guided by the first saddle 4 in lateral direction f2, a spindle head 8 is movably guided by the second saddle 6 in longitudinal direction 18, and interfitted guide route devices 5A, 5B, 5C for guiding the second saddle 6 in lateral direction f2 are formed at the rear lower position of the first saddle 4 as well as at the front upper and lower positions of the first saddle 4.
