Method and a system for stitching images produced by two or more sensors in a graphical scanner

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20030138167A1
SERIAL NO

10054752

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

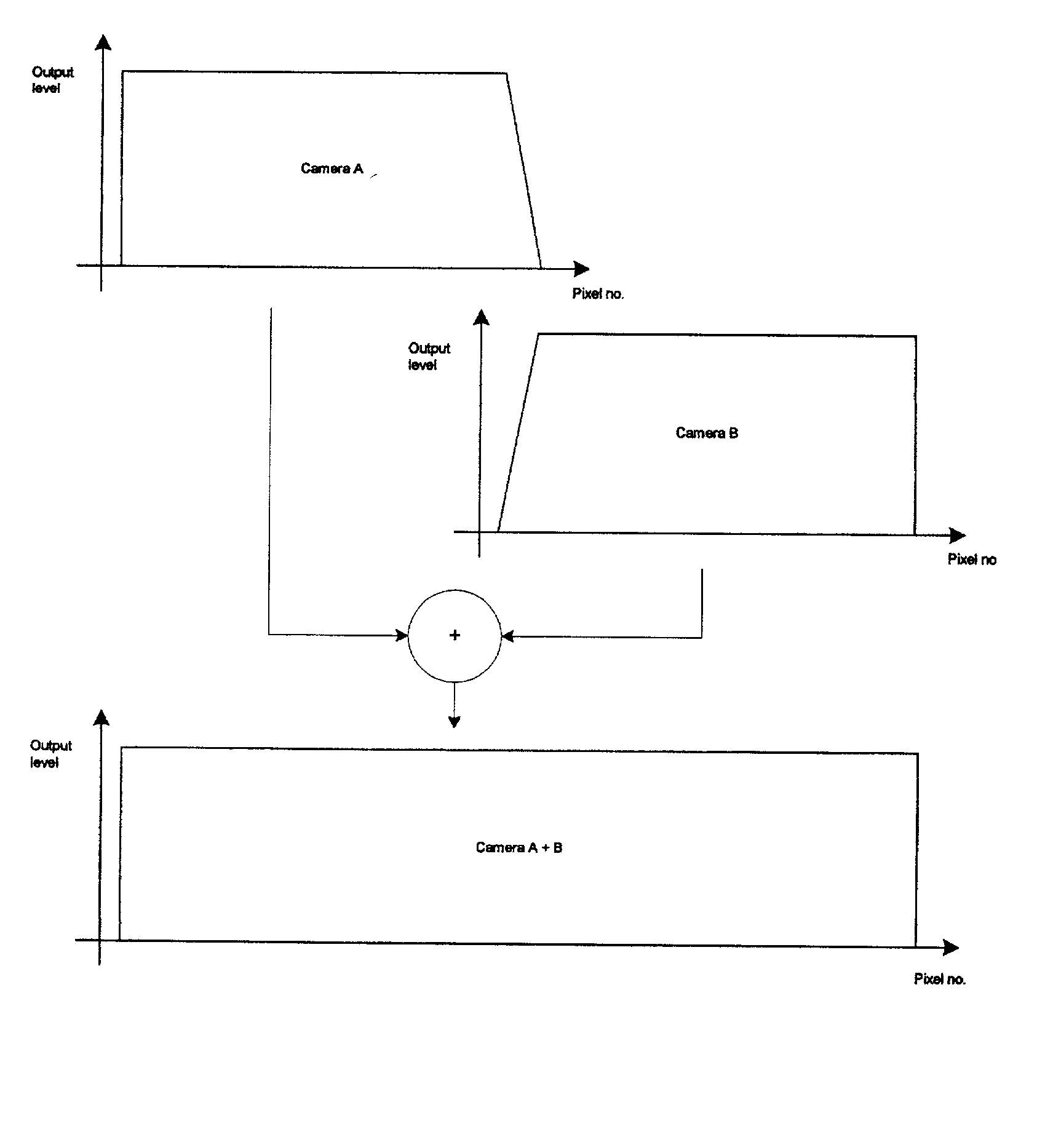

The present invention relates to a method and a system for seamlessly stitching images produced by two or more overlapping image sensors in a graphical scanner so that no hard changes in color occur due to differences in the sensors. The present invention introduces two ways of performing the stitching for each scanline. In a first aspect, the stitching is done by, for each pixel in the overlap, calculating a weighted sum of the corresponding pixel values while gradually shifting the weight from one sensor to the other. In another aspect, the stitching is done by choosing a pixel in the overlap according to a predefined, a random or a pseudo random pattern.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
CONTEX A/S2 SVANEVANG DK-3450 ALLER

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Rasmusen, Joergen Hoersholm, DK 1 2

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 2 Citation Count
  • H04N Class
  • 1.28 % this patent is cited more than
  • 22 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges196303571919057412817884301 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +050100150200250300350400450500550600650700

Forward Cite Landscape

Load Citation
