Active deployment system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 3, 2003
app pub date -
Oct 4, 2002
filing date -
Apr 5, 2000
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

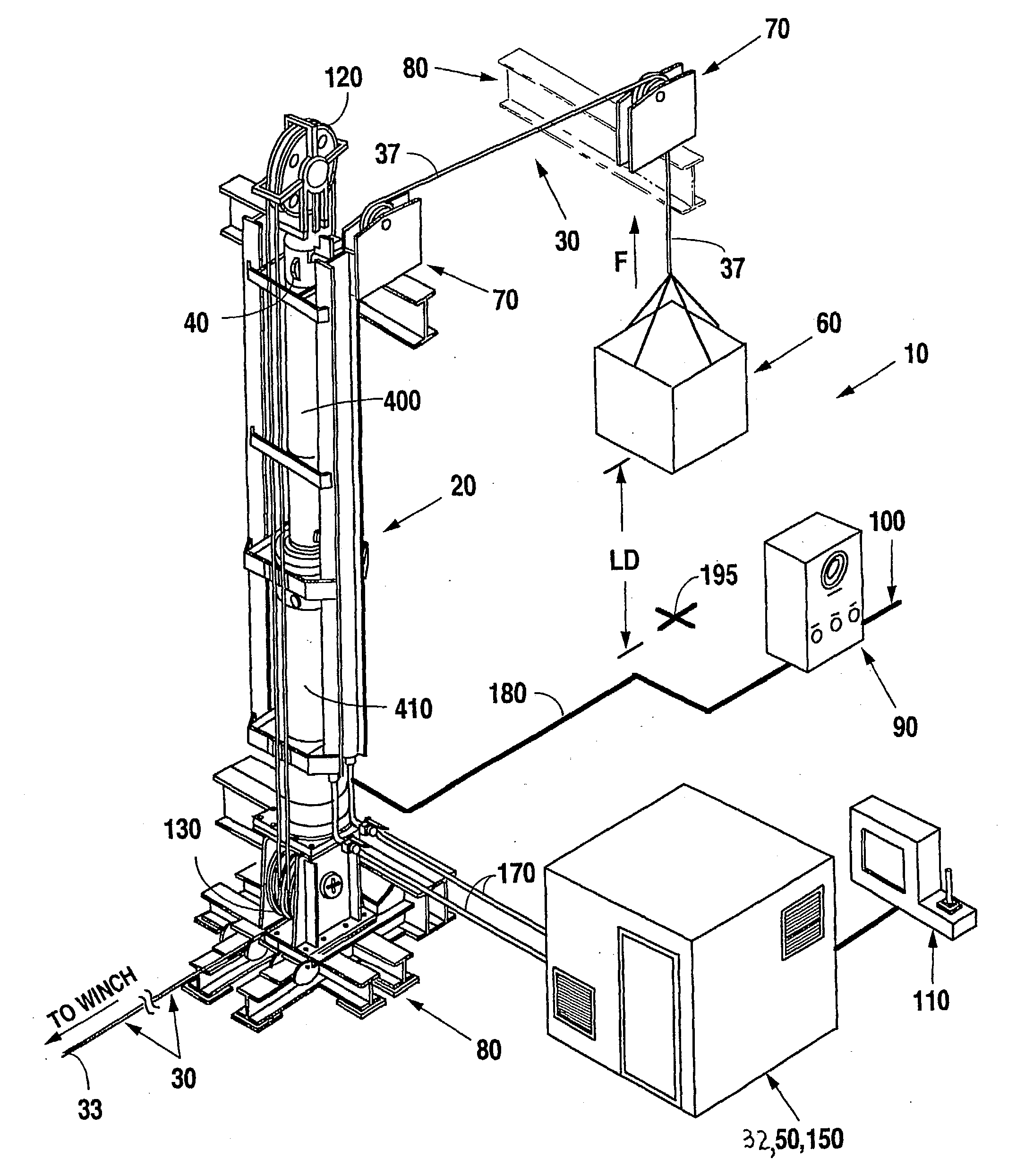

The active deployment system (10, 10') comprises a passive cylinder system (410) coupled with an active cylinder system (400). The passive cylinder system (410) including a pre-charged accumulator (440), provides load balance for the equipment or other mass/load being deployed. Pressure provided to the blind end of the passive cylinder supports the load (60), such that the passive cylinder is balanced mid-stroke with the load hanging from a cable (30). A sheave arrangement (120, 130), placed at opposite ends of the passive cylinder-active cylinder combination, is used to introduce a line travel multiplier for cylinder displacement. The active cylinder is controlled hydraulically to add or remove load to/from the passive cylinder system in order to provide a compensating balance. The method comprises the steps of measuring a heave movement (velocity and direction), and adjusting the tension force applied to the cable (30) upon determining that the heave velocity exceeds a pre-selected critical velocity.
