Multi-passage conduit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 30, 2002
filing date -
Jun 1, 2000
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

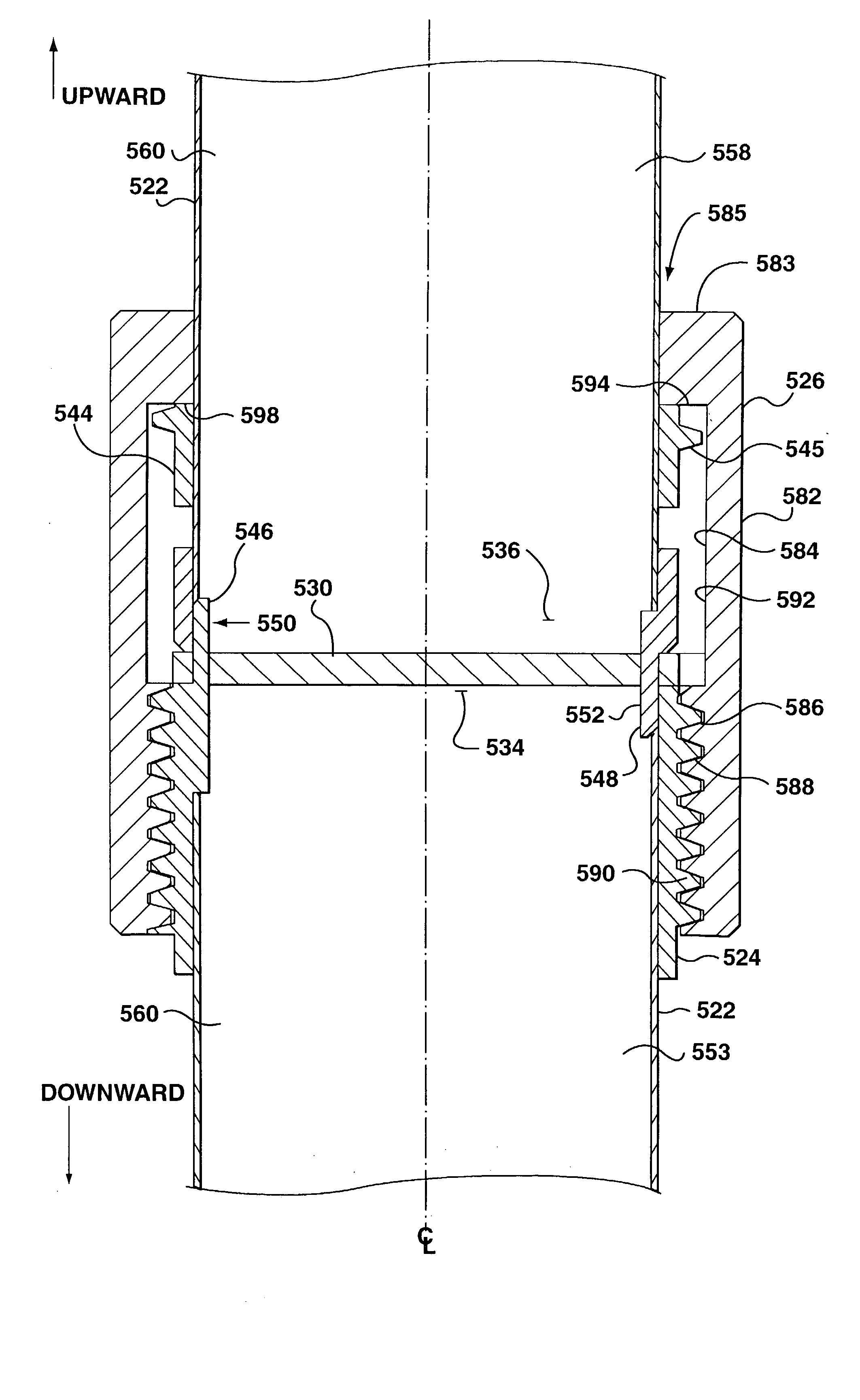

A well production apparatus includes a down-hole gear pump and a transport assembly to which the gear pump is attached. The transport assembly is formed from a string of modular pipe assemblies having one or more passages for carrying production fluid from the bottom of the well to the surface. The passages can be arranged in a side-by-side configuration, and include pressure and return lines such as used to drive a hydraulic motor connected to the gear pump. The modular pipe assemblies can have two, three, four, or more passages, and can be stepped relative to each other to give a unique assembly orientation. The modular assemblies have mating fitting that can be tightened without the need to spin the pipe joints at the same time.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CA | A1 | CA2310546 | Jun 01, 2000 |
| AU | A1 | AU2001267182 | May 29, 2001 |
| WO | A2 | WO2001092768 | May 29, 2001 |
International Classification(s)
- 2002 Application Filing Year
- F16L Class
- 1061 Applications Filed
- 476 Patents Issued To-Date
- 44.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- F16L Class
- 56.51 % this patent is cited more than
- 22 Age
