Servocontrolled magnetic gripping device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 16, 2003
Grant Date -
Dec 19, 2002
app pub date -
May 17, 2002
filing date -
May 17, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

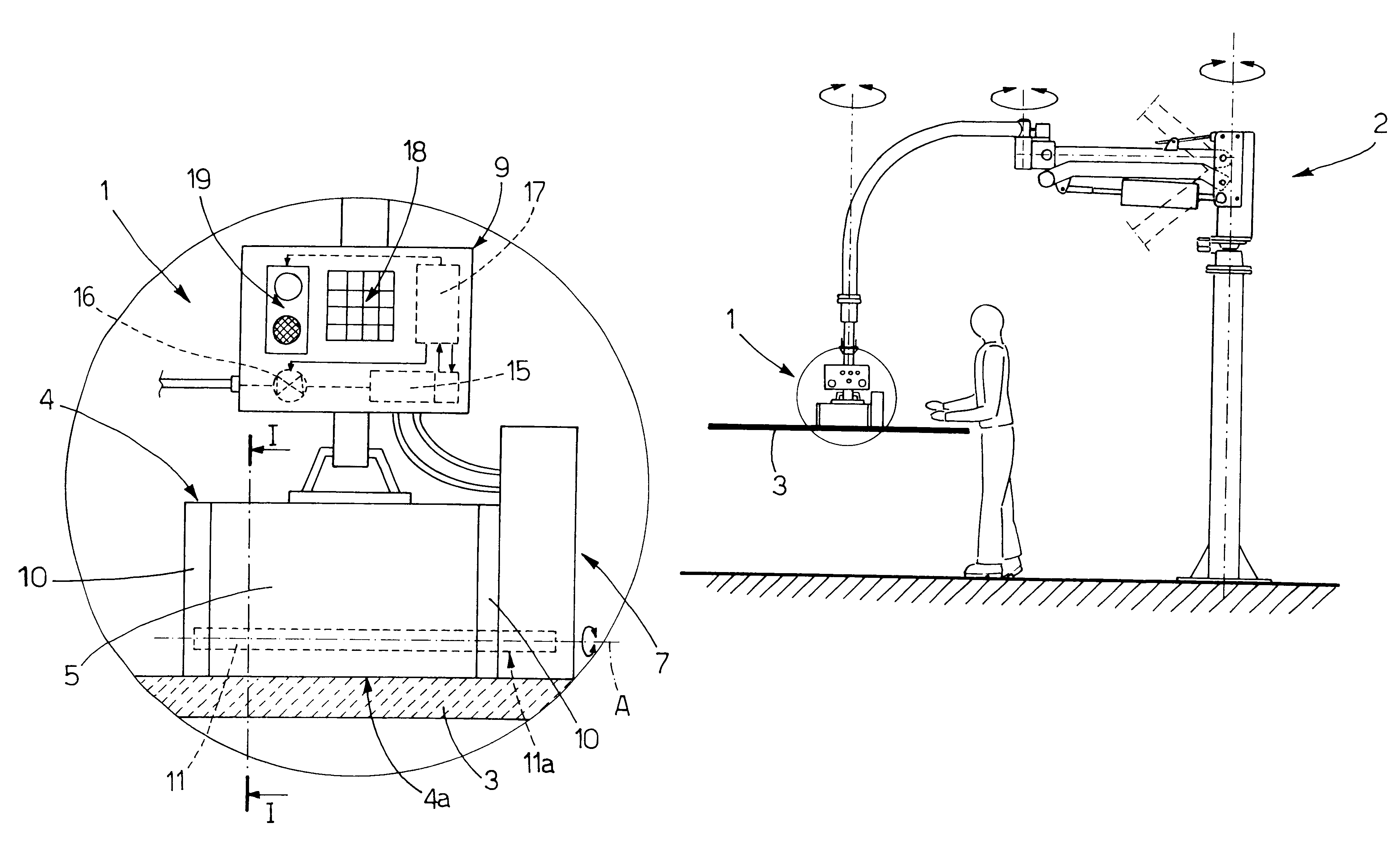

A magnetic gripping device having a magnetic assembly in turn having an outer magnetic core, and an inner magnetic core mounted inside the outer magnetic core so as to rotate, about a given axis of rotation, between a first operating position, in which the inner magnetic core prevents the outer magnetic core from attaching magnetically to the surface of a generic part of ferromagnetic material, and a second operating position, in which the inner magnetic core allows the outer magnetic core to attach magnetically to the surface of the part; the gripping device also having a torque-control actuating device, which, on command, rotates the inner magnetic core in such a manner as to set it selectively to the first or second operating position, while controlling the value of the twisting torque employed in doing so.
First Claim
Other Claims data not available
