Abstract

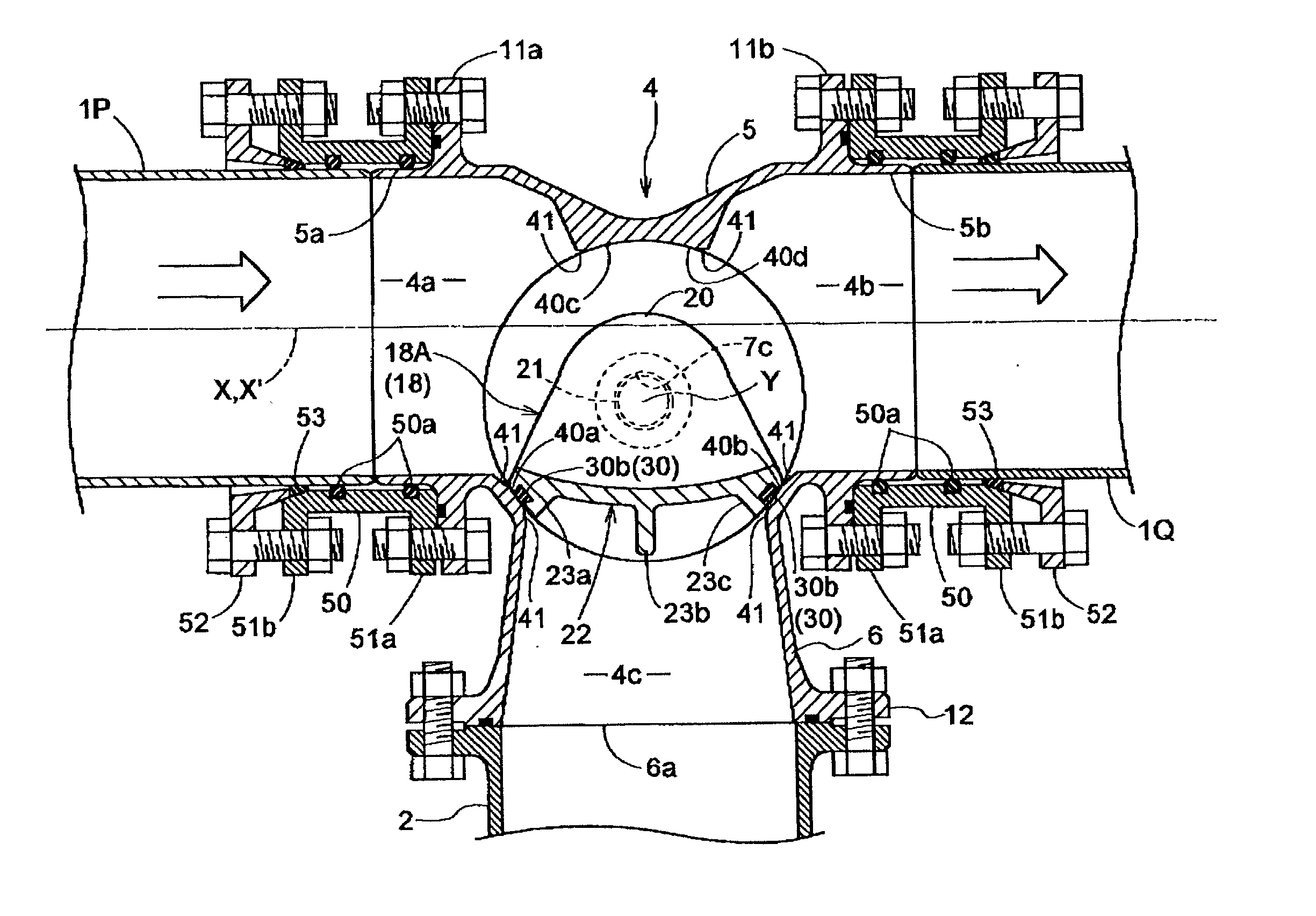

A fluid transport pipe joint for use in connecting a branch pipe to an existing fluid transport pipe is disclosed. The joint includes a joint body having first and second open ends connectable respectively with first and second ends of the fluid transport pipe formed by cutting away a predetermined length portion from the pipe, and a third open end connectable with the branch pipe, a pair of seal rings fitted over the first and second ends of the fluid transport pipe, the seal rings being slidable over an outer peripheral face of the fluid transport pipe so as to respectively seal a border portion between the first open end of the joint body and the first end of the fluid transport pipe and a border portion between the second open end of the joint body and the second end of the fluid transport pipe, a valve disposed inside the joint body to be pivotable therein to control flow of fluid running inside the joint body, and a seat provided within the joint body. The seat includes a third seat portion for contacting and supporting the valve at a predetermined angular position of the valve in such a way as to shut the third open end of the joint body from the fluid running between the first open end and the second open end, a first seat portion for contacting and supporting the valve at a further predetermined angular position of the valve in such a manner as to shut the first open end from the fluid running between the second open end and the third open end, and a second seat portion for contacting and supporting the valve at a still further predetermined angular position of the valve in such a manner as to shut the second open end from the fluid running between the third open end and the first open end.
