Silicon single crystal, silicon wafer, and epitaxial wafer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 3, 2002
app pub date -
Jan 25, 2002
filing date -
Jul 28, 1999
priority date (Note) -
Abandoned
status (Latency Note)
Importance

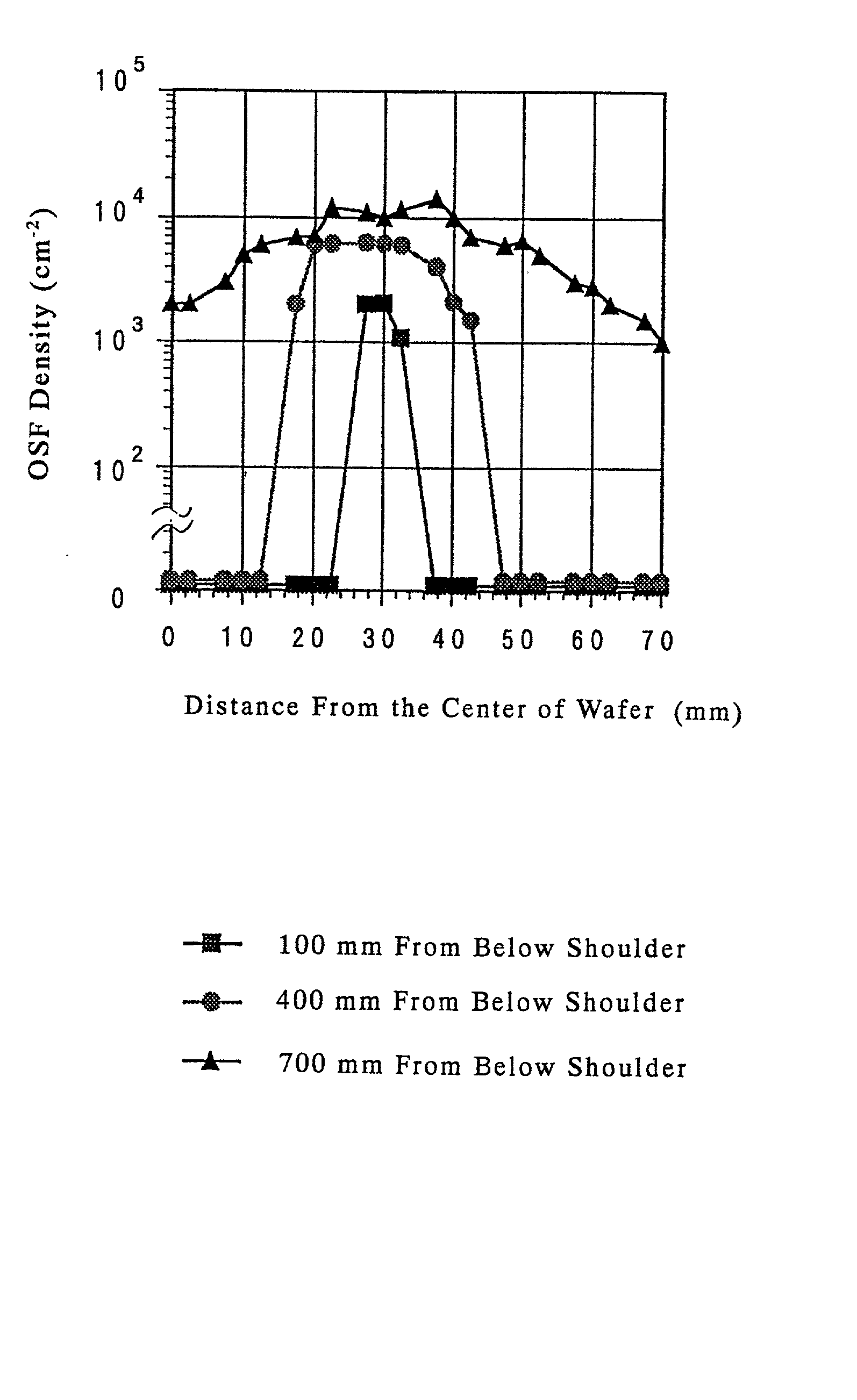

Abstract
There are provided silicon single crystal, silicon wafer, and epitaxial wafer having a sufficient gettering effect suitable for a large-scale integrated device. The silicon single crystal which is suitable for an epitaxial wafer is grown with nitrogen doping at a concentration of 1.times.10.sup.13 atoms/cm.sup.3 or more, or with nitrogen doping at a concentration of 1.times.10.sup.12 atoms/cm.sup.3 and carbon doping at a concentration of 0.1.times.10.sup.16-5.times.10.sup.16 atoms/cm.sup.3 and/or boron doping at a concentration of 1.times.10.sup.17 atoms/cm.sup.3 or more. The silicon wafer is produced by slicing from the silicon single crystal, and an epitaxial layer is grown on a surface of the silicon wafer to produce the epitaxial wafer. The present invention provides an epitaxial wafer for a large-scale integrated device having no defects in a device-active region and having an excellent gettering effect without performance of an extrinsic or intrinsic gettering treatment, which is a factor for increasing the number of production steps and production costs.
First Claim
Other Claims data not available
