DOSING METHOD FOR ADDING DETERGENT TO A DISHWASHING MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 29, 2002
app pub date -
Jun 18, 1999
filing date -
Dec 18, 1996
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

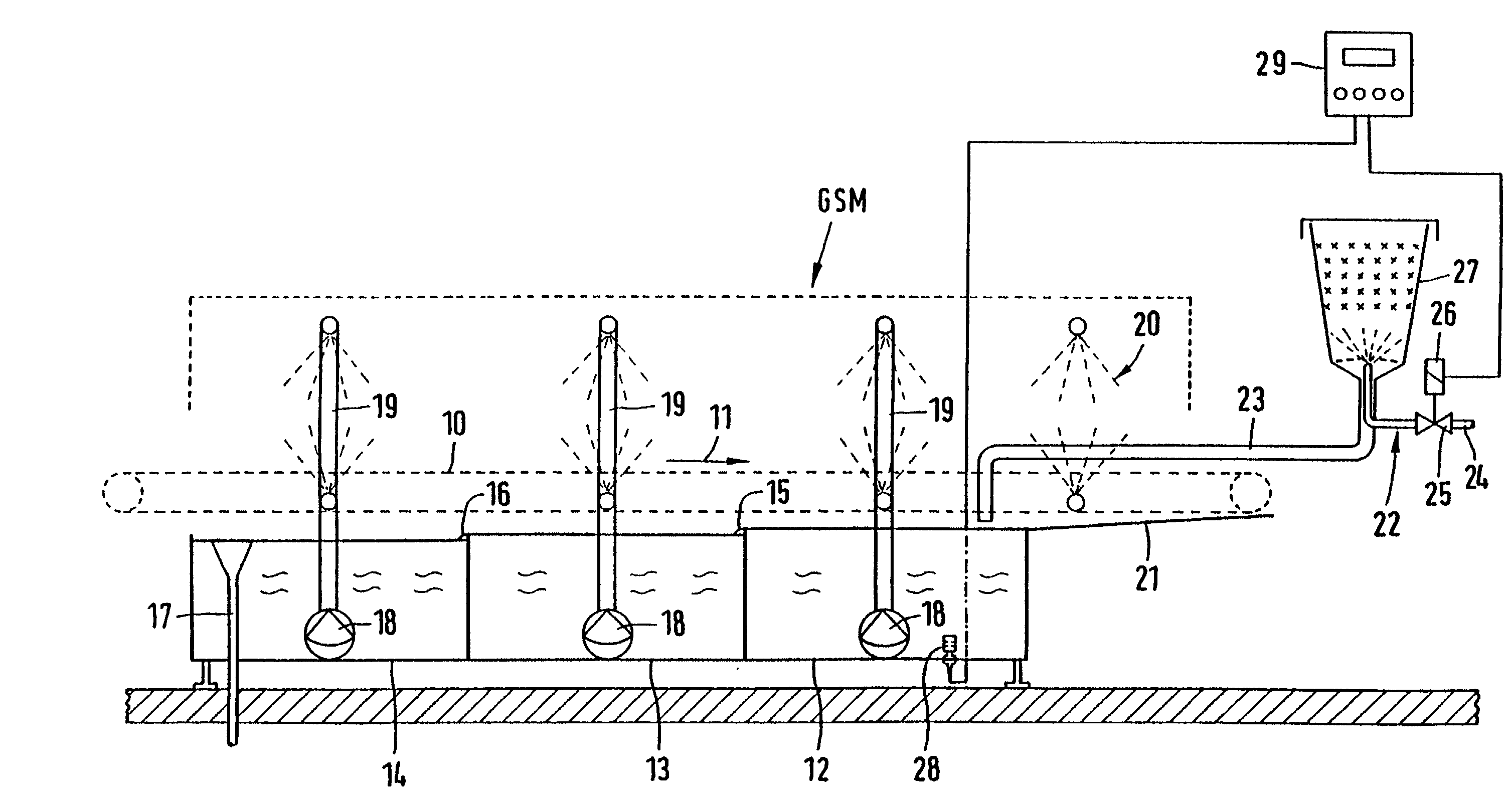

The invention relates to a commercial dishwashing machine, where the detergent added to the first wash tank of the wash section is controlled by a regulator which controls a dosing device. The regulator is a fuzzy regulator, which in a learning phase determines characteristic influencing values of the system to be regulated. In the learning phase, detergent is continuously added to the first wash tank for a predefined period. The change in the water's conductivity over that period is determined. In the subsequent operating phase, the extent to which the conductivity measured deviates from a set value is determined. Dosing takes place by fuzzy regulation on the set value deviation, on the basis of the measured influencing values as fuzzy variables. Because in the learning phase all the influencing values of the dishwashing machine, dosage device and detergent are taken into account, dosing is automatically optimally adjusted to prevailing conditions.
First Claim
Other Claims data not available
