Vehicle horn
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 20, 2002
app pub date -
Dec 14, 2000
filing date -
Dec 14, 2000
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

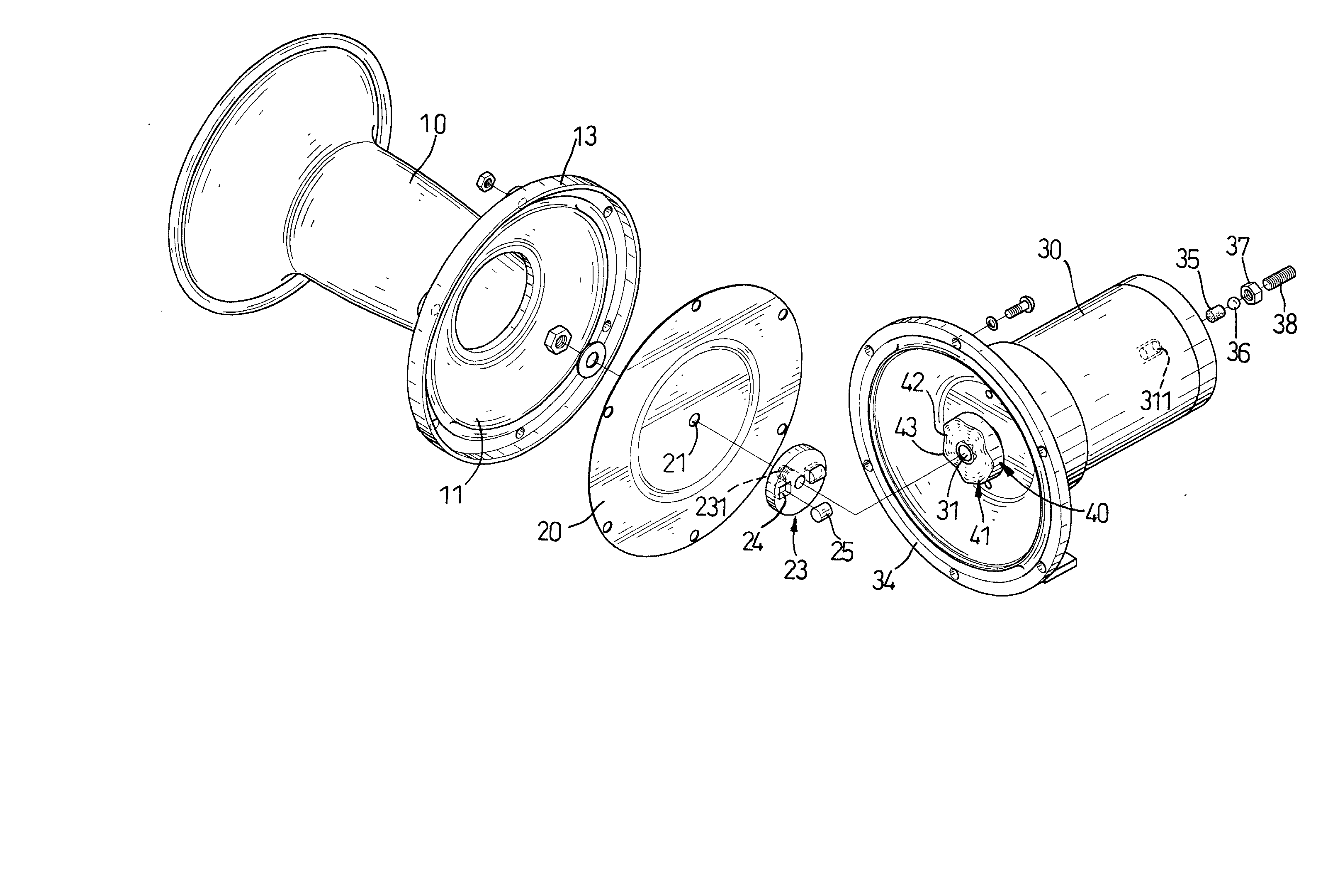

A vehicle horn has a bell having a circular plate formed at a rear end thereof, a vibration sheet mounted on the circular plate and a contact seat mounted on a central portion of the vibration sheet. A roller is rotatable about an axis through the center of the contact seat. A motor has an output axle extending through a rotor, and a flange formed at a front end thereof and engaged with the circular plate of the bell. A vibration seat is mounted on a front end of the output axle and faces the contact seat. The vibration seat has a wave-like surface being composed of a plurality of staggered concavities and convexities, and is engaged with the roller.
