Reinforced hydroform tube
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 29, 2000
filing date -
Nov 29, 2000
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

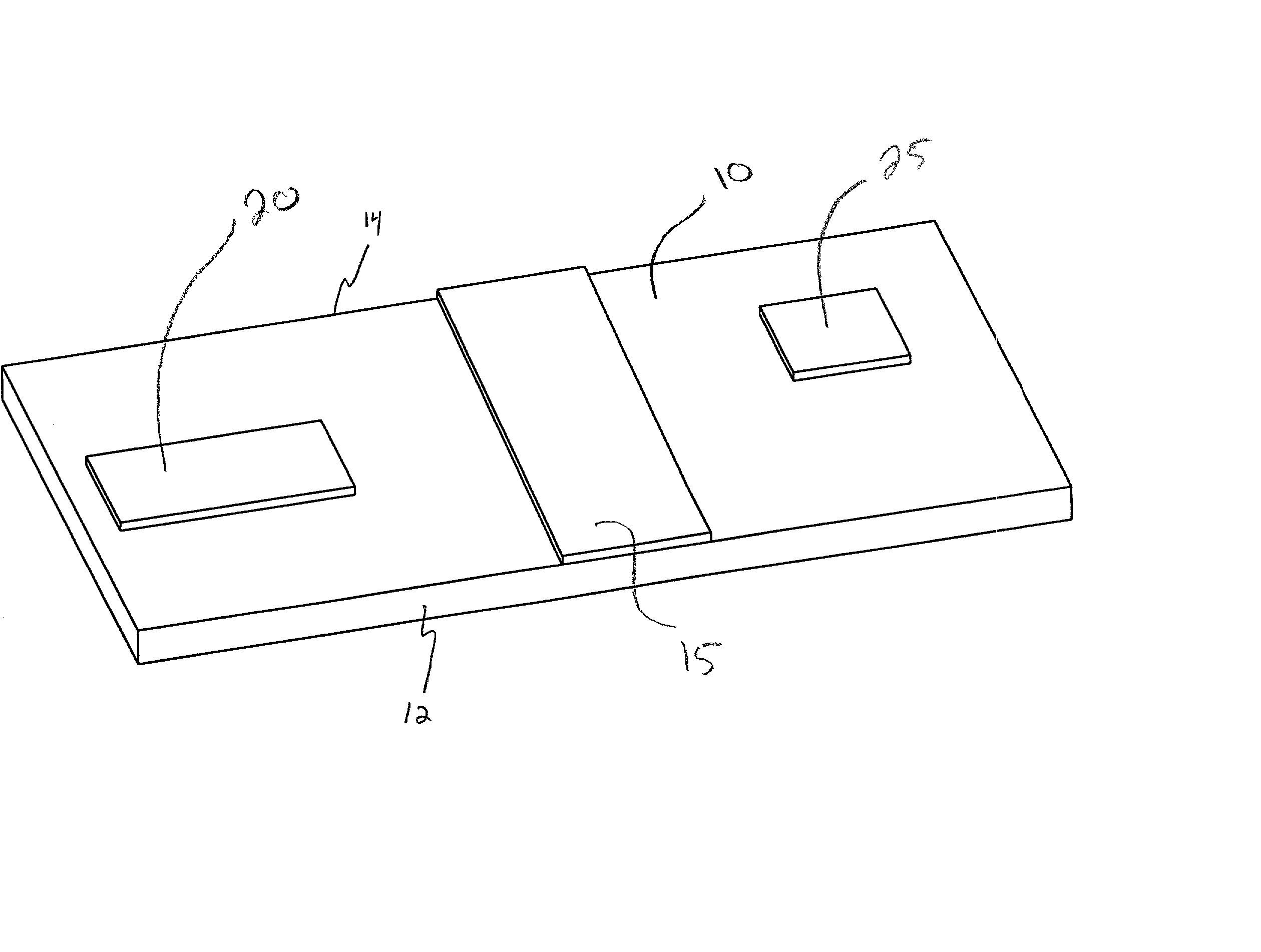

Selectively reinforced blanks are used in a hydroforming process to produce completed components having a predetermined shape and sufficient structural integrity to perform their desired function. To reinforce those components, reinforcing patches are added to the blank prior to hydroforming. Planar patches can be bonded to planar blanks or arcuate patches can be bonded to tubular blanks. In so doing, the hydroforming process produces a complete component, which does not require additional manufacturing steps to reinforce it. Additionally, by selectively using the reinforcing patches, the overall weight of the component is not unduly increased.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23K Class
- 4.54 % this patent is cited more than
- 23 Age
