Apparatus for forming and metering fluff pulp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 25, 2003
Grant Date -
May 23, 2002
app pub date -
Dec 26, 2000
filing date -
Dec 29, 1999
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

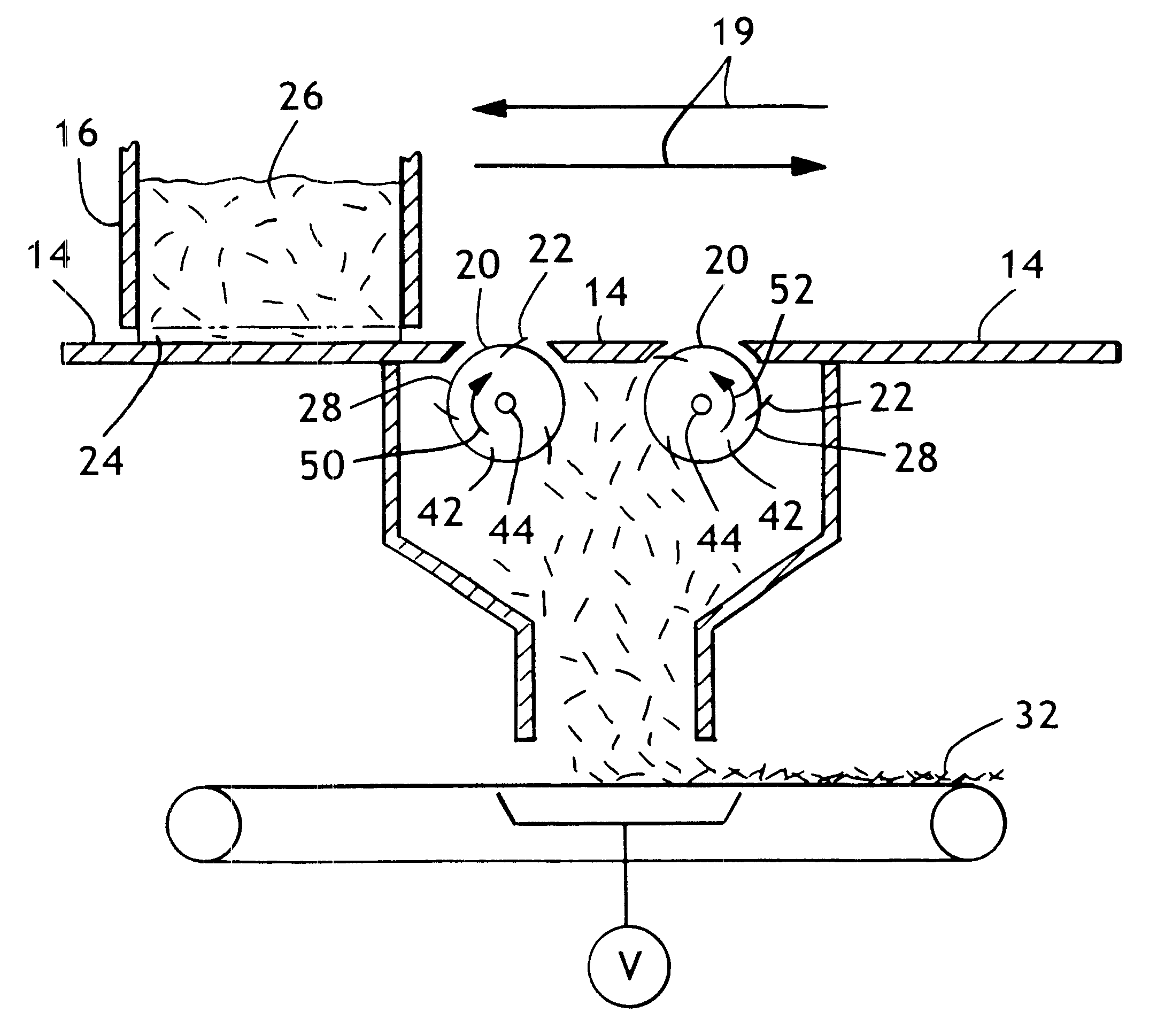

An apparatus for fiberizing bales of pulp into substantially dry fibers and fiber aggregates. One embodiment includes: a bale support member for supporting a bale of pulp, the bale support member defining two openings; two rotatable fiberizing assemblies having disrupting elements protruding through the openings an adjustable distance above the bale support member to contact a surface layer of the bale of pulp, the surface layer having a dimension parallel to the longitudinal axis of the fiberizing assembly, a transportation assembly for moving the bale of pulp back and forth along the bale support member and over the openings so that the disrupting elements contact a surface layer in the bale, an adjustable reciprocating assembly permitting adjustment of the frequency by which the transportation assembly moves back and forth over the opening.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
KIMBERLY-CLARK WORLDWIDE INC | 2300 WINCHESTER RD NEENAH WI 54956 |
International Classification(s)

- 2000 Application Filing Year
- D01G Class
- 18 Applications Filed
- 4 Patents Issued To-Date
- 22.23 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Koller, Harold Jay | Neenah, WI | 2 | 40 |
# of filed Patents : 2 Total Citations : 40 | |||
Tanner, James Jay | Winneconne, WI | 19 | 327 |
# of filed Patents : 19 Total Citations : 327 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 14 Citation Count
- D01G Class
- 93.94 % this patent is cited more than
- 22 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
