Hinge with built-in door stop
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 24, 2003
Grant Date -
Feb 28, 2002
app pub date -
Jun 28, 2001
filing date -
Jun 29, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

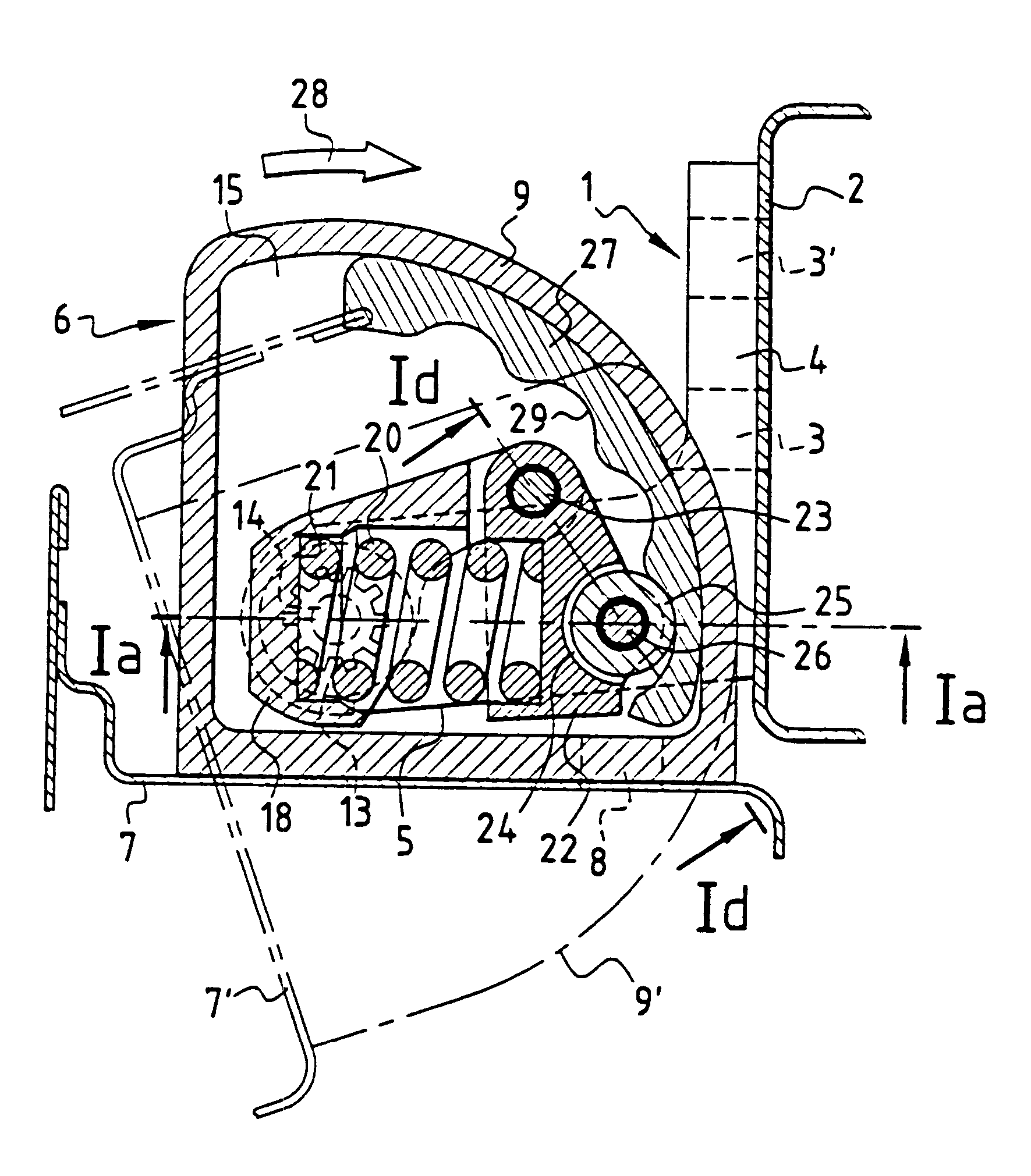

A vehicle door hinge assembly with a built-in doorstop mechanism, includes a fixed knuckle secured to the bodywork of the vehicle, and a moving knuckle secured to the door of the vehicle. The moving knuckle is hinged to the fixed knuckle about a pin. The hinge assembly also includes a notched cam secured to the moving knuckle, a contact surface that can be inserted in a notch of the cam during an operation of opening the door, a compression spring, a support connected to the fixed knuckle and against which one end of the compression spring bears, and a part hinged to the support about a pin passing through the support and the part hinged to the support and constituting a moving part, against which the other end of the compression spring bears.
First Claim
Other Claims data not available
