Method and component for forming an embedded resistor in a multi-layer printed circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 21, 2002
app pub date -
Mar 12, 2001
filing date -
Aug 18, 2000
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Abstract

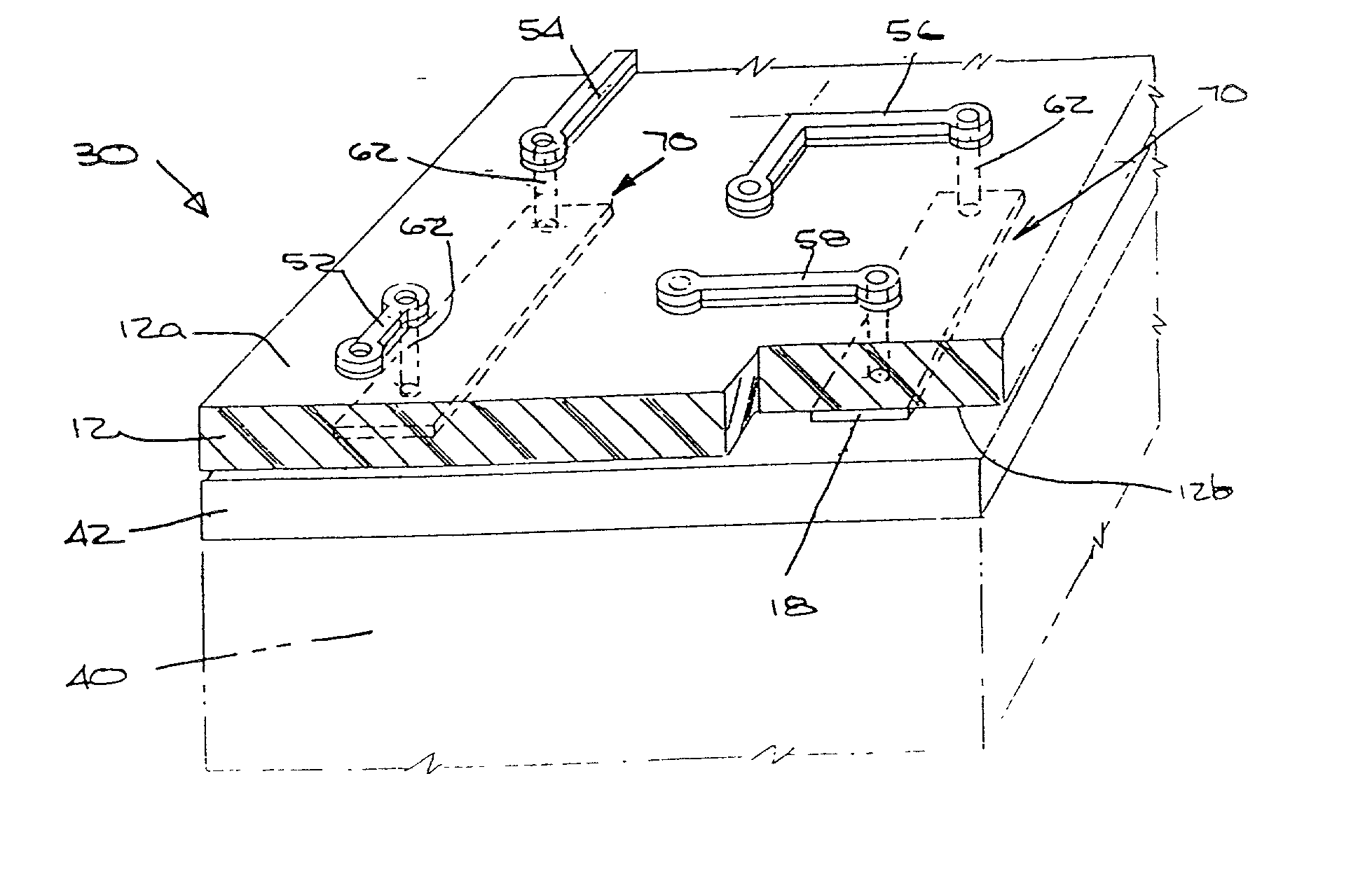

A component for use in forming a multi-layer printed circuit comprised of a film substrate formed of a first polymeric material. At least one layer of a flash metal is applied to a first side of the film substrate, and at least one layer of copper is applied on the layer of flash metal. A discrete area of an organic molecular semiconductor material is disposed on a second side of the film substrate.
