Dockleveler holdown mechanism and method for installing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 1, 2001
app pub date -
May 23, 2001
filing date -
Sep 23, 1999
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

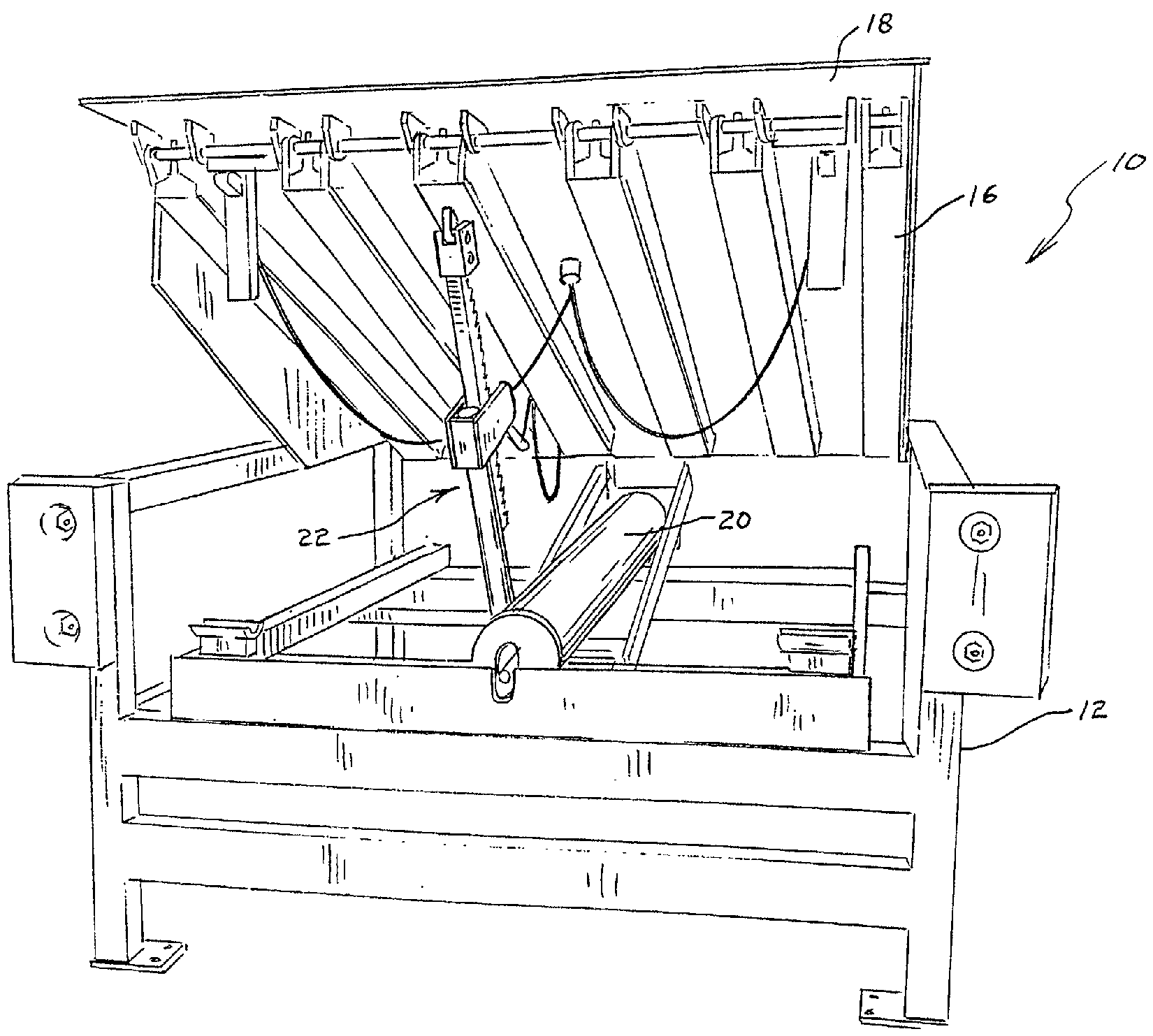

A dockleveler comprising a support structure, a ramp connected to the support structure and movable between raised and lowered positions, a upward biasing mechanism connected to the ramp, and a holdown mechanism connected between the ramp and the support structure. The holdown mechanism includes a spring assembly having an extension spring that increases in length as the ramp moves toward the raised position. The holdown mechanism further includes an adapter member interconnecting the holdown mechanism with at least one of the ramp and the support structure. The adapter member is separable from the holdown mechanism to allow the attachment of different adapter members to the holdown mechanism without cutting or welding. The extension spring is housed within a first hollow member and a second hollow member positioned at least partially within the first hollow member and movable relative to the first hollow member.
First Claim
Other Claims data not available
