Omnidirectional loudspeaker and compression driver therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2024
Grant Date -
Dec 1, 2022
app pub date -
Aug 9, 2022
filing date -
Oct 16, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

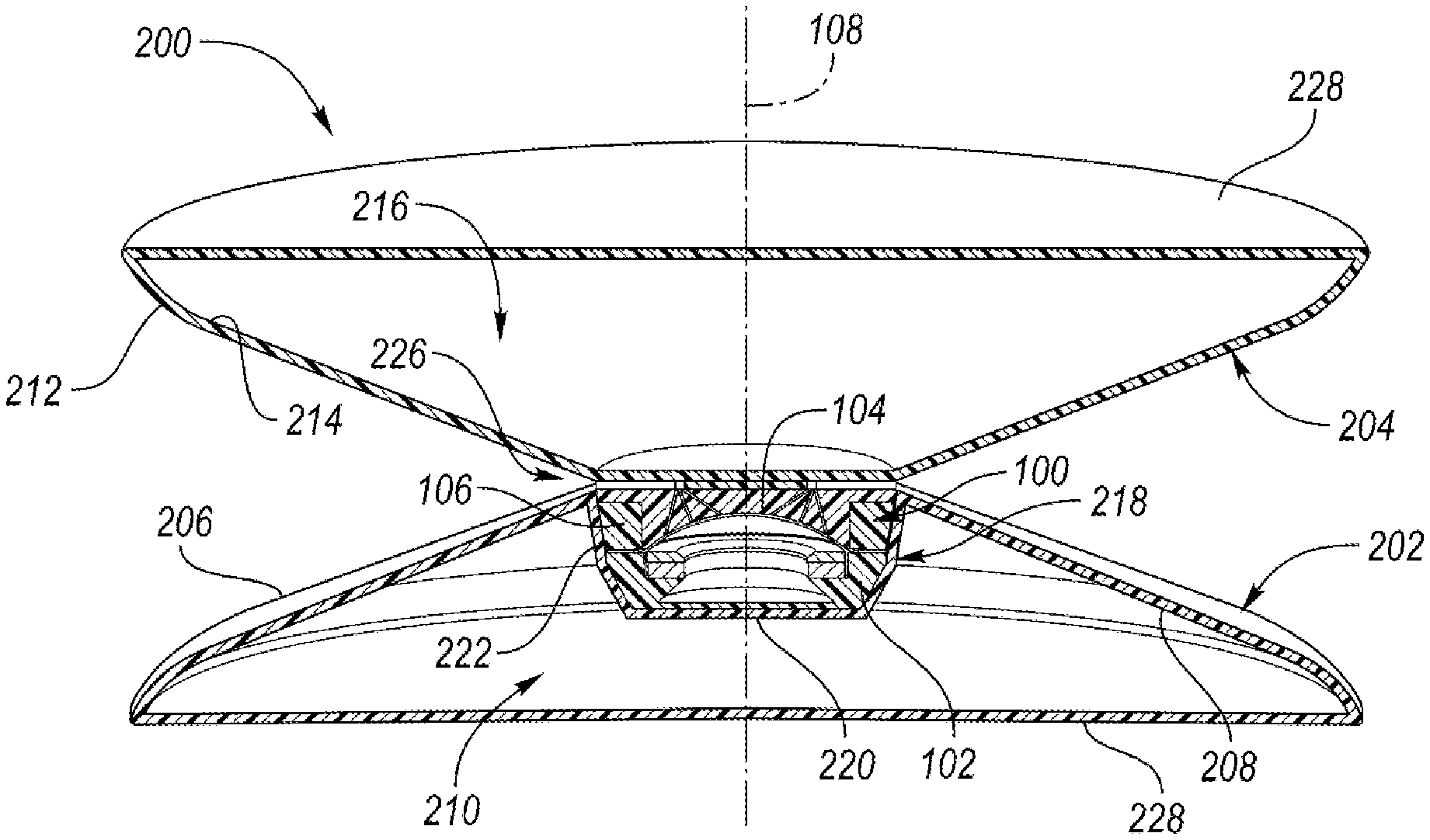

A compression driver for an omnidirectional loudspeaker includes a motor assembly and a dome diaphragm disposed coaxially above and operably connected to the motor assembly, the diaphragm having a convex surface and a concave surface. The compression driver includes a phasing plug having a top portion and a bottom portion having a concave bottom surface disposed adjacent the convex surface of the diaphragm and defining a compression chamber therebetween. The phasing plug includes a plurality of conduits extending through the bottom portion for sound waves to travel and converging to form an annular exit, the top portion including a plurality of radially expanding channels acoustically connected to the annular exit. Actuation of the diaphragm by the motor assembly generates sound waves within the compression chamber which travel through the annular exit and the radially-expanding channels to create a generally horizontal 360° radiation pattern of the sound waves from the compression driver.
