Methods and apparatus to provide visual information associated with welding operations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2024
Grant Date -
Jul 13, 2023
app pub date -
Jan 3, 2023
filing date -
Mar 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance

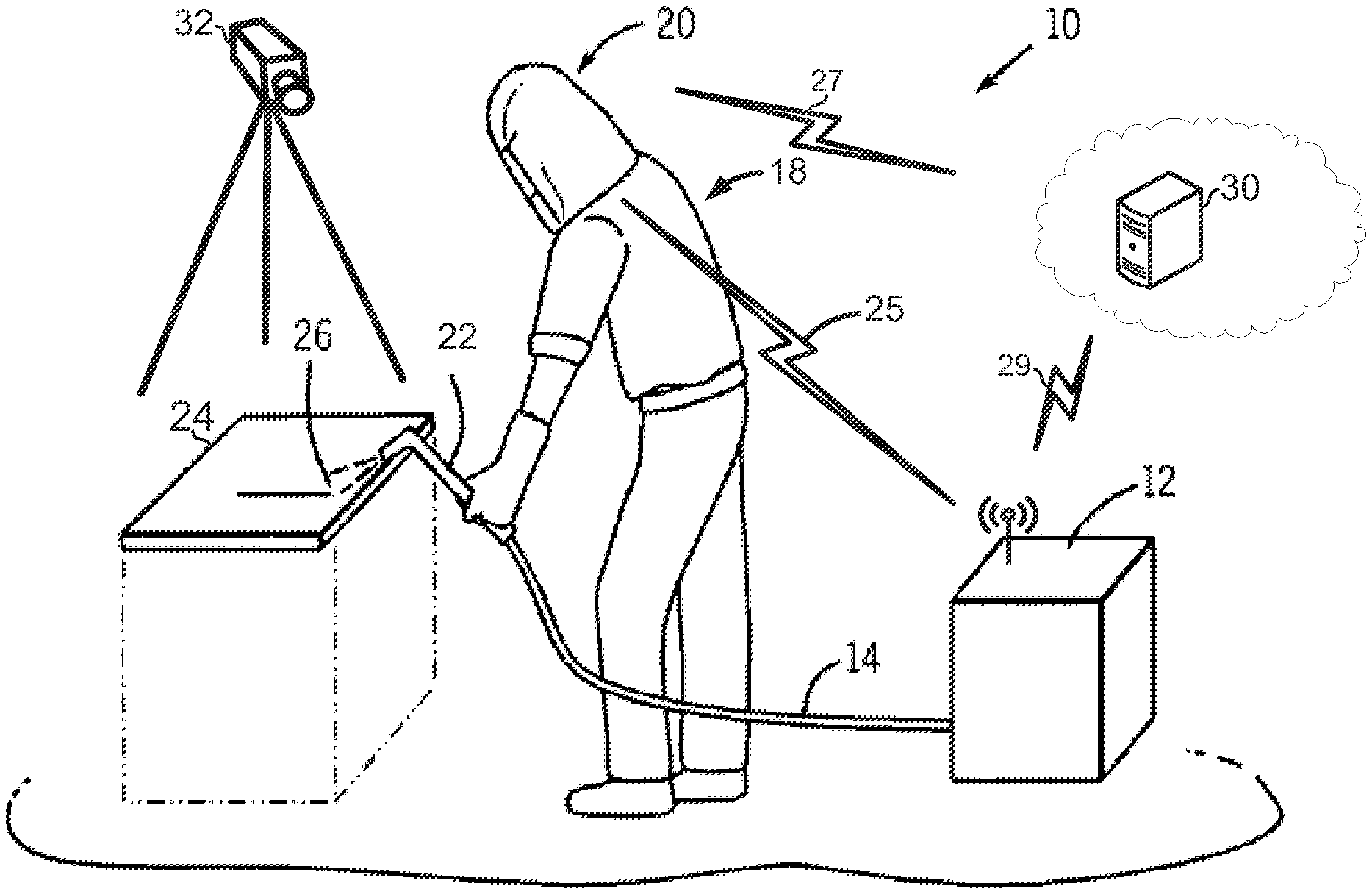

Abstract
Methods and apparatus to provide visual information associated with welding operations are disclosed. An weld training system includes a display, a camera, a communications device, and a welding helmet. The communications device communicates with welding equipment. The welding helmet has a view port. The communications device is configured to hold the camera, the communications device, and the display such that, when the welding helmet is worn by a wearer, the display is viewable by the wearer, the camera has a view through the view port such that the display displays to the wearer images taken by the camera through the view port and displays a simulated object generated based on information received from the welding equipment via the communications device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2023 Application Filing Year
- G09B Class
- 869 Applications Filed
- 213 Patents Issued To-Date
- 24.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09B Class
- 0 % this patent is cited more than
- 1 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 2, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2035 |
