Power sources and transmission networks for auxiliary equipment onboard hydraulic fracturing units and associated methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2024
Grant Date -
Jun 29, 2023
app pub date -
Mar 2, 2023
filing date -
Sep 13, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

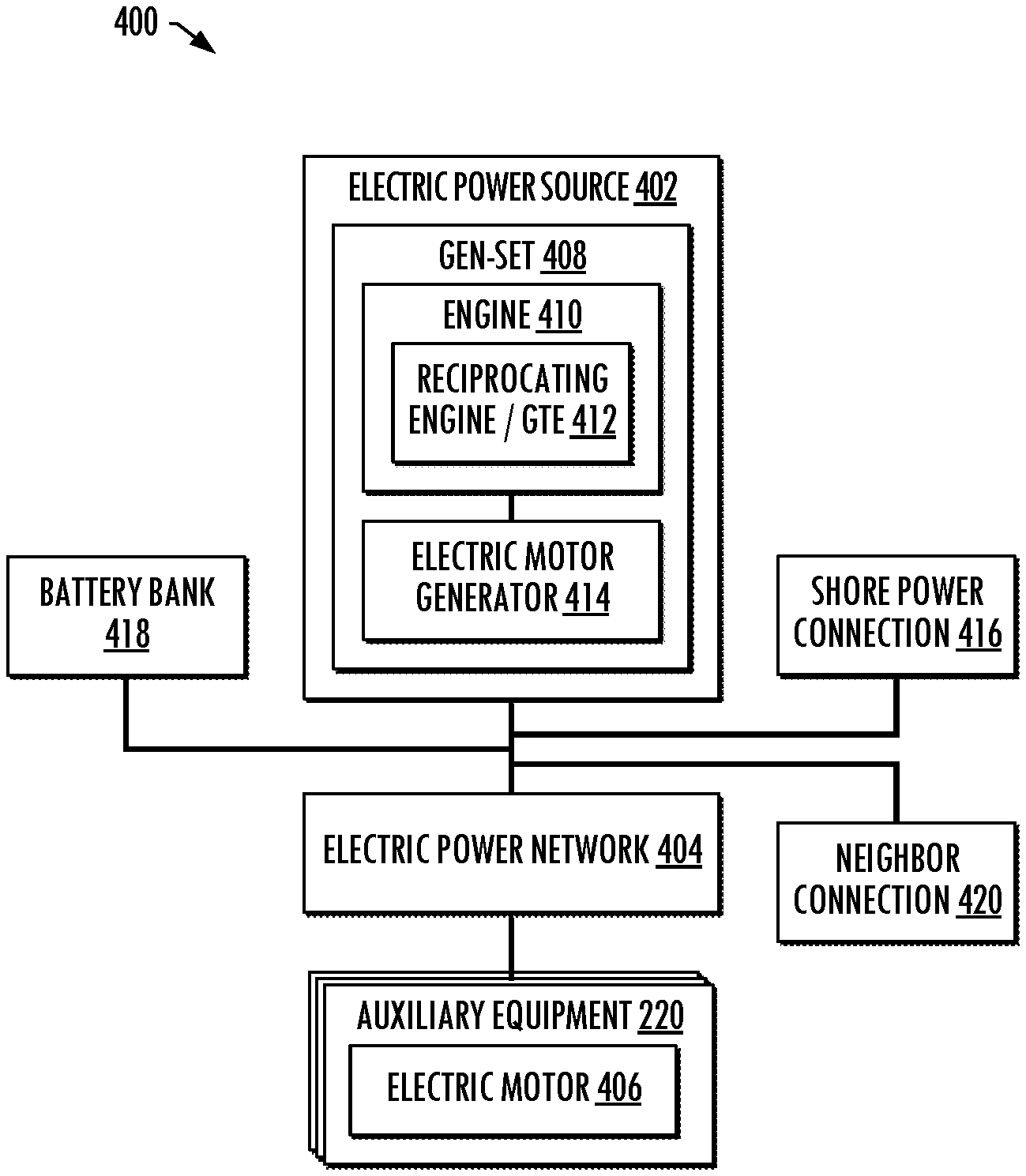

Embodiments of systems and methods disclosed provide a hydraulic fracturing unit that includes a reciprocating plunger pump configured to pump a fracturing fluid and a powertrain configured to power the reciprocating plunger pump. The powertrain includes a prime mover and a drivetrain, the prime mover including a gas turbine engine. The hydraulic fracturing unit also includes auxiliary equipment configured to support operation of the hydraulic fracturing unit including the reciprocating plunger pump and the powertrain. A power system is configured to power the auxiliary equipment. The power system includes a power source and a power network. The power source is configured to generate power for the auxiliary equipment. The power network is coupled to the power source and the auxiliary equipment, and configured to deliver the power generated by the power source to the auxiliary equipment. Associated systems including a plurality of hydraulic fracturing units are also provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2023 Application Filing Year
- H02K Class
- 2043 Applications Filed
- 369 Patents Issued To-Date
- 18.07 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02K Class
- 95.13 % this patent is cited more than
- 1 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 2, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2035 |
