Collapsible structural frame system for a sheet-like building material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2024
Grant Date -
Oct 7, 2021
app pub date -
Aug 30, 2019
filing date -
Aug 31, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

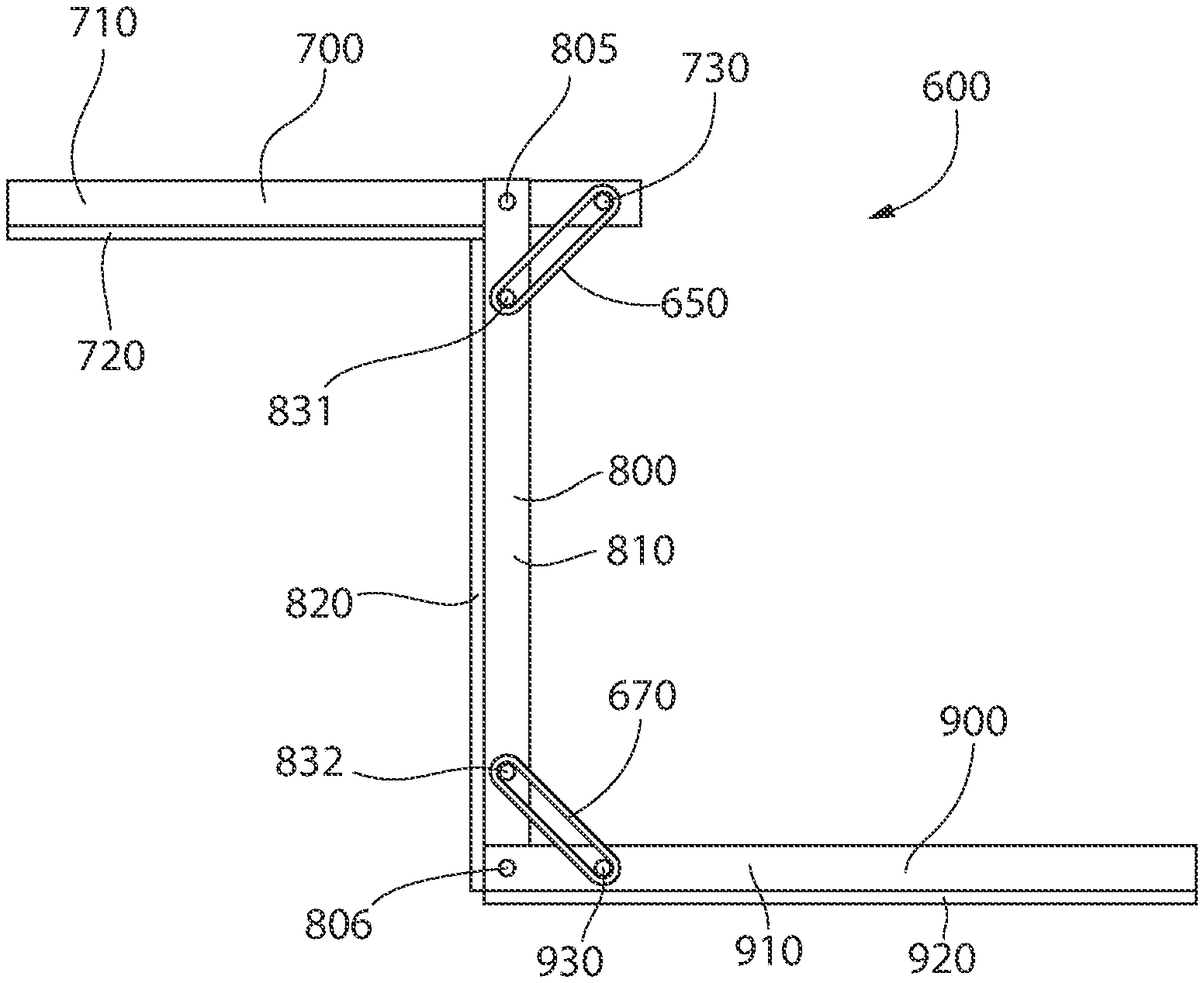

A collapsible structural frame configured to provide a structure to which building material sheets are attached to form a surface. The frame includes a first frame portion that corresponds to a first portion of the surface and is configured to receive a first sheet of the building material and a second frame portion that corresponds to a second portion of the surface and is configured to receive a second sheet of the building material. A pivoting mechanism attaches the second frame portion to the first frame portion and has a pivoting axis. The pivoting mechanism permits the second frame portion to rotate about the pivoting axis relative to the first frame portion from an undeployed state to a deployed state. A locking mechanism may fix a relative position of the first frame portion and the second frame portion in the deployed state.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- E04B Class
- 1238 Applications Filed
- 821 Patents Issued To-Date
- 66.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E04B Class
- 0 % this patent is cited more than
- 1 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 2, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2035 |
