Rear hard enclosure for a soft top
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2023
Grant Date -
Jan 5, 2023
app pub date -
Sep 8, 2022
filing date -
Mar 2, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

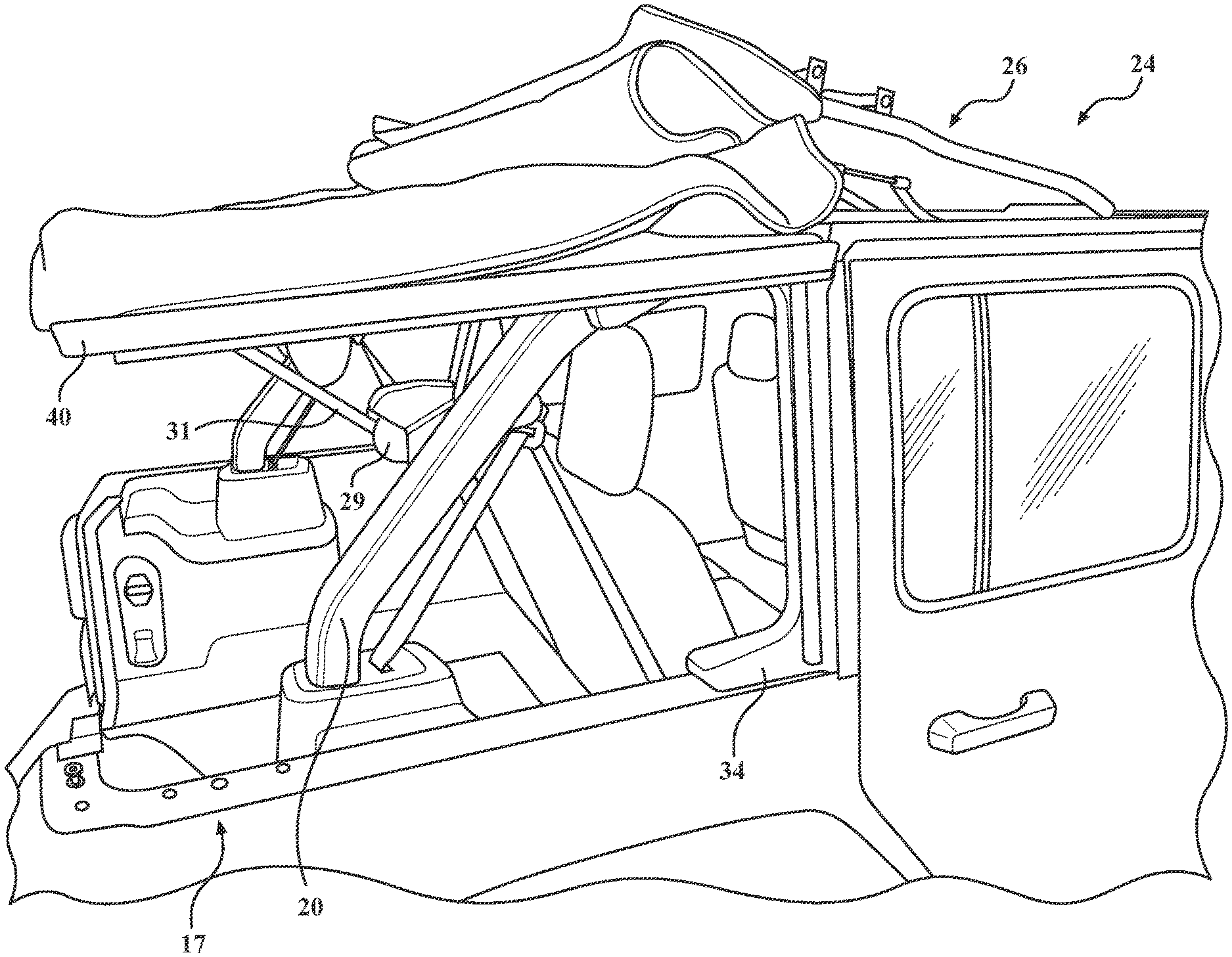

A panel top assembly adapted for a vehicle including a pivotal portion that is rotatable between a closed position and open sunroof position, the pivotal portion is coupled to guide assemblies to selectively slide rearward to another top open position. There is provided a removable hard rear window, a rear hard drip rail; and a pair of removable hard rear side window assemblies on the side of the vehicle that wrap around to the back of the vehicle creating clear rear hard corners and that are also in sealing engagement to the rear window. The rear hard drip rail and pivotal portion selectively drop down at an angle into the rear cargo area of the vehicle when a fully open top experience is desired.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- B60J Class
- 622 Applications Filed
- 305 Patents Issued To-Date
- 49.04 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60J Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 12, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2035 |
