Arrangement for pressing liquid-containing raw materials, having a flexible press container
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2023
Grant Date -
Sep 14, 2023
app pub date -
Aug 31, 2021
filing date -
Sep 30, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

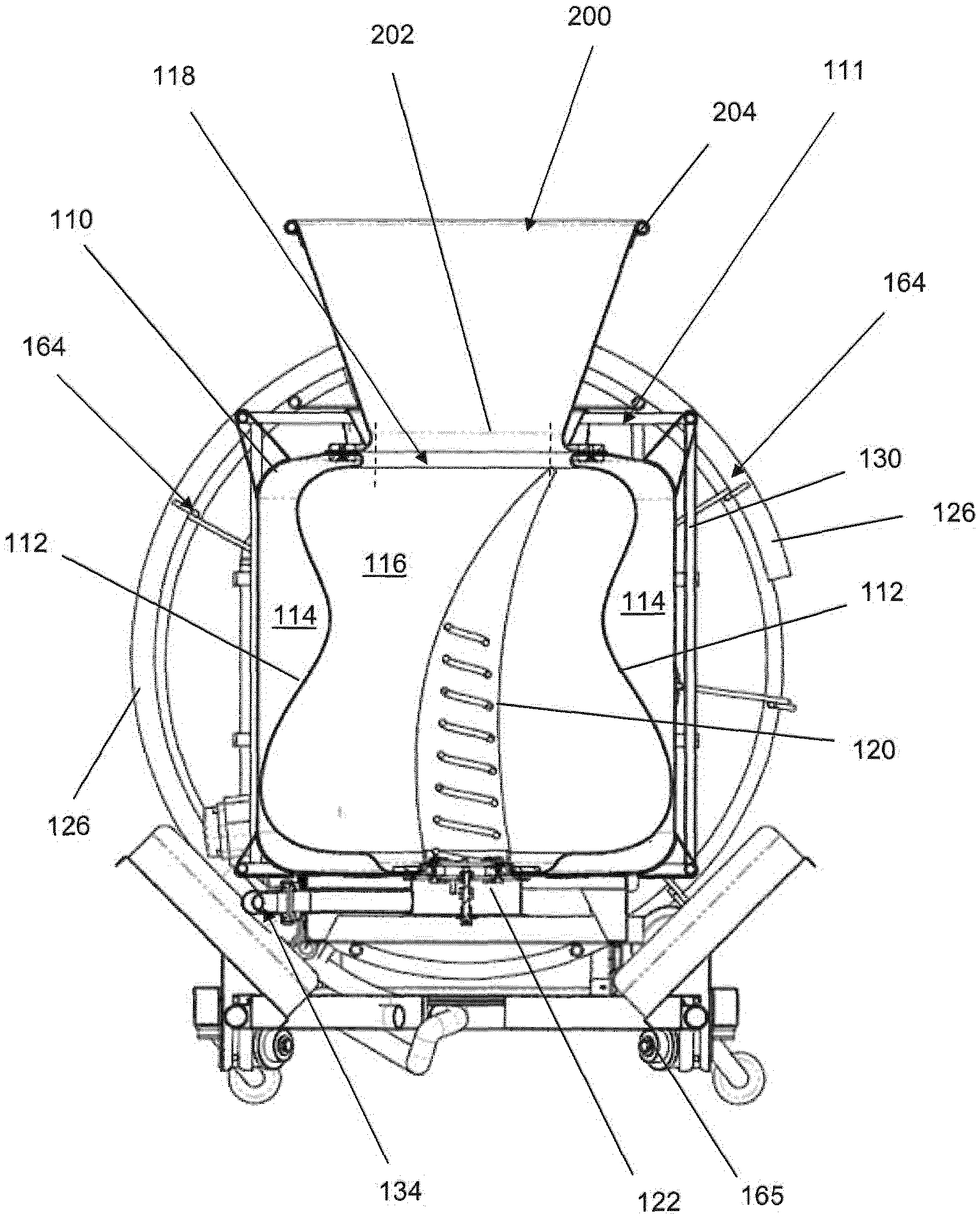

An arrangement for pressing liquid-containing raw materials includes a press container which is rotatable about an axis of rotation and the interior of which is subdivided by a pressing membrane into a pressure-medium space and a pressing medium chamber. A filling and emptying opening, which can be closed in a pressure-tight manner and via which liquid-containing material to be pressed can be introduced into the pressing medium chamber, is arranged in the press container. At least one drainage element is located in the pressing medium chamber. The interior of the drainage element communicates with a juice outlet of the press container, via which liquid juice can be supplied to a juice collecting vessel during a pressing process. The press container is formed of a pressure-resistant flexible plastics material and is received in an inherently rigid support framework that is rotatable about the axis of rotation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- C12G Class
- 75 Applications Filed
- 21 Patents Issued To-Date
- 28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C12G Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 5, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2035 |
