Filter press and method for separating the solid components from the liquid components of a slurry
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2023
Grant Date -
Oct 8, 2020
app pub date -
Oct 18, 2018
filing date -
Oct 18, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

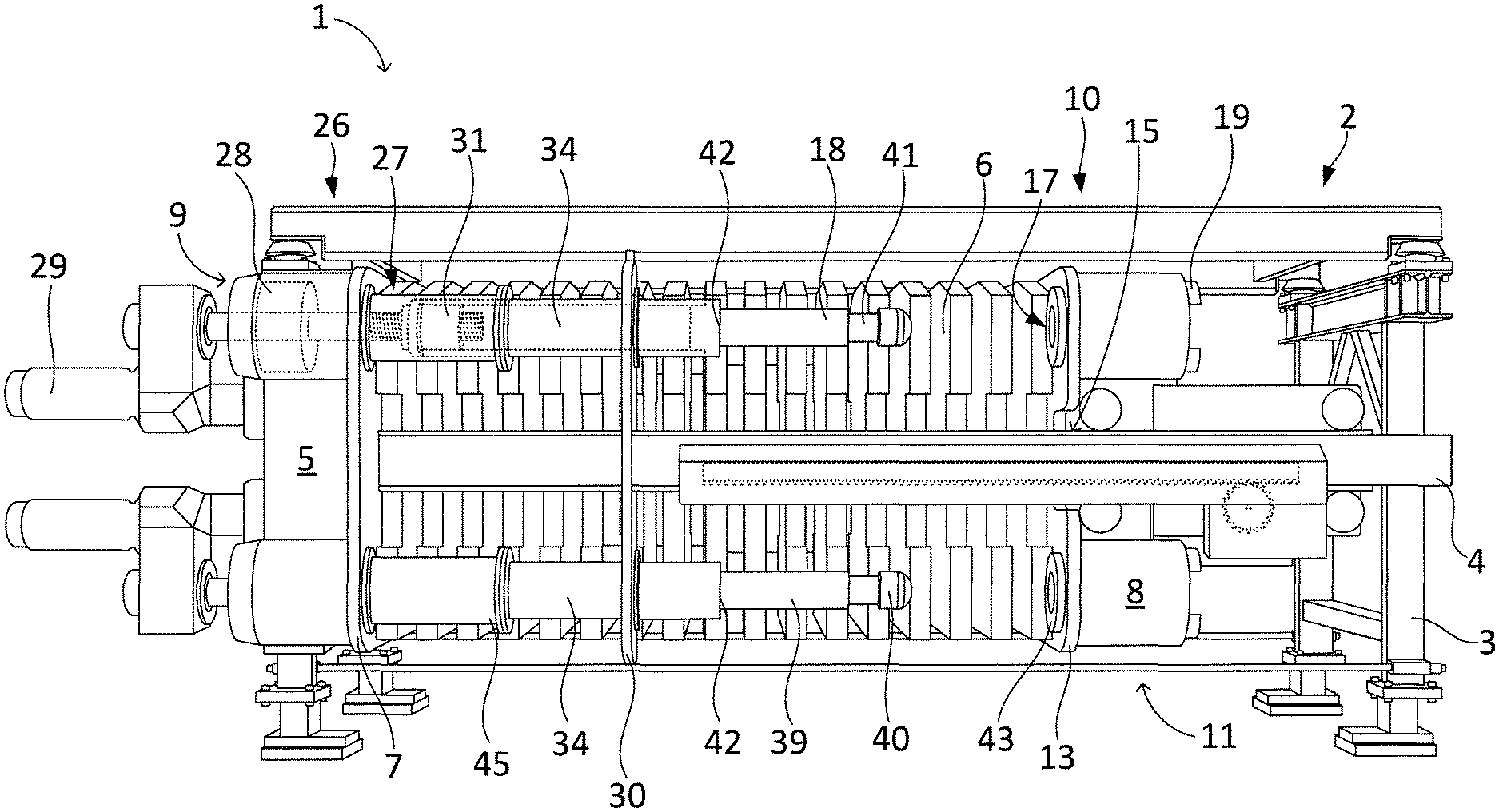

A filter press is disclosed for separating solid components from liquid components of a slurry. The filter press includes side beams and a plurality of filter plates oriented at right angles to the longitudinal direction of the side beams. The filter plates are adapted to move along the side beams. A stationary end is arranged on one end of the side beams and a movable head is adapted to transport the filter plates along the side beams. The filter press includes a press system adapted to exert a closing pressure on the filter plates to press the filter plates against each other. The press system further includes at least one electrically driven actuator adapted to generate an axially directed force on the filter plates by the movable head. The disclosure also relates to a method for separating the solid components from the liquid components of a slurry.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B30B Class
- 214 Applications Filed
- 142 Patents Issued To-Date
- 66.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B30B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 5, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2035 |
