Systems, devices and methods of making surgical sutures having reformed, reduced diameter, offset tips
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2023
Grant Date -
N/A
app pub date -
Dec 15, 2021
filing date -
Nov 28, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

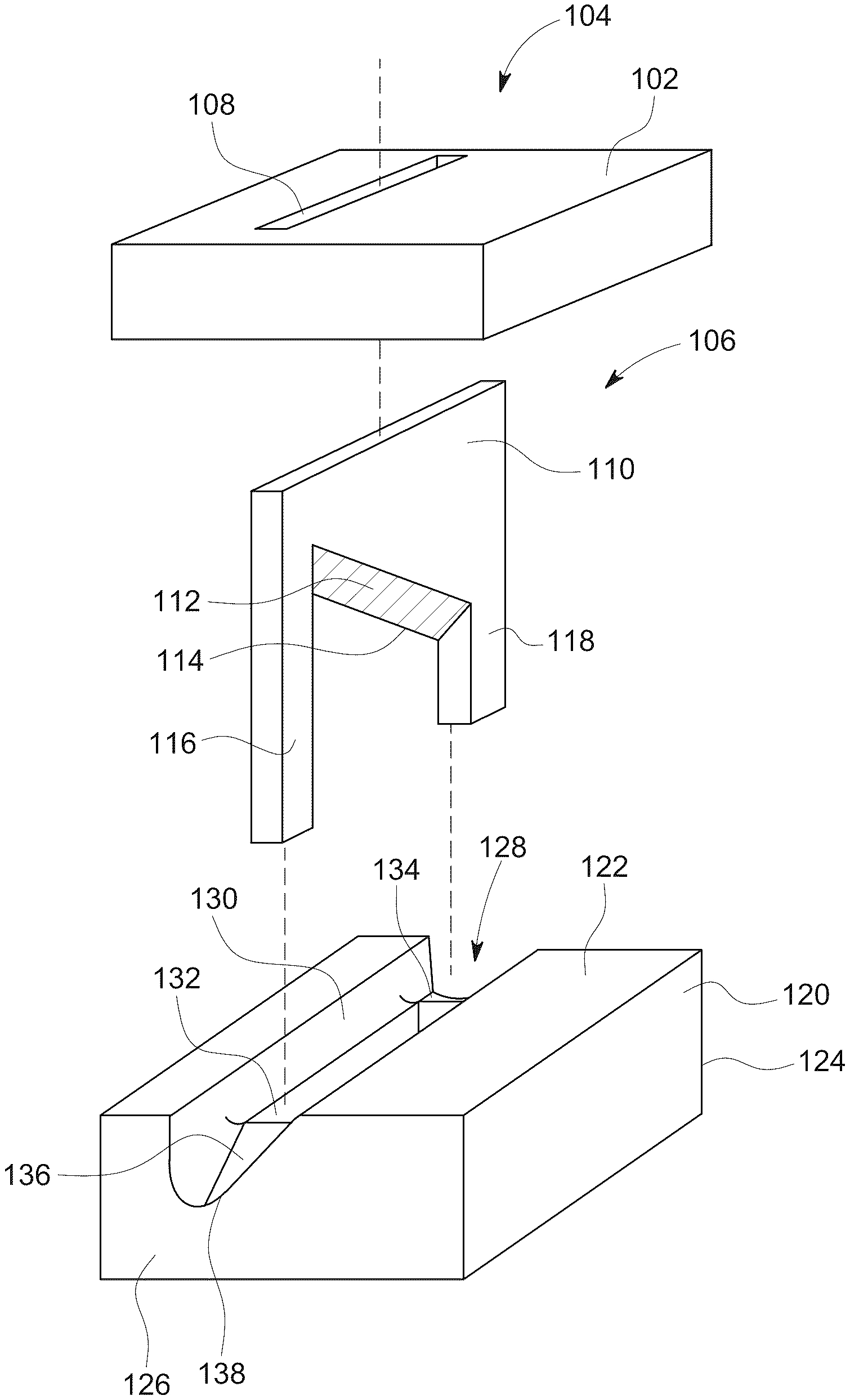

A system for making a surgical suture having a reformed tip includes a receiver die having a top surface, a bottom surface, and an elongated channel formed in the top surface that extends between first and second ends of said receiver die. The elongated channel includes a suture channel having a first end and a second end, a first sloping surface that extends downwardly between the first end of the suture channel and the first end of the receiver die, and a second sloping surface that extends downwardly between the second end of the suture channel and the second end of the receiver die. The system includes an upper die having a top surface and a bottom surface that opposes the top surface of the receiver die. The system has an open die position in which the bottom surface of the upper die is spaced away from the top surface of the receiver die and a closed die position in which the bottom surface of the upper die is in contact with the top surface of the receiver die. A cutting element is coupled with the receiver die and the upper die.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- A61B Class
- 18811 Applications Filed
- 8560 Patents Issued To-Date
- 45.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 5, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2035 |
