Calculation method of ultimate moment resistance and moment-rotation curve for steel beam to concrete-filled steel tube column connections with bidirectional bolts
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2023
Grant Date -
Dec 31, 2020
app pub date -
Dec 14, 2018
filing date -
Nov 23, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

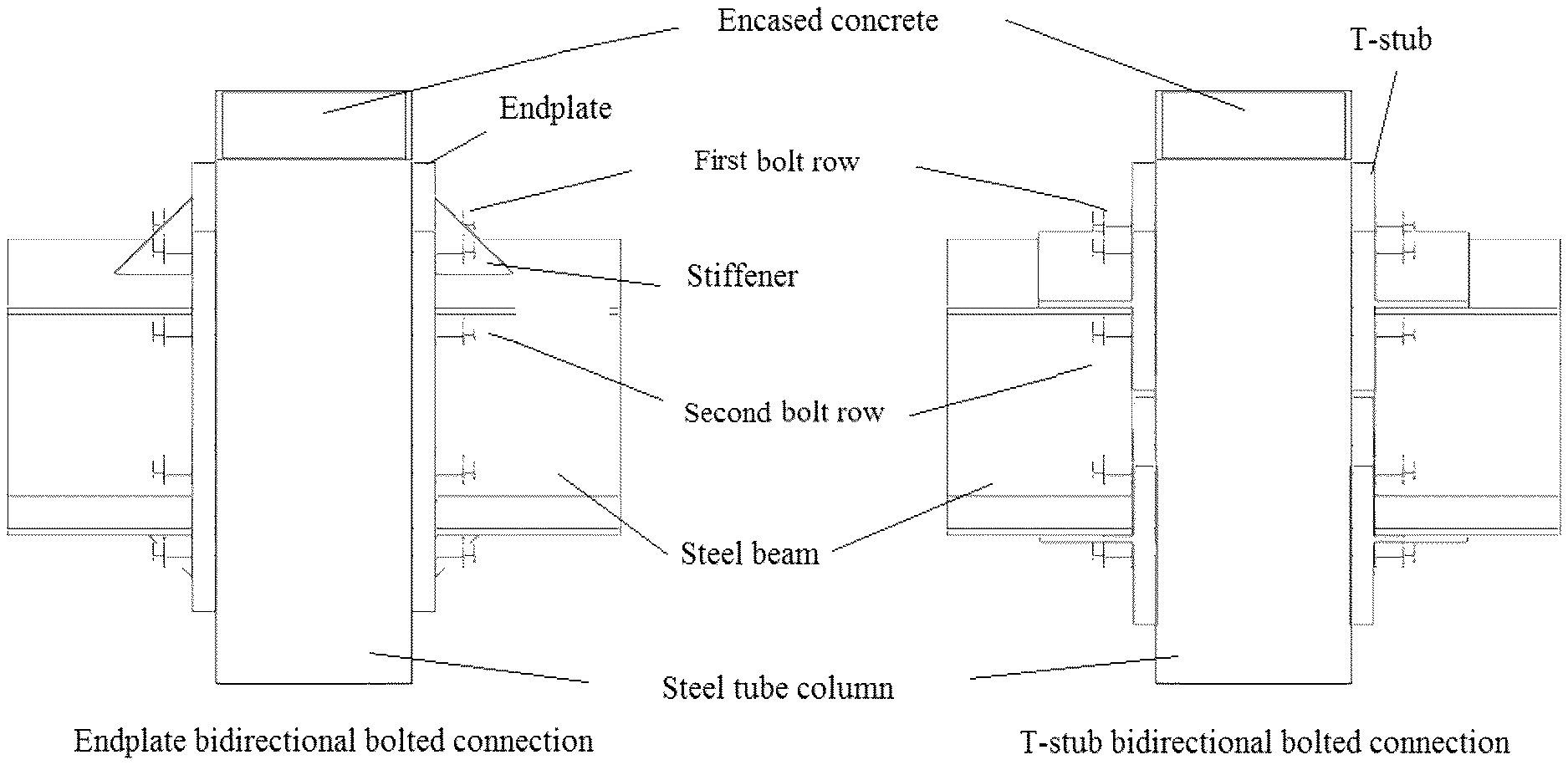

The invention discloses a calculation method of ultimate moment resistance and moment-rotation relation for steel beam to concrete-filled steel tube column connections with bidirectional bolts, wherein the calculation method as follows: calculate ultimate moment resistance values of the connection for different failure modes, i.e. yielding of the endplate or T-stub in bending, failure of bolts in tension, failure of column in transverse compression, failure of panel zone in shear, and yielding of the steel beam in bending; the smallest one in the five ultimate moment resistance values is taken as the ultimate moment resistance of the connection; obtain the initial rotational stiffness of the connection by the test, simulation or theoretical calculation; then, the moment-rotation curve of the connection is obtained by substituting the initial rotational stiffness and the ultimate moment resistance into the proposed exponential model for the moment-rotation relation.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01L Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 21, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2035 |
