Transmission assembly with electrical machine unit for improved shift quality
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2023
Grant Date -
Jun 1, 2023
app pub date -
Nov 30, 2021
filing date -
Nov 30, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

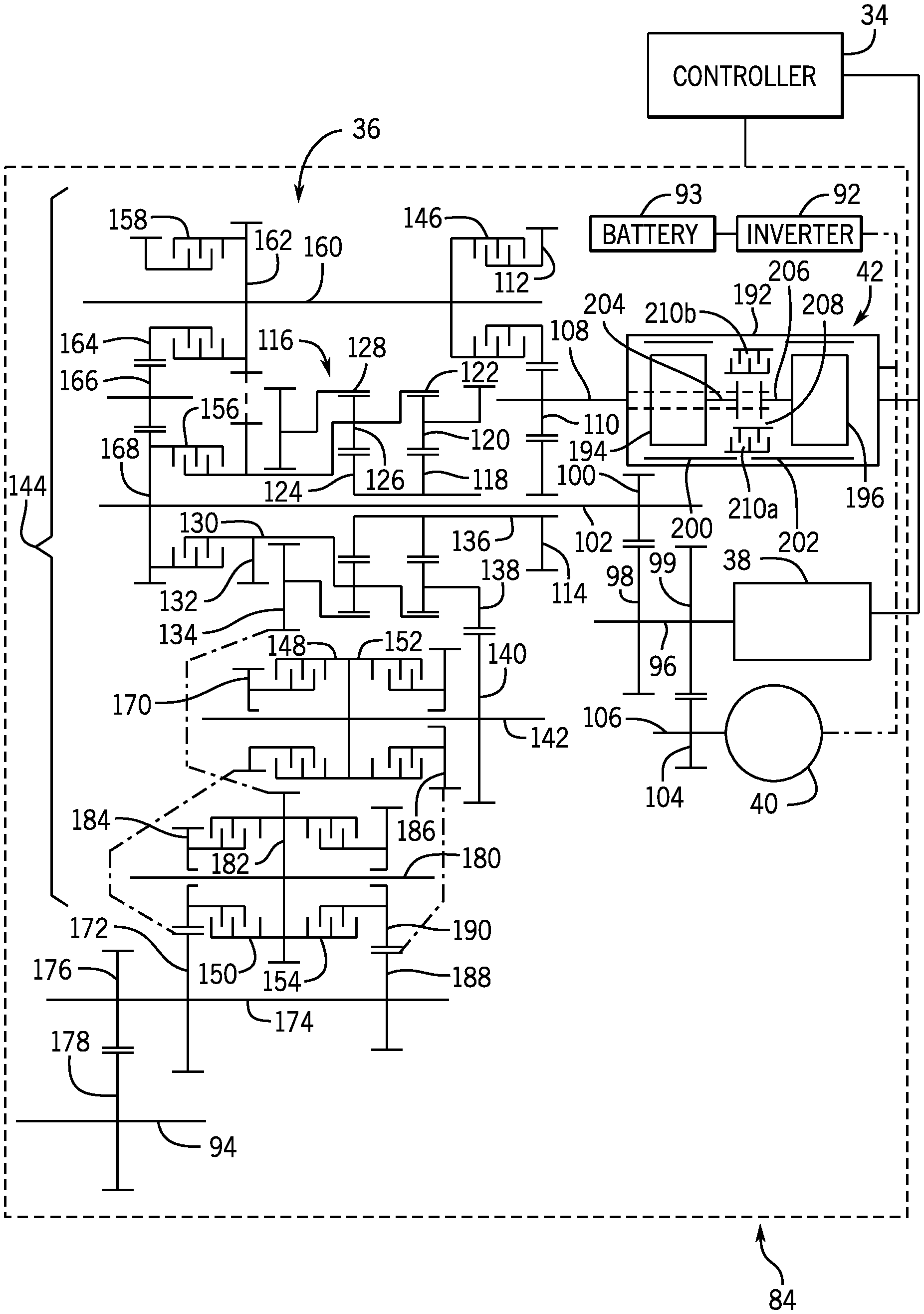

A transmission assembly for a work vehicle having an engine includes a variator operably connected to the engine, a gear arrangement configured to provide a selective gear reduction for transmission of output power from the variator to an output shaft, and an electrical machine unit. The electrical machine unit further includes a main shaft operably connected to the variator, a first rotor configured to rotatably drive a first shaft, a second rotor configured to rotatably drive a second shaft, and a clutch configured to selectively couple the first shaft or the second shaft, or both the first shaft and the second shaft, to the main shaft. The clutch, the first rotor, and the second rotor are operable to control a speed and rotational direction of the main shaft in providing rotational power to the variator.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2021 Application Filing Year
- H02K Class
- 2848 Applications Filed
- 1437 Patents Issued To-Date
- 50.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 21, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2035 |
