Folding knife
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2023
Grant Date -
N/A
app pub date -
Dec 23, 2020
filing date -
Nov 12, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

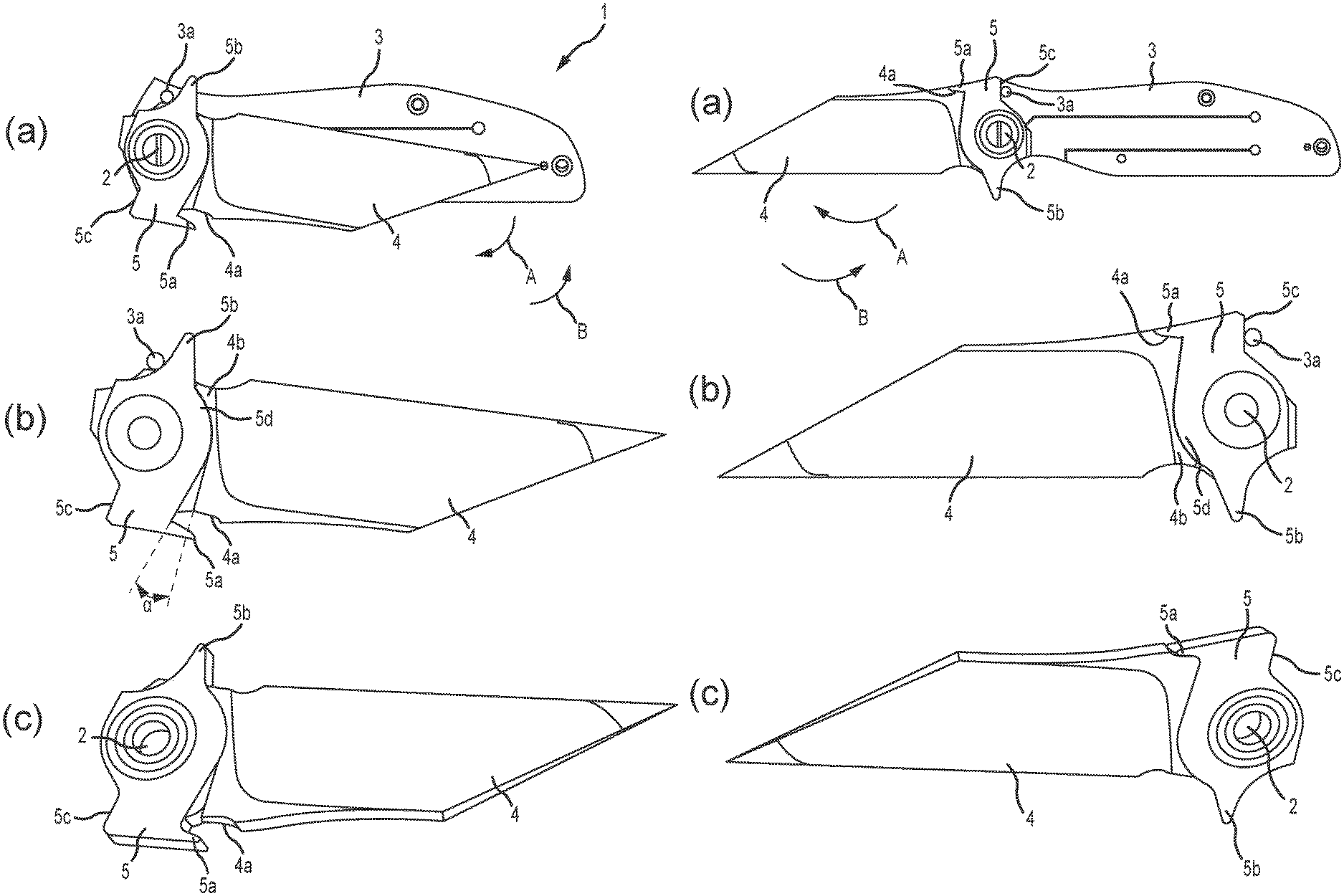

A folding knife includes a movable piece that is attached to a blade and a handle so as to be relatively rotatable by a specific rotation angle with respect to the blade, and to rotate with respect to the handle together with the blade outside the specific rotation angle; a notch or a recess formed at a position near a rotating shaft portion on the back side of the blade; a protrusion that is formed at a position on the movable piece and in a shape corresponding to the notch or recess of the blade; and a rotation mechanism including the rotating shaft portion that allows the movable piece to rotate with respect to the blade only within a specific rotation angle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B26B Class
- 385 Applications Filed
- 237 Patents Issued To-Date
- 61.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B26B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 21, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2035 |
