Vehicle glove box latch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2023
Grant Date -
May 13, 2021
app pub date -
Apr 2, 2019
filing date -
Apr 3, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

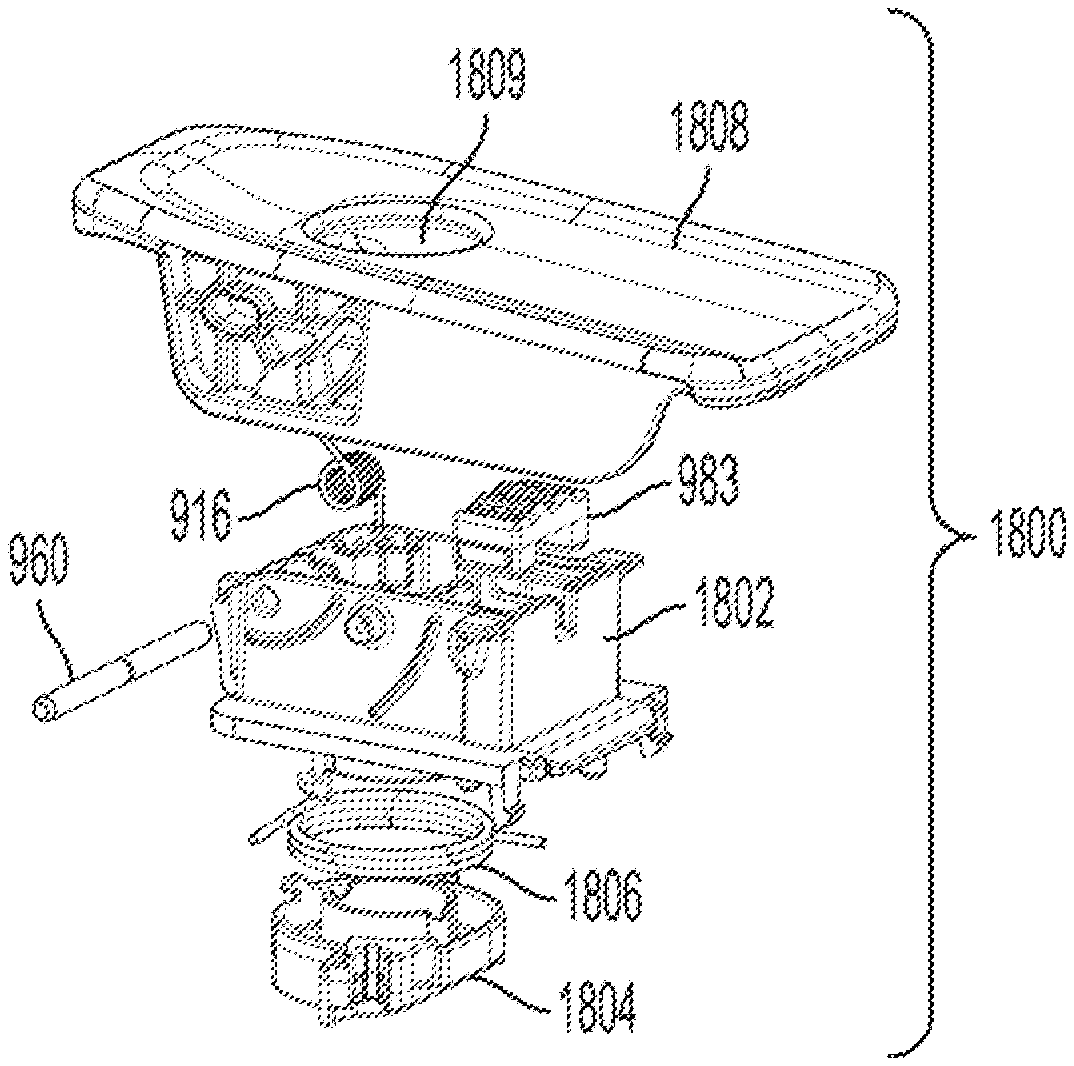

A vehicle glove box latch includes a housing, a paddle pivotably connected to the housing, a rotor pivotably connected to the housing, a pawl coupled to the rotor and having an end that is engaged with an opening in the vehicle, and a lock barrel mounted to the housing for locking and unlocking the vehicle glove box latch. In a locked state of the lock barrel, the pawl cannot be disengaged from the opening in the vehicle. In an unlocked state of the lock barrel, the pawl can be disengaged from the opening for opening the vehicle glove box. The lock barrel, the rotor and the rotor mounting portion are concentrically aligned along an axis, which reduces the depth of the latch, which reduces the space in the glove box necessary for accommodating the latch, thereby resulting in an increase in the available storage space in the glove box.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- E05B Class
- 1193 Applications Filed
- 809 Patents Issued To-Date
- 67.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 14, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2035 |
