Combination switch and sliding bolt lock wall safe imitating a circuit breaker panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2023
Grant Date -
N/A
app pub date -
Jul 27, 2021
filing date -
Jul 28, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

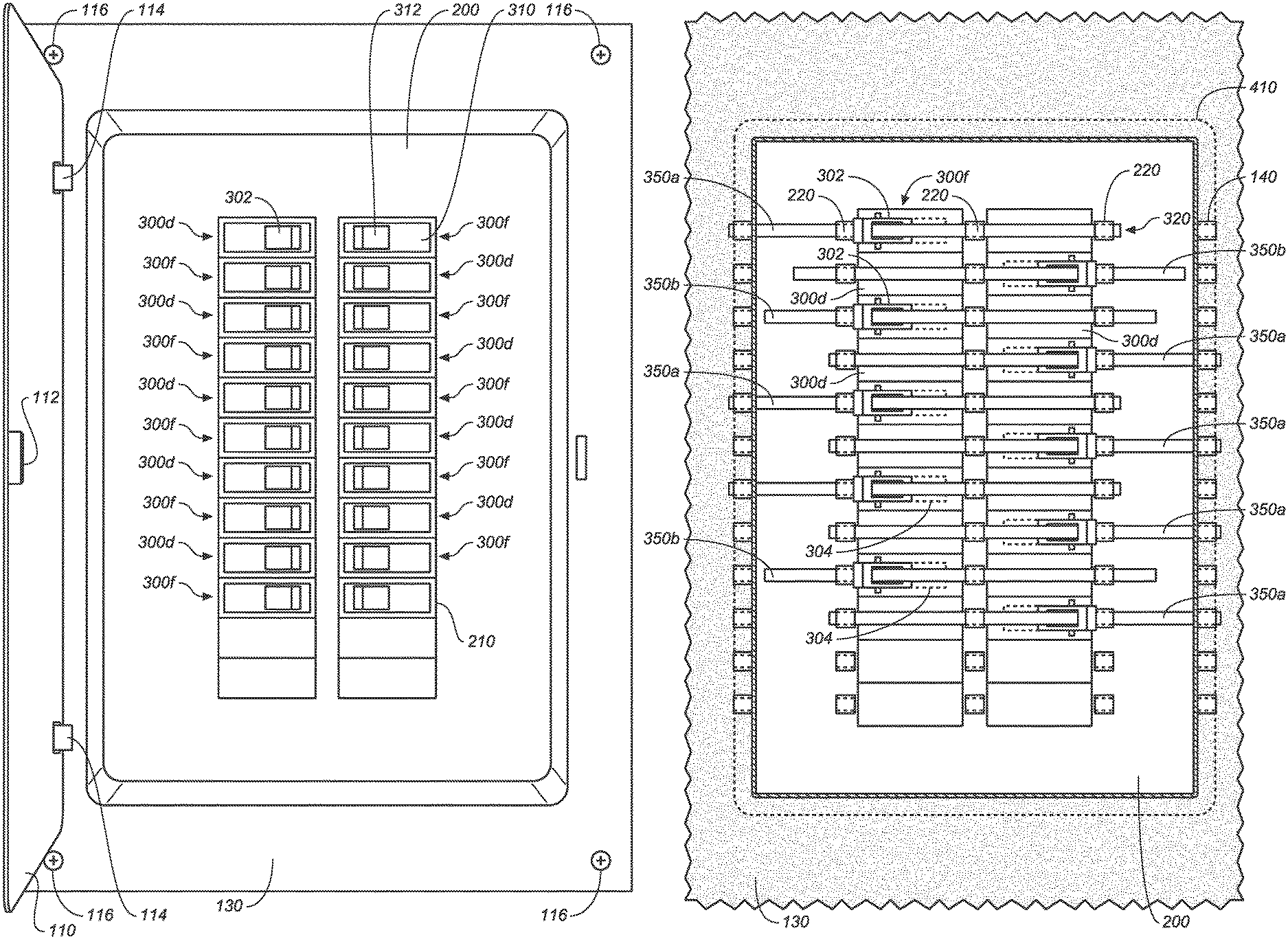

A combination faux switch and sliding bolt lock includes one or more imitation switches mounted on a cover to an enclosure, the cover and switches resembling a circuit breaker panel, each switch lock having a toggle arm including a back portion disposed in the enclosure behind the cover, manipulation of the toggle arm moving the back portion between first and second positions, the back portion slidably attached to a bolt one end of which is received in an aperture in the side walls of the enclosure locking the cover to the enclosure. One embodiment of the invention includes a plurality of combination faux switches and sliding bolts such that a locking combination may consist of any combination of the switches appearing to be in “off” or “on” positions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- E05B Class
- 921 Applications Filed
- 521 Patents Issued To-Date
- 56.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 7, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2035 |
